ASCO 8030G003AC115/50D

copy to clipboard

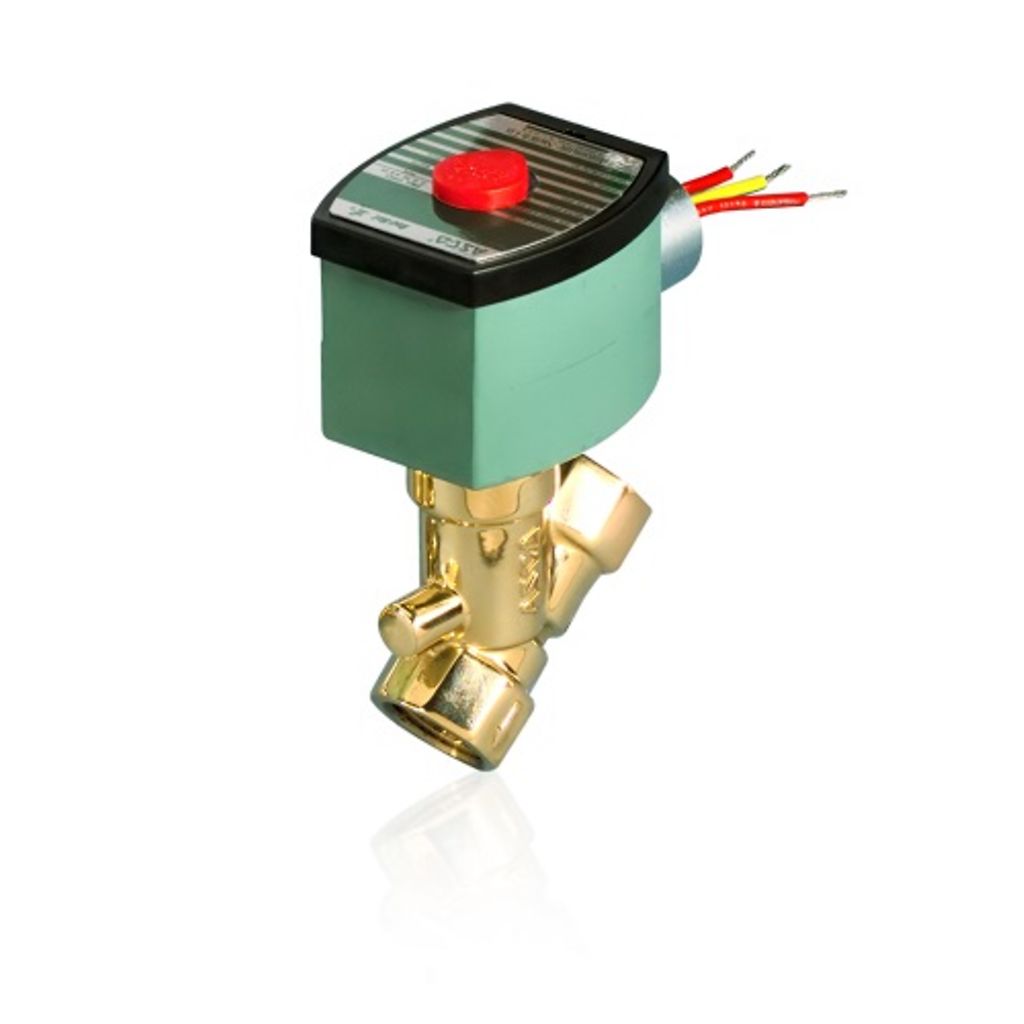

ASCO 8030G003AC115/50D Solenoid Gas Valve, Normally Closed, 3/4" Pipe Size, 115/50vac, Brass

enlarge
enlarge
× This image is for a similar product but it will differ in size, color and/or other attributes.
ASCO 8030G003AC115/50D Solenoid Gas Valve, Normally Closed, 3/4" Pipe Size, 115/50vac, Brass
More from ASCO Valve
Price: $900.00 USD
Ships From
Comments (Optional)
For quantities beyond the "In Stock" above, the item(s) ships within 14 business days.

1-844-809-3667

Sales
Technical Support
Product Description:
ASCO 8030G003AC115/50D Solenoid Gas Valve, Normally Closed, 3/4" Pipe Size, 115/50vac, Brass

The ASCO Series 030 is a direct acting low-pressure solenoid valve with up to 15 psi (1 Bar) maximum differential. Valves available in brass or stainless steel, normally open or normally closed and pipe sizes 3/8-inch thru 3/4. They are widely used for dispensing, collating, vacuum holding, tank draining and gas shutoff applications. The normally open version is well suited for gas venting.

  • Solenoid Gas Valve
  • Body Material: Brass
  • Flow (Cv) / Flow (Kv): 5.00 / 4.33
  • Function: 2 way - 2/2 Normally Closed
  • Pipe/Port Type & Size: NPT 3/4
  • Valve Actuation: Solenoid - Direct Acting
  • Product Weight: 2.40 lbs
  • Coil Class: FT
  • Min to Max Ambient Temperature: 32 - 125 °F
  • Min to Max Fluid Temperature: 32 - 180 °F
  • Orifice Size: 3/4 in
  • Voltage & Frequency: 115 Volts AC with 50 Hz
  • Watt Rating: 10.1 W
  • Lead Length: 18 inch
  • Holding Current (VA): 25
  • Seating Elastomer: NBR
  • Mounting Direction: Any
  • Product Weight: 2.40 lb
  • Packing & Sold as: Each.
  • Note: Unit of measure is Each. When you buy a quantity of 1 you will get one piece. Price is for one each.
