ARROW S1250

copy to clipboard

ARROW S1250 Rim Exit Device

enlarge
enlarge
× This image is for a similar product but it will differ in size, color and/or other attributes.
ARROW S1250 Rim Exit Device
More from Arrow
Price: $346.14 USD
Ships From
Comments (Optional)
In Stock (Minimums Apply):
For quantities beyond the "In Stock" above, the item(s) ships in 1 business day.

1-844-809-3667

Sales
Technical Support
Product Description:
ARROW EXIT DEVICET
Arrow exit devices are designed and manufactured to meet emergency egress codes and ADA requirements. Ourextensive offering of trim design as well a operating functionsmake Arrow panic hardware the specifier's choice for any application.
Chassis & Cover - Non-ferrous alloy
End caps - Metal
Doors - 1-3/4" (44.45mm) thick wood or hollow metal 4-1/2" (114.3mm) minimum stile 4-5/8" for fire-labeled devices
Handing - Reversible
Dogging - Allen-type key standard, cylinder available.
Top/Bottom Bolts/ Latchbolt 3/4" (19.05mm) throw, stainless steel
Throughbolts -Order separately
Rail Assembly - Steel
Rail Size - Furnished standard for doors up to 36", can be cut down to accommodate 32" doors. Alternate rail sizes available for narrow or Alternate rail sizes available for narrow or wide doors wide doors
Rods - N/A
Finishes - AL, BRZ, LBZ, SS (sprayed finishes)
FUNCTIONS
01: Passage
08: Dummy–Knob only.
12: Storeroom–Key retracts latch, only removable when locked.
17: Classroom–Key locks/unlocks outside knob/lever.
CERTIFICATION
• ANSI/BHMA A156.3, Grade 1
• Underwriters Laboratories (UL and CUL) listed for accidoors, Prefix “F” before part number.
• Made in the USA.

dispensers

toilet dispenser

toilet

Questions ?

CALL: 877-631-9411

Questions and Answers
Q: what is the size of the dogging key for the S1250
A: 7/32" and can be purchased here:

Click Here

Is there a follow up question that we can perhaps attempt to answer? We take pride in our technical expertise, as we know it separates us from our competition, so don't hesitate to ask.

Please reply to this email or contact our sales department here:

Click Here

if we can assist you by answering further questions or with entering this order and please let us know if there is anything else we can help with.

Q: I need to order (1) Arrow S1250 Rim Panic. Needs with 'Classroom' function/Schlage C Keyway & Ext Trim in Saturn Lever. Do you offer all of this? How do I order in this specific format?
A: The exterior trim you are searing for, to be used with the ARROW S1250 Rim Exit Device, is the Arrow SRX87-26D-KD-CS Exit Trim-Classroom X Schlage C Kwy ans can be reviewed here:

Is there a follow up question that we can perhaps attempt to answer? We take deep pride in our technical expertise, as we know it separates us from our competition, so don't hesitate to ask.

Please reply to this email or contact our sales department here:

Click Here

if we can assist you by answering further questions or with entering this order and please let us know if there is anything else we can help with.

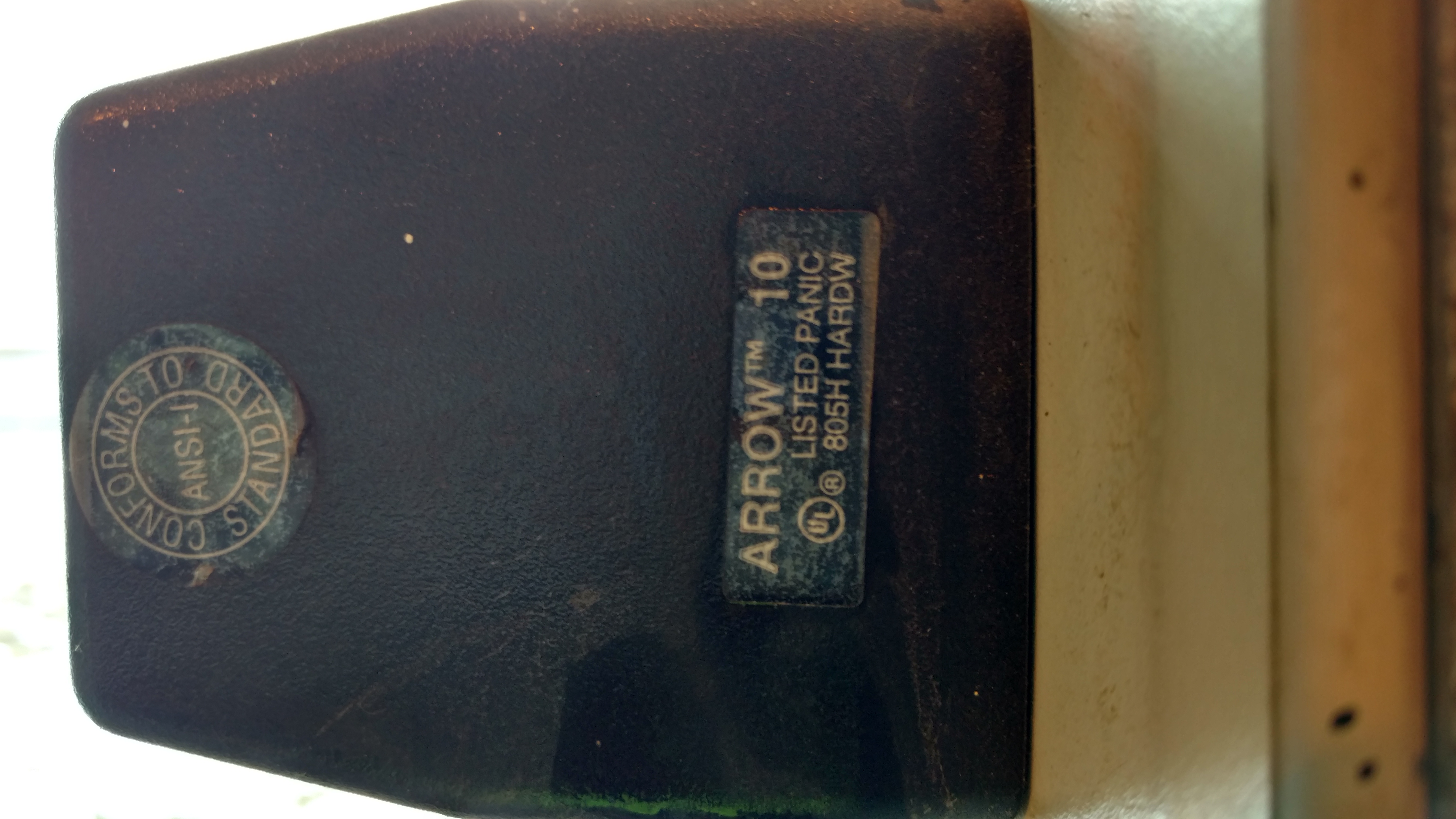

Q: Please identify this unit and tell me if it is Grade 1, 2, or 3.

Image 1

A: We have identified this unit as an old S1200 unit. It is ANSI/BHMA A156.3, Grade 1.

Is there a follow up question that we can perhaps attempt to answer? We take pride in our technical expertise so don't hesitate to ask.

Please contact us here.

(Required, used to email you once question is answered.)
