Arrow MK-08-BD
Arrow MK-08-BD Single Dummy Trim Function Cylinder Lock
×
This image is for a similar product but it will differ in size, color and/or other attributes.
×
This product review video is for a similar product but it will differ in size, color and/or other attributes.
Price:
$
56.22 USD
In Stock Ready for Shipment
1. Select Finish
3 Polished Brass
26D Satin Chrome
2. Select Hand
LH Left Hand
RH Right Hand
LHR Left Hand Reverse
RHR Right Hand Reverse
Comments
(Optional)
ADD TO CART
In Stock (Minimums Apply
):
For quantities beyond the "In Stock" above, the item(s)
ships in 2-3 business days.
Check Inventory
Request Quote
No Minimum
There is no minimum quantity required for this product for quantities up to the level listed below.
Minimum Order Levels Apply
You must order a total of $100.00 worth of product from Arrow to place an order.
Check Inventory Levels
Enter your email address and we will check with all available sources and get back to you with exact inventory levels and estimated shipping times.
Qty. Needed:
Request Quote
Enter the qty needed and we will generate a quote and save your order in our system.
You will not be charged and we will not fulfill the order.
Qty. Needed:
+ Add to My Wish List
1-844-809-3667
Sales
sales@absupply.net
Technical Support
tech@absupply.net
Product Description:

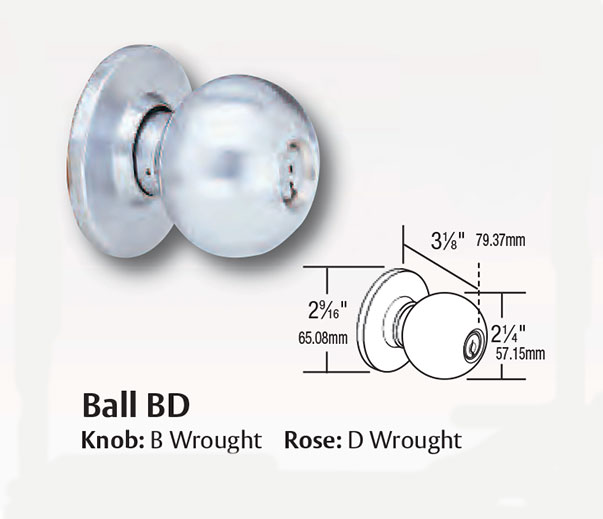

MK Series Cylindrical Lock with Ball Knob and D Rose
Function
: Single Dummy Trim - Rigid trim for one side of door only. Used as pull or to match active trim.
Handing
:
Reversible.
Door Thickness
: 1-3/8" (34.92 mm) to 1-3/4" (44.45 mm).
Backset
: 2-3/8" (60.32 mm) standard. 2-3/4" (69.85 mm), 3-3/4" (95.25 mm) and 5" (127 mm) available.
Lock Chassis:
Cold rolled steel with zinc dichromate finish for corrosion resistance. Requires standard 2-1/8" (53.97 mm) bore through door.
Latch:
Brass with 1/2" (12.7 mm) throw. Latch housing is steel, with zinc dichromate finish for corrosion resistance. 7/8" (22.225 mm) bore in edge of door is required.
Latch Front:
Brass or bronze. Standard faceplate for 2-3/8" (60.32 mm) backset measures 2-1/4" (57.15 mm) x 1" (25.40 mm), with a flat front, for 2-3/4" (69.85 mm) standard faceplate measures 2-1/4" (57.15 mm) x 1-1/8" (28.57 mm), with a beveled front 1/8" (3.17 mm) in 2" (50.8 mm).
Strike:
Brass, bronze or stainless steel. Standard “T” strike measures 2-3/4" (69.85 mm) x 1-1/8" (28.57 mm). All strikes have a 1-1/4" (31.75 mm) lip to center dimension.
Cylinder, Standard:
Solid brass 6 pin cylinder with Arrow“ A” keyway, keyed to 5 pin for stock. Can be masterkeyed, grandmaster keyed and construction masterkeyed. Supplied with two 5 pin brass keys for stock.
Certification & Compliance:
ANSI/BHMA A125.2, Series 4000, Grade 2
• Underwriters Laboratories (UL and CUL) listed for use on 3 hour, A label single swinging doors
• Federal Specifications FF-H-106C, Series 160
Dimensions
