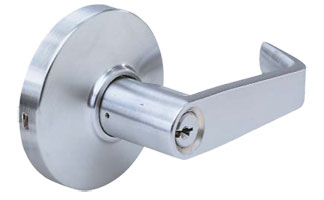

Arrow L-11-SR Entrance Function Cylindrical Lock

enlarge
enlarge
× This image is for a similar product but it will differ in size, color and/or other attributes.
Arrow L-11-SR  Entrance Function Cylindrical Lock
More from Arrow
Price: $268.90 USD
Ships From
Comments (Optional)
In Stock (Minimums Apply):
Standard - ships in 2-3 business days.

1-844-809-3667

Sales
Technical Support
Product Description:
arrow logo L Series Cylindrical Lock with Sierra Lever and R Rose
  • Function: Entrance/Office Doors - Latch by lever either side except when pushing turn-button locks outside lever. Unlocked by
    turning inside lever or using key outside. Pushing and turning inside button keeps outside lever locked. Key will retract latch.
  • Keyway: Arrow A.
  • Handing: Non handed.
  • Door Thickness: 1-3/8" (34.92 mm) to 1-3/4" (44.45 mm) standard.
  • Backset: 2-3/4" (69.85 mm) backset standard; 2-3/8" (60.32 mm) available.
  • Lock Chassis: Cold rolled steel with zinc dichromate finish for corrosion resistance. Requires standard 2-1/8" (53.97 mm) bore through door.
  • Latch: Brass or bronze with 1/2" (12.7 mm) throw. Latch housing is steel, zinc dichromate finish for corrosion resistance.
  • Latch Front: Brass, bronze. 2-1/4" (57.15 mm) x 1-1/8" (28.57 mm), beveled UL latches are standard. Available with 1" (25.40 mm) flat fronts for 2-3/8" (60.32 mm) backset, or 1" (25.40 mm) beveled fronts for 2-3/4" (69.85 mm) backset.
  • Strike: Brass, bronze or stainless steel. #300 and #306 strikes measure 1-1/4" (31.75 mm) lip to center. #302 and #303 strikes measure 1-3/16" (30.16 mm) lip to center. Strike boxes are available.
  • Cylinder, Standard: Solid brass, 6 pin cylinder with Arrow “A” keyway standard; pinned 5 for stock.
  • Certification & Compliance:
    • ANSI/BHMA A156.2, Series 4000, Grade 2.
    • Underwriters Laboratories (UL and CUL) listed for use on 3 hour, A label doors.
    • ANSI A117.1 Accessibility Code.
    • California State Reference Code–for levers returning to within 1/2" (12.7mm) of door surface.
Dimensions
