Arrow E-64-IC-LC Less Core

Name: Arrow E-64-IC-LC Classroom Function Deadbolt Less Core
Brand: Arrow
SKU: Arrow E-64-IC-LC Less Core
Price: 94.05 USD

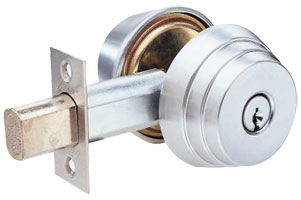

Arrow E-64-IC-LC Classroom Function Deadbolt Less Core

× This image is for a similar product but it will differ in size, color and/or other attributes.

Price: $94.05 USD

Comments (Optional)

In Stock (Minimums Apply):

For quantities beyond the "In Stock" above, the item(s) ships in 2-3 business days.

Sales

Technical Support

Product Description:

E Series Deadbolt Less Core

Function: Classroom - Dead bolt operated by key from outside. Turn piece retracts dead bolt but does not project it.
Core: Not included.
Handing: All functions are reversible.
Cylinder, Standard: Solid brass, Arrow “A” deyway, drilled for 6 pins, pinned to 5 for stock. Supplied with two keys.
Housing: Two-piece housing, with free spinning outer ring to prevent wrenching. Concealed mounting screws standard on double cylinder functions.
Thru-bolting: Supplied with two 1/4" (6.35 mm) steel thru-bolts.
Deadbolt: 1" (25.40 mm), solid steel deadbolt throw with hardened steel pin insert.
Backset: 2-3/8" (60.32 mm), 2-3/4" (69.85 mm).
Deadbolt fronts: 2-1/4" (57.15 mm) x 1" (25.40 mm) standard for 2-3/8" (60.32 mm) backset, 2-1/4" (57.15 mm) x 1-1/8" (28.57 mm) standard for 2-3/4" (69.85 mm) backset.
Doors: 1-3/8" (34.925 mm) to 1-3/4" (44.45 mm) thick standard.
Strikes: Supplied standard with two strikes: #345–security strike for steel frame/ #346–security strike for wood frame.
Certification & Compliance:
• ANSI A156.5, Auxiliary Locks, Grade 2.
• Underwriters Laboratories (UL and CUL) listed for use on A label or lesser doors when used in conjunction with a rated primary latching device.
