Home > Locksets & Deadbolts > Aluminum Door Locks > Deadlatches > Heavy Duty > Arrow D-62-10-LC

Arrow D-62-10-LC

Name: Arrow D-62-10-LC Double Cylinder Function Deadbolt Less Cylinder - Satin Bronze
Brand: Arrow
SKU: Arrow D-62-10-LC
Price: 139.07 USD

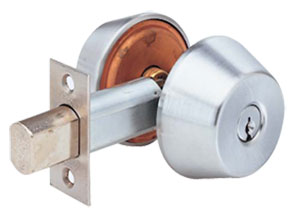

Arrow D-62-10-LC Double Cylinder Function Deadbolt Less Cylinder - Satin Bronze

× This image is for a similar product but it will differ in size, color and/or other attributes.

Arrow D-62-10-LC Double Cylinder Function Deadbolt Less Cylinder - Satin Bronze

Price: $139.07 USD

Comments (Optional)

ADD TO CART

In Stock (Minimums Apply):

For quantities beyond the "In Stock" above, the item(s) ships in 2-3 business days.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:


Arrow D-62-10-LC Double Cylinder Function Deadbolt Less Cylinder - Satin Bronze

Function: Double Cylinder - Dead bolt operated by key from both sides. Keyway: Arrow A. Housing: Two-piece housing, with free-spinning outer ring to prevent wrenching. Concealed mounting screws are standard on double cylinder functions. Less Cylinder Finish: Satin Bronze Deadbolt: 1" (25.40 mm), solid steel deadbolt throw with hardened steel pin. Backset: 2-3/8" (60.32 mm), 2-3/4" (69.85 mm). Deadbolt fronts: 2-1/4" (57.15 mm) x 1" (25.40 mm) standard for 2-3/8" (60.32 mm) backset, 2-1/4" (57.15 mm) x 1-1/8" (28.57 mm) standard for 2-3/4" (69.85 mm) backset. Doors: 1-3/8" (34.925 mm) to 1-3/4" (44.45 mm) thick standard. Strikes: Supplied standard with two strikes: #345–security strike for steel frame/ #346–security strike for wood frame. Handing: All functions are reversible. Cylinder, Standard: Solid brass, Arrow “A” keyway, drilled for 6 pins, pinned to 5. Supplied with two keys. Certification & Compliance: • ANSI A156.5, Auxiliary Locks, Grade 1 • Underwriters Laboratories (UL and CUL) listed for use on A label or lesser doors when used in conjunction with a rated primary latching device.	Cut Sheet Template
