Arrow BM-11-VL-LC-03

Name: Arrow BM-11-VL-LC-03 Apartment Function Mortise Lever Lock V Lever L Rose Less Cylinder - Bright brass
Brand: Arrow
SKU: Arrow BM-11-VL-LC-03
Price: 707.93 USD

Arrow BM-11-VL-LC-03 Apartment Function Mortise Lever Lock V Lever L Rose Less Cylinder - Bright brass

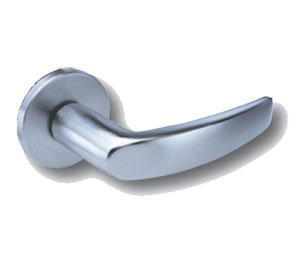

× This image is for a similar product but it will differ in size, color and/or other attributes.

Arrow BM-11-VL-LC-03 Apartment Function Mortise Lever Lock V Lever L Rose Less Cylinder - Bright brass

Price: $707.93 USD

Comments (Optional)

ADD TO CART

In Stock (Minimums Apply):

For quantities beyond the "In Stock" above, the item(s) ships in 2-3 business days.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

Arrow BM-11-VL-LC-03 Apartment Function Mortise Lever Lock V Lever L Rose Less Cylinder - Bright brass

Function: Apartment - Latchbolt by knob/lever either side except when outside knob/lever is locked by stopworks in lock front, or when the deadbolt is projected. Deadbolt operates by key outside and turnpiece inside. Turning inside knob/lever will retract latchbolt and deadbolt simultaneously.
Handing: Field reversible. The lockset can be re-handed without disassembling the lock case.
Less Cylinder
Finish: 03 - Bright brass
Door Thickness: 1-3/4" (4mm) standard.
Backset: 2-3/4" (70mm).
Lockcase: Heavy gauge steel, with zinc dichromate finish for corrosion resistance. 5-7/8" (149mm) x 4" (102mm) x 15/16" (24mm).
Armored Front: Heavy gauge steel, 8" (203 mm) x 1-1/4" (32mm) x 3/32" (2mm). Accommodates flat doors and doors beveled 1/8" (3mm) in 2" (51mm).
Faceplate: Wrought brass or bronze, attached by machine screws to lockcase front.
Latchbolt: Stainless steel, 2 piece mechanical with anti-friction insert. 5/8" (16mm) x 1" (25mm) x 3/4" (19mm) throw.
Hub: nickel steel, 5/16" (8mm) and 9/32".
Spacing: Center to center, hub to cylinder: 3-5/8" (92mm).
Strike: Wrought brass or bronze, ANSI straight lip standard, 4-7/8" (124mm) x 1-1/4" (32mm) 1-1/8" (29mm) lip to center.
Warranty: Five-year limited.
Certification and Compliance:
- ANSI Meets A156.13 Series 1000, Operational Grade 1.
- Federal Meets FF-H-106C.
- UL/CUL Positive Pressure All locks listed for A Label and lesser class doors, 4" (101.6mm) x 10" (254mm) single or 8" (203mm) x 10" (254mm) pair. Letter F and UL symbol on armored front indicate listing
- California State Reference Code All levers with returns comply; levers return to within 1/2" (12.7mm) of door face
