ARROW 430

Name: ARROW 430 Exit Device
Brand: Arrow
SKU: ARROW 430
Price: 1030.96 USD

ARROW 430 Exit Device

× This image is for a similar product but it will differ in size, color and/or other attributes.

Price: $1,030.96 USD

Comments (Optional)

ADD TO CART

In Stock (Minimums Apply):

For quantities beyond the "In Stock" above, the item(s) ships in 1 business day.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

ARROW EXIT DEVICE

Model 330 - Auto relatching. Red LED indicator flashes violation occurs. light continues ro flash beyond alarm cycle and can only be turned off by the inside key. One chasis will accept all available trim options. Unit must be activated to tast available battery power. Low battery alert feateure causes unit to chirp intermittently to indicate low battery power.
Chassis–Chassis and cover made from a non-ferrous alloy, 12-3/4" (323.85 mm) x 2" (50.8 mm) x 2-5/8" (66.67 mm). Touchbar–Rolled steel touchbar assembly to fit 30" (762.0 mm) to 36" (914.40 mm) door furnished standard. Bars to fit 24" (609.60 mm) to 30" (762.0 mm) and 37" (939.80 mm) to 48" (1219.20 mm) available. Can be cut to size in the field. Specify door width. Power/Electronics–9 volt battery powered. Modern, solid state electronics. Latch–3/4" (19.05 mm) latchbolt monitored by an electronic sensor switch. Any unauthorized movement of the latchbolt will cause the unit to go into alarm. Doors–for outward swinging doors 1-3/4" (44.45 mm) thick with 4" (101.60 mm) minimum stile. Horn/Alarm–Piercing, dual frequency pulsating horns. Rated for 90 decibels at 6 feet. Alarm sounds for two minutes then, shuts down and rearms automatically. A 15 second delay feature allows authorized egress without sounding alarm. Cylinders–Inside cylinder operation to arm or disarm unit using a 1-1/8" (28.57 mm) mortise cylinder. (Order cylinder separately). Hand–Reversible. Unit is packed RHRB.
FEATURES
Model F420–Fire rated. Model 420–Red LED indicator flashes when violation occurs. Light continues to flash beyond alarm cycle and can only be turned off by the inside key. Units set up to accept outside cylinder operation as standard. One chassis will accept all available trim options. Unit must be activated to test available battery power. Model F430–Fire rated. Model 430–Contains same features of the 420. Low battery alert feature causes unit to chirp intermittently to indicate low battery power.
CERTIFICATION AND COMPLIANCE
UL listed for exit hardware. Also available UL rated for fire exit hardware (Prefix “F” to model number). Designed to meet ANSI 156.3-1984 and A117.1-1980 for Accessibility Standards. Packed - 1 each.

toilet dispenser

Questions?

sales@absupply.net

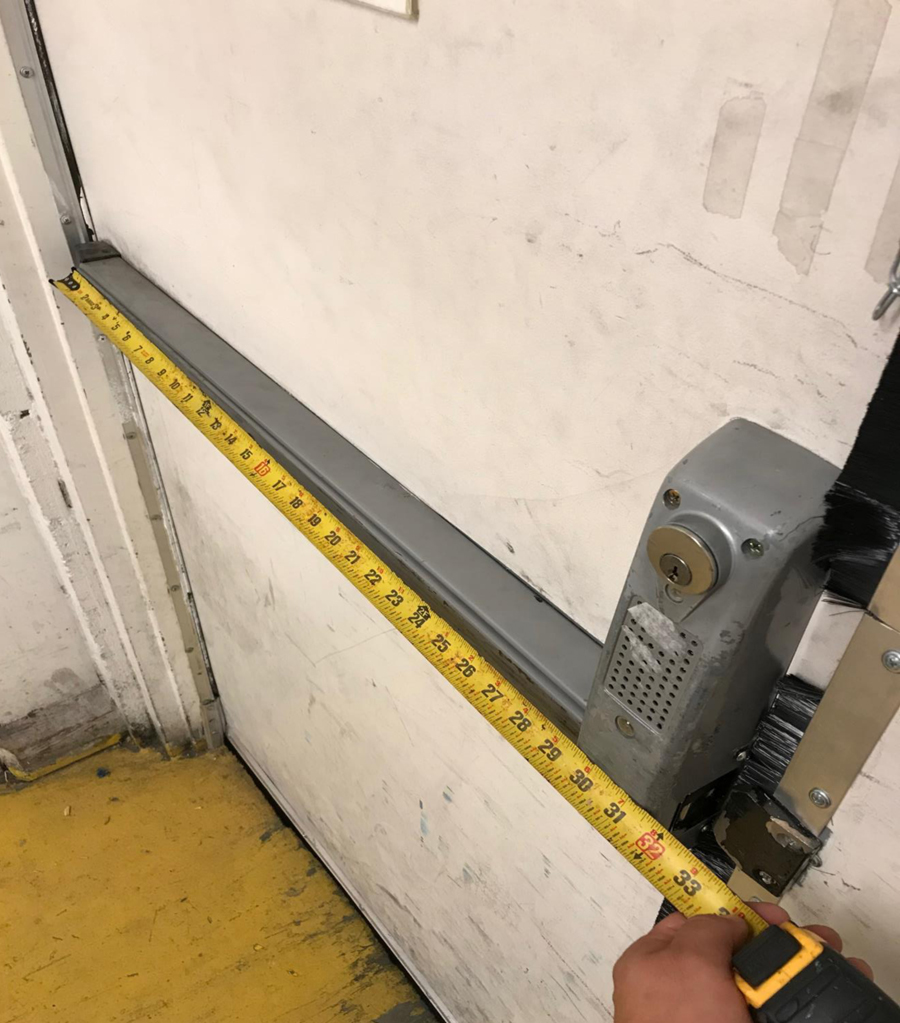

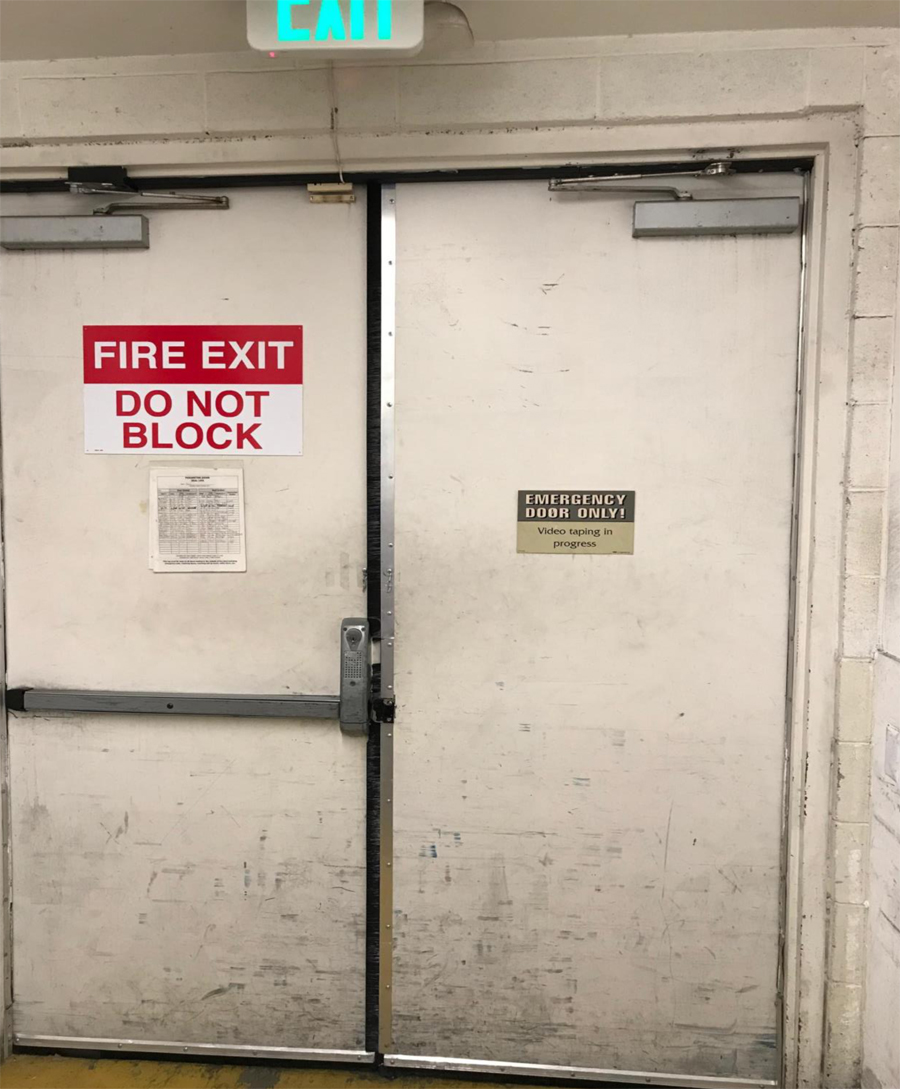

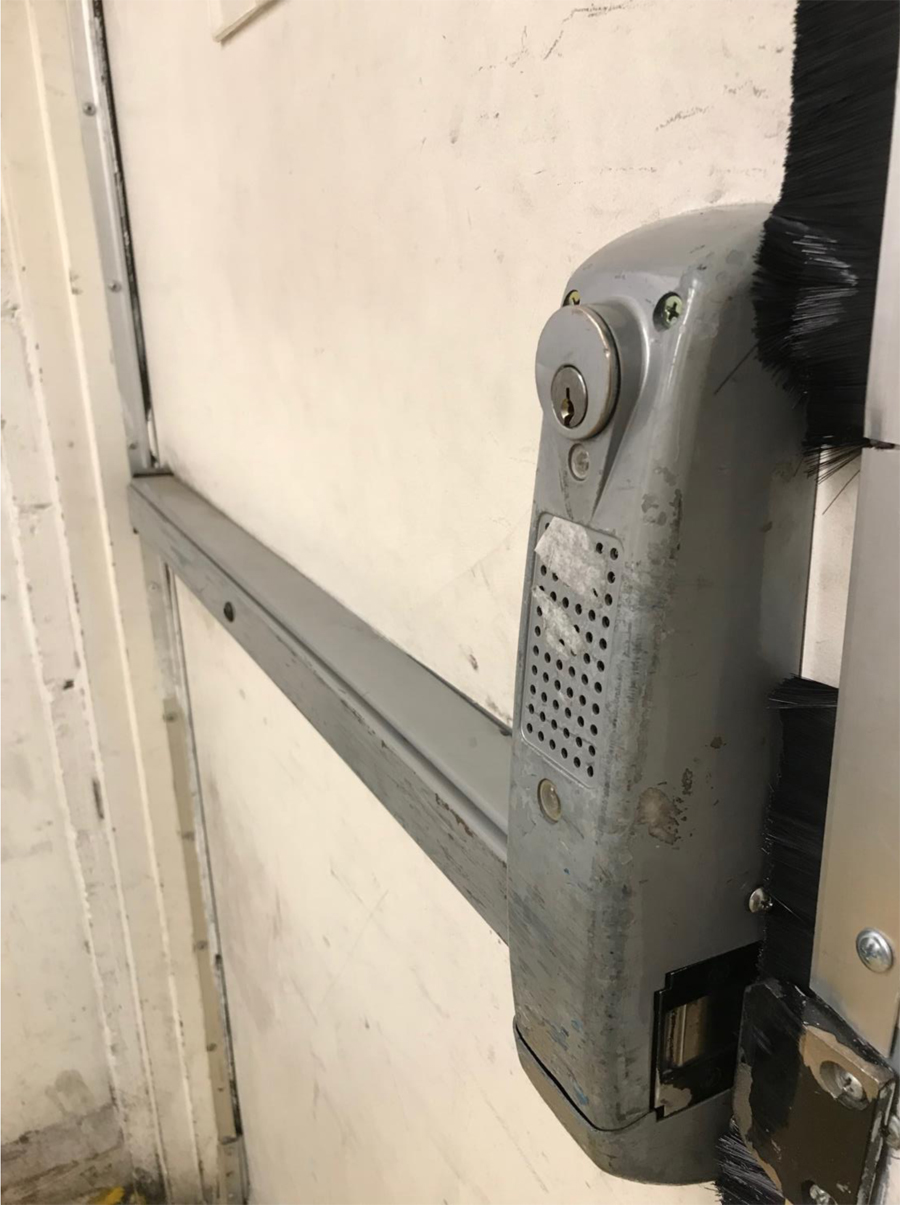

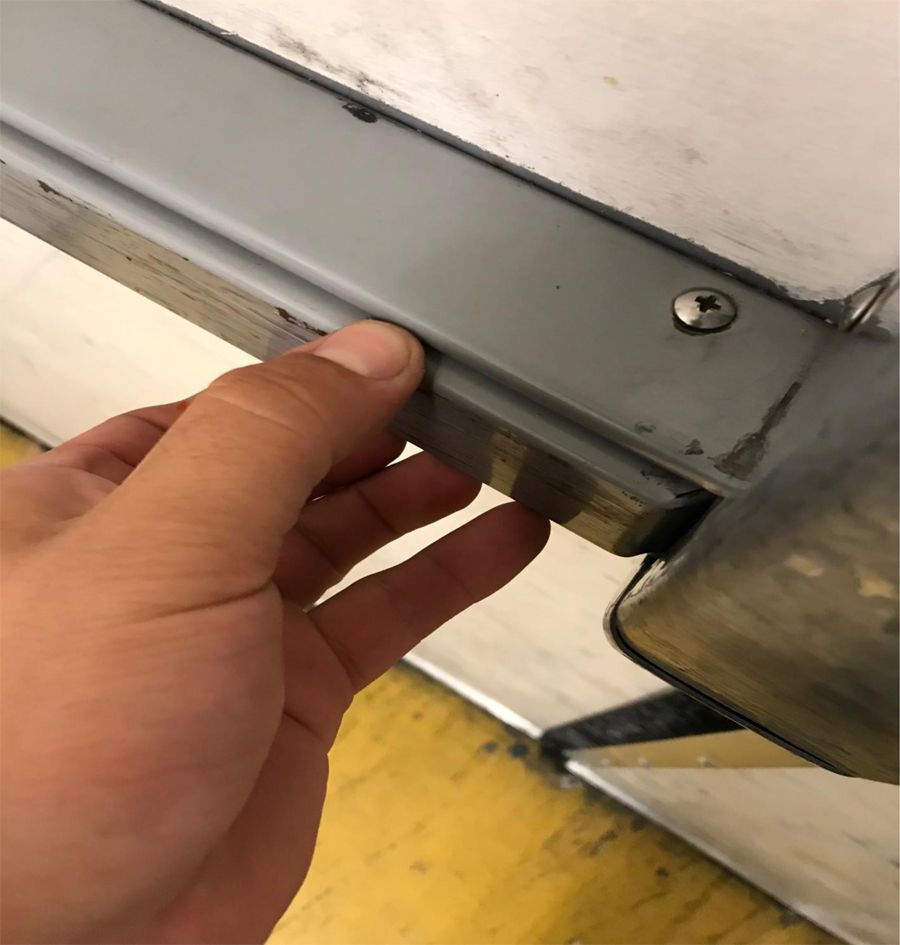

Customer Supplied Photos

(Click to Enlarge)

Questions and Answers

Q: Please email me a template for a metal door and a metal frame application for the Arrow 400 device

A: Here is the Template as received from Arrow:

Download File

Is there a follow up question that we can perhaps attempt to answer? We take deep pride in our technical expertise, as we know it separates us from our competition, so don't hesitate to ask.

Please reply to this email or contact our sales department here:

Click Here

if we can assist you by answering further questions or with entering this order and please let us know if there is anything else we can help with.

(Required, used to email you once question is answered.)
