Arrow 3880 SL08
Arrow 3880 SL08
Arrow 3880 SL08 Rim Exit Device
×
This image is for a similar product but it will differ in size, color and/or other attributes.
Price:
$
1,921.51 USD
In Stock Ready for Shipment
1. Select Bar Finish
3 Polished Brass (Add $31.06)
4 Satin Brass (Add $31.06)
10 Satin Bronze
10B Oil Rubbed Bronze
32 Polished Stainless Steel (Add $31.06)
32D Satin Stainless Steel
2. Select Trim Finish
3 Polished Brass (Add $15.60)
4 Satin Brass (Add $15.60)
10 Satin Bronze
10B Oil Rubbed Bronze
26 Polished Chrome (Add $15.60)
26D Satin Chrome
32D Satin Stainless Steel
3. Select Hand
LH Left Hand
RH Right Hand
LHR Left Hand Reverse
RHR Right Hand Reverse
Comments
(Optional)
ADD TO CART
In Stock (Minimums Apply
):
For quantities beyond the "In Stock" above, the item(s)
ships in 40-50 business days.
Check Inventory
Request Quote
No Minimum
There is no minimum quantity required for this product for quantities up to the level listed below.
Minimum Order Levels Apply
You must order a total of $100.00 worth of product from Arrow to place an order.
Check Inventory Levels
Enter your email address and we will check with all available sources and get back to you with exact inventory levels and estimated shipping times.
Qty. Needed:
Request Quote
Enter the qty needed and we will generate a quote and save your order in our system.
You will not be charged and we will not fulfill the order.
Qty. Needed:
+ Add to My Wish List
1-844-809-3667
Sales
sales@absupply.net
Technical Support
tech@absupply.net
Product Description:
3880 Series Rim Exit Device With SL08 Outside Trim
Function:
Entry by knob/lever; outside key locks, unlocks knob/lever.
Chassis:
Non-ferrous alloy.
Chassis and end covers:
Cold drawn brass, bronze or stainless steel.
Door Type:
Wood or metal.
Door Thickness:
1-3/4" (44.45 mm) standard up to 2-1/4" (57.15 mm) available.
Mounting:
Supplied with wood and machine screws. Available with thru bolts.
Handing:
Handed. Specify LHRB or RHRB.
Dogging:
Allen type standard. Available with cylinder dogging (prefix “CD”)
Top/Bottom Bolts:
N/A
Latchbolt:
Stainless steel, 3/4" (19.05 mm) throw.
Rail:
Roll-formed brass, bronze or stainless steel.
Rail projection:
3-1/4" (82.55 mm) maximum.
Opening Height:
N/A
Fire Exit Hardware-up to:
4' x 8' (single door) & 8' x 8' (pairs of door) with S21 mullion
Handing Chart
Detailed Image

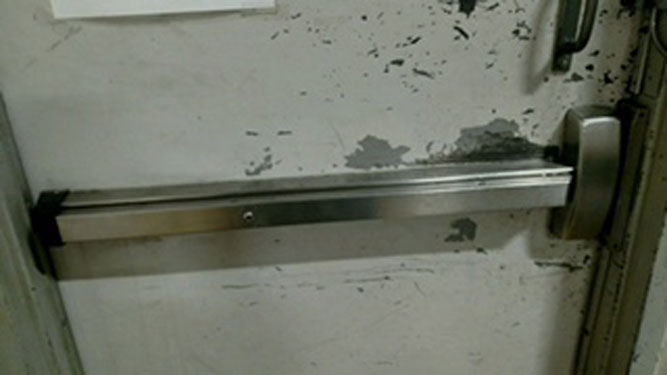

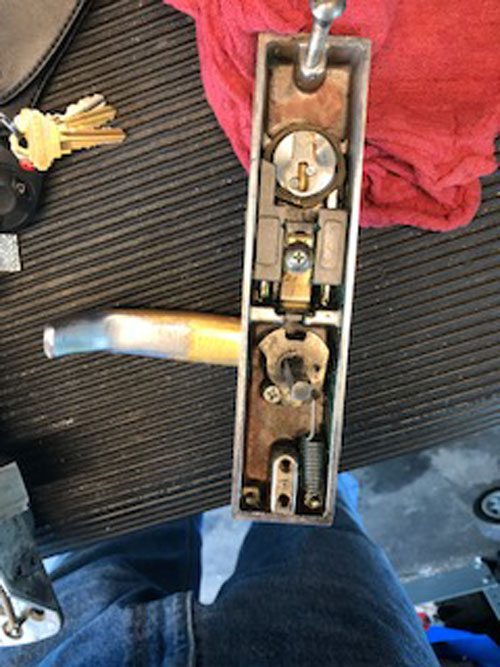

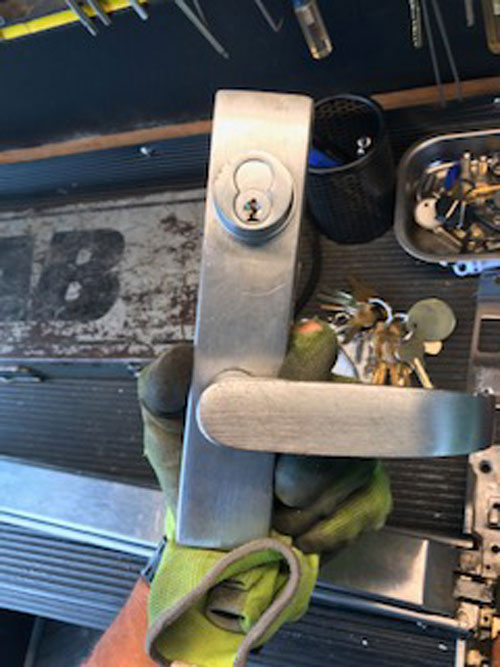

Customer Supplied Photos
(Click to Enlarge)
(Click to Enlarge)
(Click to Enlarge)
(Click to Enlarge)
Additional Videos:
Structure of the Arrow 3000 series exit device part numbers
