Arrow 1903 SP03
Arrow 1903 SP03

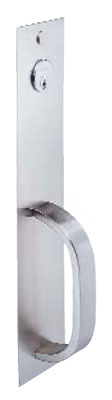

Arrow 1903 SP03 Mortise Exit Device
×
This image is for a similar product but it will differ in size, color and/or other attributes.
×
This product review video is for a similar product but it will differ in size, color and/or other attributes.
Price:
$
1,916.78 USD
In Stock Ready for Shipment
1. Select Bar Finish
3 Polished Brass (Add $275.29)
4 Satin Brass (Add $275.29)
10 Satin Bronze
10B Oil Rubbed Bronze (Add $95.84)
26 Polished Chrome (Add $275.29)
26D Satin Chrome (Add $95.84)
2. Select Trim Finish
3 Polished Brass (Add $20.65)
4 Satin Brass (Add $20.65)
10 Satin Bronze
10B Oil Rubbed Bronze
26D Satin Chrome
32 Polished Stainless Steel (Add $20.65)
32D Satin Stainless Steel
3. Select Hand
LH Left Hand
RH Right Hand
LHR Left Hand Reverse
RHR Right Hand Reverse
Comments
(Optional)
ADD TO CART
In Stock (Minimums Apply
):
For quantities beyond the "In Stock" above, the item(s)
ships in 2-3 business days.
Check Inventory
Request Quote
No Minimum
There is no minimum quantity required for this product for quantities up to the level listed below.
Minimum Order Levels Apply
You must order a total of $100.00 worth of product from Arrow to place an order.
Check Inventory Levels
Enter your email address and we will check with all available sources and get back to you with exact inventory levels and estimated shipping times.
Qty. Needed:
Request Quote
Enter the qty needed and we will generate a quote and save your order in our system.
You will not be charged and we will not fulfill the order.
Qty. Needed:
+ Add to My Wish List
1-773-809-3667
Sales
sales@absupply.net
Technical Support
tech@absupply.net
Product Description:
1903 Series Mortise Exit Device With SP03 Outside Trim
Function:
Entry by trim when latchbolt retracted by key. Key removable only when trim is locked.
Chassis:
Pressure formed non-ferrous alloy.
Chassis and end covers:
Cold drawn brass, bronze or stainless steel.
Door Thickness:
1-3/4" (44.45 mm) standard, available for thick doors
Handing:
Handed. Specify LHRB or RHRB.
Dogging:
Allen type only.
Top/Bottom Bolts:
N/A
Latchbolt:
Brass, 3/4" (19.05 mm) throw.
Crossbar arms:
Forged brass and stainless steel
Crossbar:
1" (25.40 mm) brass, bronze and stainless steel tubing, .062" (1.5875 mm) thick
Crossbar projection:
4-1/2" (114.3 mm) neutral, 2-3/4" (69.85 mm) depressed.
Opening Height:
N/A
Fire Exit Hardware-up to:
4' x 7'2" single door - 8' x 7'2" pairs of doors (with FS1700)
Certification & Compliance:
ANSI/BHMA A156.3, Grade 1
Underwriters Laboratories (UL and CUL) listed for accidoors, Prefix âFâ before part number.
Made in the USA.
Handing Chart
Detailed Image
