Arrow AM-02-HTHA

Name: Arrow AM-02-HTHA Privacy Function Mortise Lock
Brand: Arrow
SKU: Arrow AM-02-HTHA
Price: 540.76 USD

Arrow AM-02-HTHA Privacy Function Mortise Lock

× This image is for a similar product but it will differ in size, color and/or other attributes.

Arrow AM-02-HTHA Privacy Function Mortise Lock

Price: $540.76 USD

Comments (Optional)

ADD TO CART

In Stock (Minimums Apply):

For quantities beyond the "In Stock" above, the item(s) ships in 2-3 business days.

+ Add to My Wish List

1-773-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

AM Series Privacy Mortise Lock

Function: Privacy - Latchbolt by knob/lever either side, except when outside is locked by turnpiece inside. Outside emergency release or operating from inside unlocks lock. Inside knob/lever retracts both bolts.
Handing: Handed; field reversible. The lockset can be re-handed without disassembling the lock case.
Door Thickness: 1-3/4" (4mm) standard.
Backset: 2-3/4" (70mm).
Lockcase: Heavy gauge steel, with zinc dichromate finish for corrosion resistance. 5-7/8" (149mm) x 4" (102mm) x 15/16" (24mm).
Armored Front: Heavy gauge steel, 8" (203 mm) x 1-1/4" (32mm) x 3/32" (2mm). Accommodates flat doors and doors beveled 1/8" (3mm) in 2" (51mm).
Faceplate: Wrought brass or bronze, attached by machine screws to lockcase front.
Latchbolt: Stainless steel, 2 piece mechanical with anti-friction insert. 5/8" (16mm) x 1" (25mm) x 3/4" (19mm) throw.
Hub: nickel steel, 5/16" (8mm) and 9/32".
Spacing: Center to center, hub to cylinder: 3-5/8" (92mm).
Strike: Wrought brass or bronze, ANSI straight lip standard, 4-7/8" (124mm) x 1-1/4" (32mm) 1-1/8" (29mm) lip to center.
Warranty: Five-year limited.
Certification and Compliance:
- ANSI Meets A156.13 Series 1000, Operational Grade 1.
- Federal Meets FF-H-106C.
- UL/CUL Positive Pressure All locks listed for A Label and lesser class doors, 4" (101.6mm) x 10" (254mm) single or 8" (203mm) x 10" (254mm) pair. Letter F and UL symbol on armored front indicate listing
- California State Reference Code All levers with returns comply; levers return to within 1/2" (12.7mm) of door face

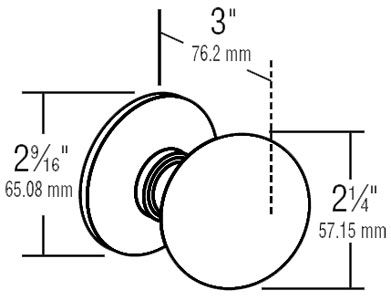

Dimensions

Handing Chart

Questions and Answers

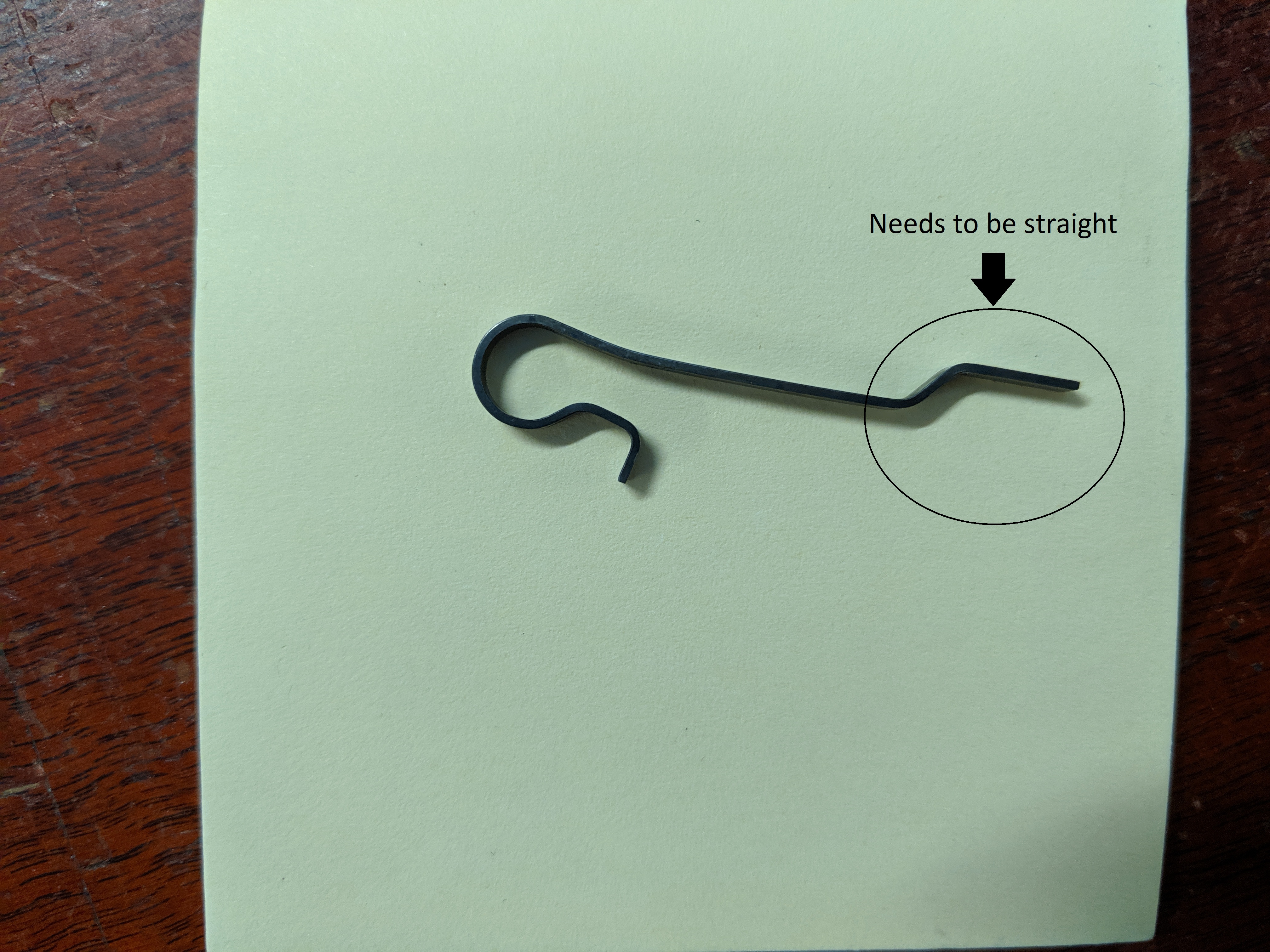

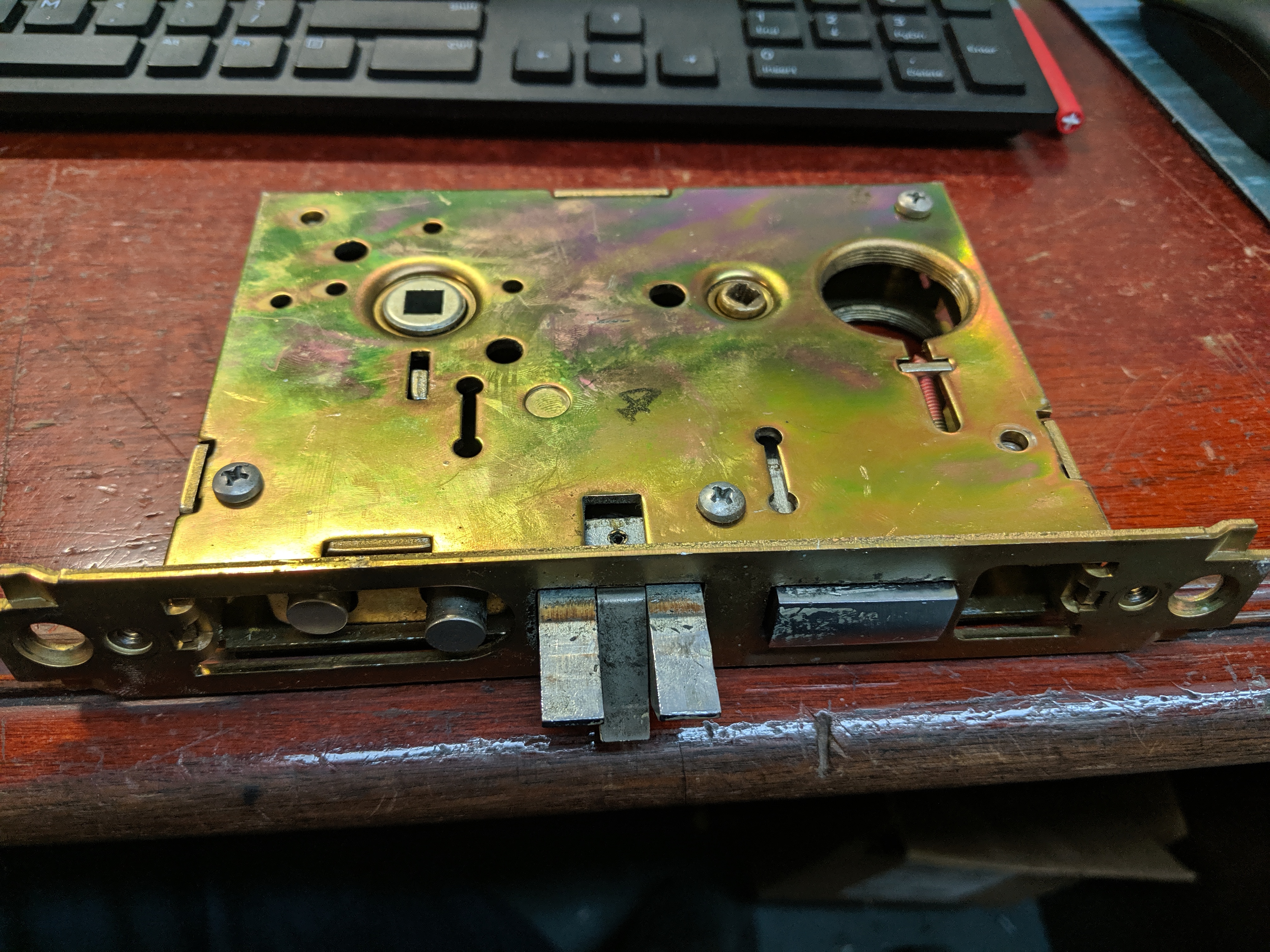

Q: I am looking for a deadbolt spring for “(N41-US3) LOCK ARROW MORTISE”. The lock is from the late 1980’s. I attached a picture of a similar spring(Corbin Russwin Co. 701F22-8 Deadbolt Spring) and a picture of the lock itself. The spring I need has a straight end instead of the bent end. Images as seen here:

View Image

Thanks for your help.

A: I have no way to assist with this hunt for the spring as the manufacturer cannot provide a parts drawing of their mortise locks. Just to confirm I called arrow who has nothing published on parts diagrams of their current lock body nor their former lock body that are available for public review.

I realize that the Corbin Russwin spring that you have found cannot really be altered but you might be able to put it into a vice and bring it flat enough and then under a hammer and an anvil you might be able to make it work well enough. I understand that it's tempered steel however have you attempted to modify a spring that is available?
