Amerex 11983

Name: Amerex 11983 Nozzle - Solid Fuel Charbroiler/Duct - One & One Half (1 1/2) Flow Points Each
Brand: Amerex
SKU: Amerex 11983
Price: 33.27 USD

Amerex 11983 Nozzle - Solid Fuel Charbroiler/Duct - One & One Half (1 1/2) Flow Points Each

× This image is for a similar product but it will differ in size, color and/or other attributes.

Amerex 11983 Nozzle - Solid Fuel Charbroiler/Duct - One & One Half (1 1/2) Flow Points Each

Price: $33.27 USD

Comments (Optional)

ADD TO CART

This item is not in stock and typically ships in 15 business days.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:


Nozzle - Solid Fuel Charbroiler/Duct - One & One Half (1 1/2) Flow Points Each

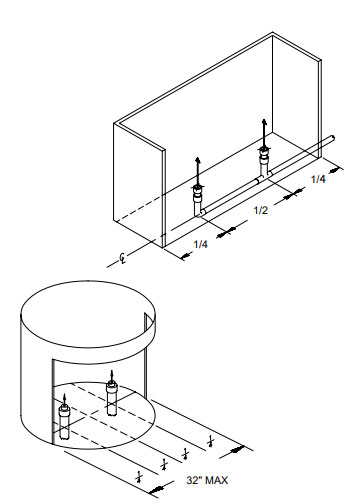

Nozzle - Solid Fuel Charbroiler/Duct - One & One Half (1 1/2) Flow Points Each Amerex System Components The Amerex solid fuel appliance/duct nozzle (P/N 11983) is listed to protect a restaurant cooking exhaust duct of unlimited length and up to 100 perimeter inches (254 cm) or 32 inch diameter (81.2 cm) using two nozzles. The nozzles total three flow points and to properly position the nozzles, a rectangular duct should be divided along its longest side into four equal distances. A circular duct should be divided along its center line into four equal distances. The nozzles are to be placed at one quarter and three quarters position of the duct width (or diameter) with both nozzles on the center line, placed 2 - 8 inches (5.08 – 20.3 cm) into the duct opening and aimed straight up in a vertically run duct.	Product Manual
Parts Diagram Click to Print
