Adams Rite MS1847-02-630

Name: Adams Rite MS1847-02-630 Deadlock for Ultra-narrow Stile Sliding Doors - Stainless Steel Finish
Brand: Adams Rite
SKU: Adams Rite MS1847-02-630
Price: 67.79 USD

Adams Rite MS1847-02-630 Deadlock for Ultra-narrow Stile Sliding Doors - Stainless Steel Finish

× This image is for a similar product but it will differ in size, color and/or other attributes.

Adams Rite MS1847-02-630 Deadlock for Ultra-narrow Stile Sliding Doors - Stainless Steel Finish

Price: $67.79 USD

Comments (Optional)

ADD TO CART

In Stock (Minimums Apply):

For quantities beyond the "In Stock" above, the item(s) ships in 1 business day.

+ Add to My Wish List

1-773-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

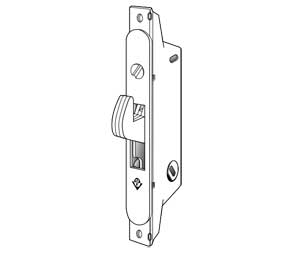

MS1847-02-630 Deadlock for Ultra-narrow Stile Sliding Doors - Stainless Steel Finish

MS1847 Series MS® Deadlock/Latch for ultra-narrow stile siding sliding doors (glass or aluminum) features a self-protecting bolt with adjustable bolt projection.

MS Deadlock/Deadlatch, 45 Deg. Hub Angle
Function: A compact lock designed to fit within very narrow sliding door stiles without compromising the high degree of security these doors need. The sturdy stainless steel bolt has two important features not usually found in sliding door hardware. First, it is adjustable: a full 3/16” lengthening or shortening of bolt projection is possible by turning an exposed screw in the face of the lock. This can compensate for considerable misalignment between door and jamb. Second, the MS1847 bolt is self-protecting: if the door is closed with the bolt in the locked position, the bolt will retract immediately on contact with the jamb, thus preventing damage or accidental lock-out.
Operation: Can be operated by a standard cylinder, so the glass door may be keyed-in with other types of doors. Three hub slot positions allow installation even where jamb and stile design provides severely limited turn clearance.
Finish: 630 - Stainless Steel
Case: Stainless steel, measures 1/2” x 3-3/16” x 1-1/8”.
Anti-lift Bolt: Three-ply laminated stainless steel. Designed to withstand approximately one-half ton force, either horizontal or vertical. Anti-lift bolt stops both door-from-jamb pry bar attacks and attempts to lift the door from its track.
Deadlock Body: Radius
Latch version: Standard Latching; the same stainless steel hookbolt, but spring-loaded for automatic latching, is provided by the MS1847-11 and MS1847-13. All dimensions and available accessories for the MS1847 deadlocks also apply to MS1847 deadlatches.
Standard Package: Case-packed with machines screws for mounting.
Shipping Weight: 1/3 lbs.
Cylinder Pulls, Turns and Trim Strikes are available separately.

Data Sheet

How to Order

Template & Installation Instructions

FACE SHAPE, HUB ANGLE, LOCK OR LATCH

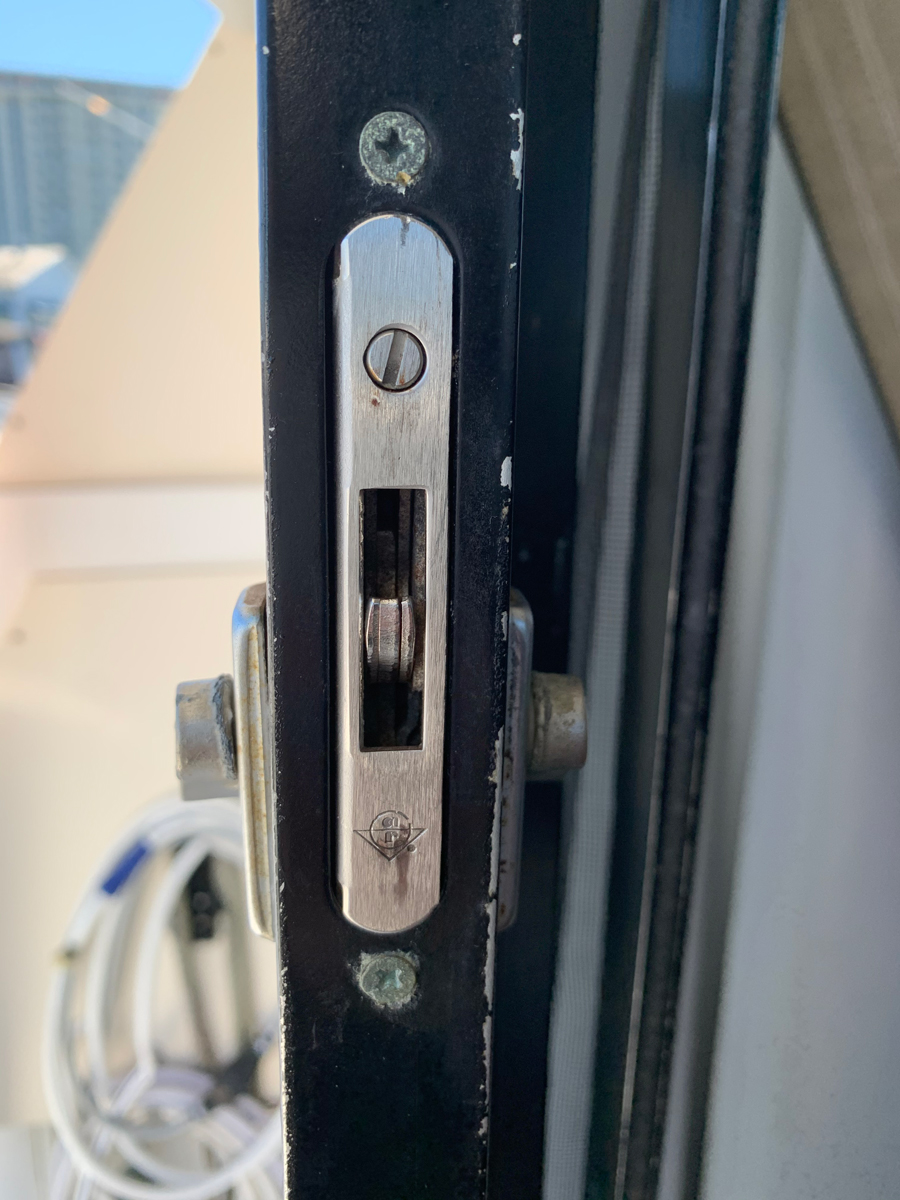

Customer Supplied Photo
Adams Rite MS1847-02-630 Deadlock for Ultra-narrow Stile Sliding Doors - Stainless Steel Finish

(Click to Enlarge)

Questions and Answers

Q: Hi- looking for a discrete latch for a narrow glass door (wood frame 2 1/4" x 2 1/4" approx.) like the Adams Rite MS1847-02-630 Deadlock for Ultra-narrow Stile Sliding Doors - Stainless Steel Finish on your website-can I get more details on it-such as the strike it latches to? and dimensions/cut sheet? any suggestion you might have would be helpful-not a front door-just a small exterior door to private planter-don't want handle etc. just a small thumbturn kind of thing to latch it closed. its a barn door installation-i.e. sliding door. don't need key either. Thanks, Julian

A: First question - what is the door made of?
