Adams Rite MS1837-313 custom

Name: Adams Rite MS1837-313 custom Two-Point Deadlock for Wood Doors with Custom Cylinder Height (Specify) - Dark Bronze Anodized Aluminum Finish
Brand: Adams Rite
SKU: Adams Rite MS1837-313 custom
Price: 294.47 USD

Adams Rite MS1837-313 custom Two-Point Deadlock for Wood Doors with Custom Cylinder Height (Specify) - Dark Bronze Anodized Aluminum Finish

× This image is for a similar product but it will differ in size, color and/or other attributes.

Adams Rite MS1837-313 custom Two-Point Deadlock for Wood Doors with Custom Cylinder Height (Specify) - Dark Bronze Anodized Aluminum Finish

Price: $294.47 USD

Specify Cylinder Height

Comments (Optional)

ADD TO CART

This item is not in stock and typically ships in 45 business days.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

MS1837-313 custom Two-Point Deadlock for Wood Doors with Custom Cylinder Height (Specify) - Dark Bronze Anodized Aluminum Finish

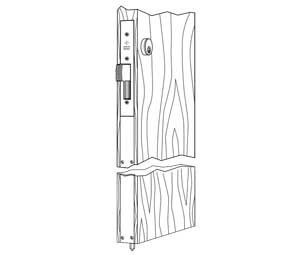

Maximum Security for wood door pairs is provided with the MS1837 Series MS® Two-Point Deadlock. A single turn drops a bolt into the threshold and pivots the MS bolt.

Function: Maximum security for wood door pairs by a single turn of a key is provided with the MS1837. Simultaneously dropping a stainless steel hexbolt into the threshold and pivoting the massive MS bolt into the opposite leaf, the MS1837 eliminates inconvenient and sometimes forgotten flushbolts in the inactive leaf.
Operation: 360° turn of key or thumbturn throws counterbalanced bolt into opposite door and drops bolt into threshold. Key can be removed only when bolts are in a positively locked or unlocked position. Lock accepts any standard 1-5/32” diameter mortise cylinder from either or both sides. Cylinder must have MS® dimensioned cam.
Cylinder Backset: 1-1/2" only.
Finish: 313 - Dark Bronze Anodized Aluminum
Cylinder Height: custom - Custom Cylinder Height - Please Specify - The minimum cylinder height is 13-1/2" and the maximum cylinder height is 65". Cylinder height is defined as the dimension from the bottom of the door to the centerline of the cylinder hole - Refer to Data Sheet for a graphical representation.
Case: Measures 1” x 6” x 2-3/16”. Steel with corrosion-resistant plate.
Pivoted Bolt: 5/8” x 1-3/4” x 2-7/8” with 1-3/8” throw. Eight-ply laminated steel with alumina-ceramic core to deter hacksaw attack.
Threshold Bolt: Hexagonal 3/8”, flat to flat. Stainless steel.
Strike: For MS bolt, a 4001-011 strike plate with dust box is furnished. Threshold bolt strike can be 1/2” diameter hole in metal threshold or, if threshold is wood, 4005 Strike is available as an option.
Armored Faceplate: Flat, two-piece plate extends to bottom of door. Standard finish is US28 (628) Clear Anodized.
Standard Package: Basic MS lock individually boxed with mounting screws. Hexbolt and rod packed separately with face extension plate, screws, bottom bolt guide, and attachment pin.
Shipping Weight: 3 lbs.
Cylinder Cam: 1837 Two-Point Deadlocks are operable by any standard 1-5/32" diameter mortise cylinder with MS® cam dimensioned as shown. Cylinders with MS® cams can be readily obtained from most cylinder manufacturers. See Cylinders, Thumb Turns and Trim Ring available separately.
