Adams Rite 4550R-01-119

Name: Adams Rite 4550R-01-119 Lever Trim for MS Deadlock, Flat Lever with Return, LOCKED/OPEN Indicator, RH/RHR, Satin Black Painted Finish
Brand: Adams Rite
SKU: Adams Rite 4550R-01-119
Price: 196.66 USD

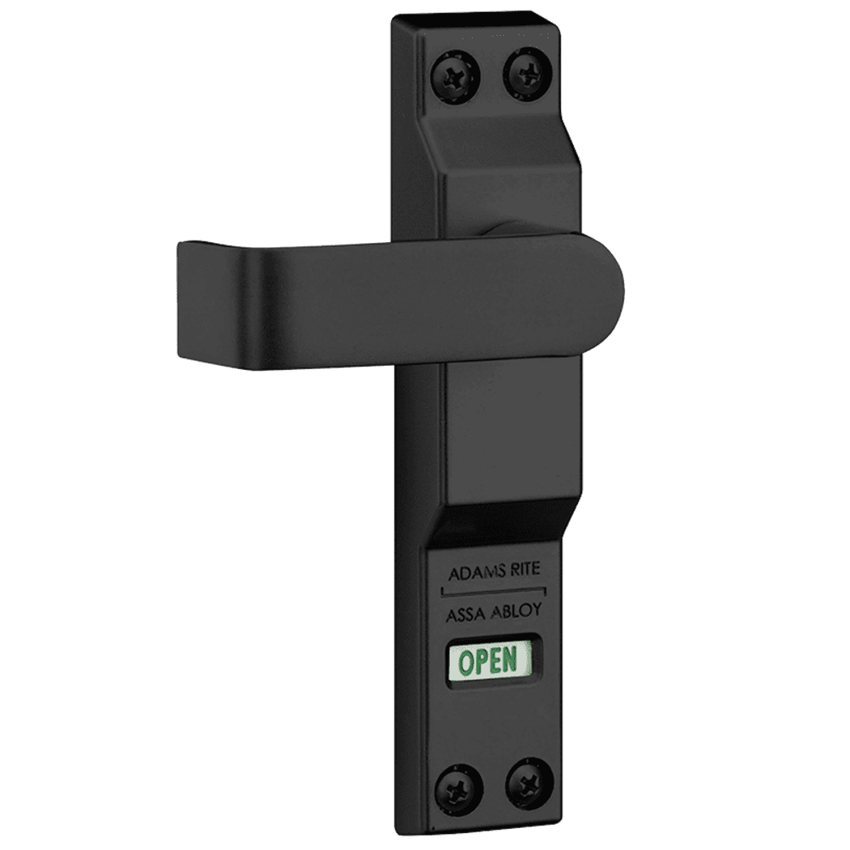

Adams Rite 4550R-01-119 Lever Trim for MS Deadlock, Flat Lever with Return, LOCKED/OPEN Indicator, RH/RHR, Satin Black Painted Finish

× This image is for a similar product but it will differ in size, color and/or other attributes.

Adams Rite 4550R-01-119 Lever Trim for MS Deadlock, Flat Lever with Return, LOCKED/OPEN Indicator, RH/RHR, Satin Black Painted Finish

Price: $196.66 USD

Comments (Optional)

ADD TO CART

In Stock (Minimums Apply):

For quantities beyond the "In Stock" above, the item(s) ships in 1 business day.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

Adams Rite 4550R-01-119 Lever Trim for MS Deadlock, Flat Lever with Return, LOCKED/OPEN Indicator, RH/RHR, Satin Black Painted Finish

Deadlock Lever
For doors 1-3/4" to 2" thick
Right handed or Right hand reverse
Satin Black Painted Finish
Compatible with MS1850, MS1850SN, MS1950 Series Deadlocks and 1870, 1870HM Series Flushlocks

Features

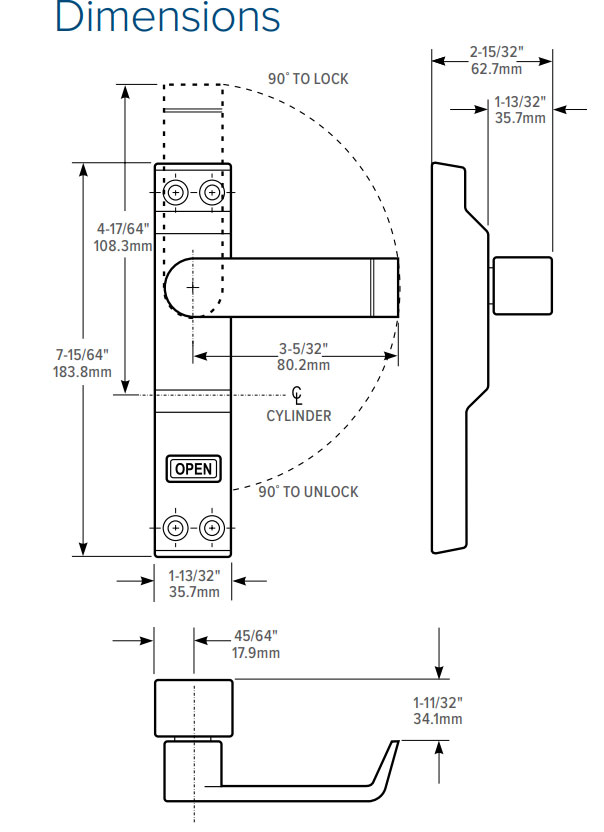

Housing: Aluminum casting is 1-3/8" wide x 7-1/2" long x 1" deep [34.9 mm x 190.5 mm x 25.4 mm].
Lever: 3" [76.2 mm] long aluminum with end-return design offers comfortable grip to lock or unlock.
Indicator: Words “LOCKED" in red letters or “OPEN" in green letters appear on white background when bolt is thrown or retracted respectively. Indicator is driven by lock bolt itself.
Stop Clearance: Lever housing projects 11/16" [17.5 mm] forward of cylinder backset centerline. Depending on height of door stop and width of door/jamb gap, it may be necessary to modify the stop to clear the housing. For fin type stops, this is easily accomplished. Hollow stops may preclude use of lever. Please contact factory for more detailed information.
Compatible Locking Devices: Any MS® pivoted bolt deadlock including“Schoolhouse” versions can be fitted with the 4550 including MS1850S, MS1950. Derivative units such as 1870 or 1870HM, flushbolts that bolt into threshold are also operable by the 4550 lever. Not compatible with MS+1890 Deadlock/Deadlatch or 2190 Interconnected Deadlock/Deadlatch or with 7/8" [22.2 mm] backset locks.
Standard Package: Individually boxed with mounting hardware and drive pins for both single point and threshold bolt-equipped locks.

Operation:

Rotate lever downward 90° to unlock. When released, lever returns to horizontal. Rotate lever upward 90° to relock. Key operation from outside is not affected. Clutching action prevents damage to internal components.

Function:

Easy unlocking of most MS Deadlocks by approximately 3 lbs [1.36 kg] downward force on a 3" [76.2 mm] lever. Lever is spring loaded to horizontal, relocks with upward motion. Indicator signals lock status. Can be installed in place of existing key cylinder or cylinder type thumbturn on inside of door. 4550 Deadlock Lever not compatible with 7/8" [22.2 mm] backset locks.

4550 Series Catalog Pages

Installation Instructions

Handing Chart

Video Detail Page

Questions and Answers

Q: what about putting the 4550 on a sliding door

A: What lock body are you attaching this to?

Q: Hello, I found your wonderful videos on YouTube. Was wondering if you could help with this problem, I’ve attached a photo and quick video. Also, from the outside of the door, I can still use my key to enter the building and the latch does retract. It’s just from the inside of the building going out, that the handle doesn’t retract the latch anymore. Photo and video are here:

Download File

Click Here

Thank you so much for any and all assistance! Anakatrina

A: Please see this video :

Click Here

and then call a locksmith immediately

Q: Thank you so much for the help! That was such a perfect explanation of the issue. I will be calling a locksmith asap. Happy Holidays!

A: My pleasure.
