Adams Rite 4190-09-01-130-01-IB
Adams Rite 4190-09-01-130-01-IB
Adams Rite 4190-09-01-130-01-IB Sliding Door Flush Lockset with Exterior Cylinder
×
This image is for a similar product but it will differ in size, color and/or other attributes.
Price:
$
114.11 USD
In Stock Ready for Shipment
Comments
(Optional)
ADD TO CART
In Stock (Minimums Apply
):
For quantities beyond the "In Stock" above, the item(s)
ships in 2-3 business days.
Additional Declarations -
This manufacturer has an order minimum of $85.00 - if your total is less than this amount, the lead time approximately 2-3 weeks before it would ship. Simply exceed this minimum order amount so that we can drop ship the material to your location.
Check Inventory
Request Quote
No Minimum
There is no minimum quantity required for this product for quantities up to the level listed below.
Minimum Order Levels Apply
You must order a total of $85.00 worth of product from Adams Rite to place an order.
Check Inventory Levels
Enter your email address and we will check with all available sources and get back to you with exact inventory levels and estimated shipping times.
Qty. Needed:
Request Quote
Enter the qty needed and we will generate a quote and save your order in our system.
You will not be charged and we will not fulfill the order.
Qty. Needed:
+ Add to My Wish List
1-844-809-3667
Sales
sales@absupply.net
Technical Support
tech@absupply.net
Product Description:
4190-09-01-130-01-IB Sliding Door Flush Lockset
Function: 4190 = With exterior cylinder
Lock Face Ends: 09 = Radius
Stile Thickness: 01 = 1" to 1-3/8"
Finish: 130 = To match 628 Clear Anodized
Keying Options: 01 = Keyed Different
IB: Individually Boxed
Backset: Variable (from face of lock to escutcheon and cylinder centerline)
Minimum: .625"
Maximum: 1.28"
Inside Operation
Vertical slide button projects or retracts deadlock bolt
Outside Operation
Key in five-pin Schlage "C" Keyway cylinder (included) projects or retracts bolt
Anti-Lift Lock Mechanism
Basic MS1848-09 is supplied
Bolt is self-protecting, adjustable for reach
Escutcheons
Zinc Alloy, Satin Silver epoxy
Function:
Allows doors to slide freely past other sliding units or stationary panels
No projecting handles to tear draperies to prevent the door from being "stacked" in a wall pocket
ANSI/BHMA Type E8292 Grade 2
Template
Instructions
Parts Diagram
How To Order Deadlocks
Adams Rite 4430, 4431 and 4189, 4190

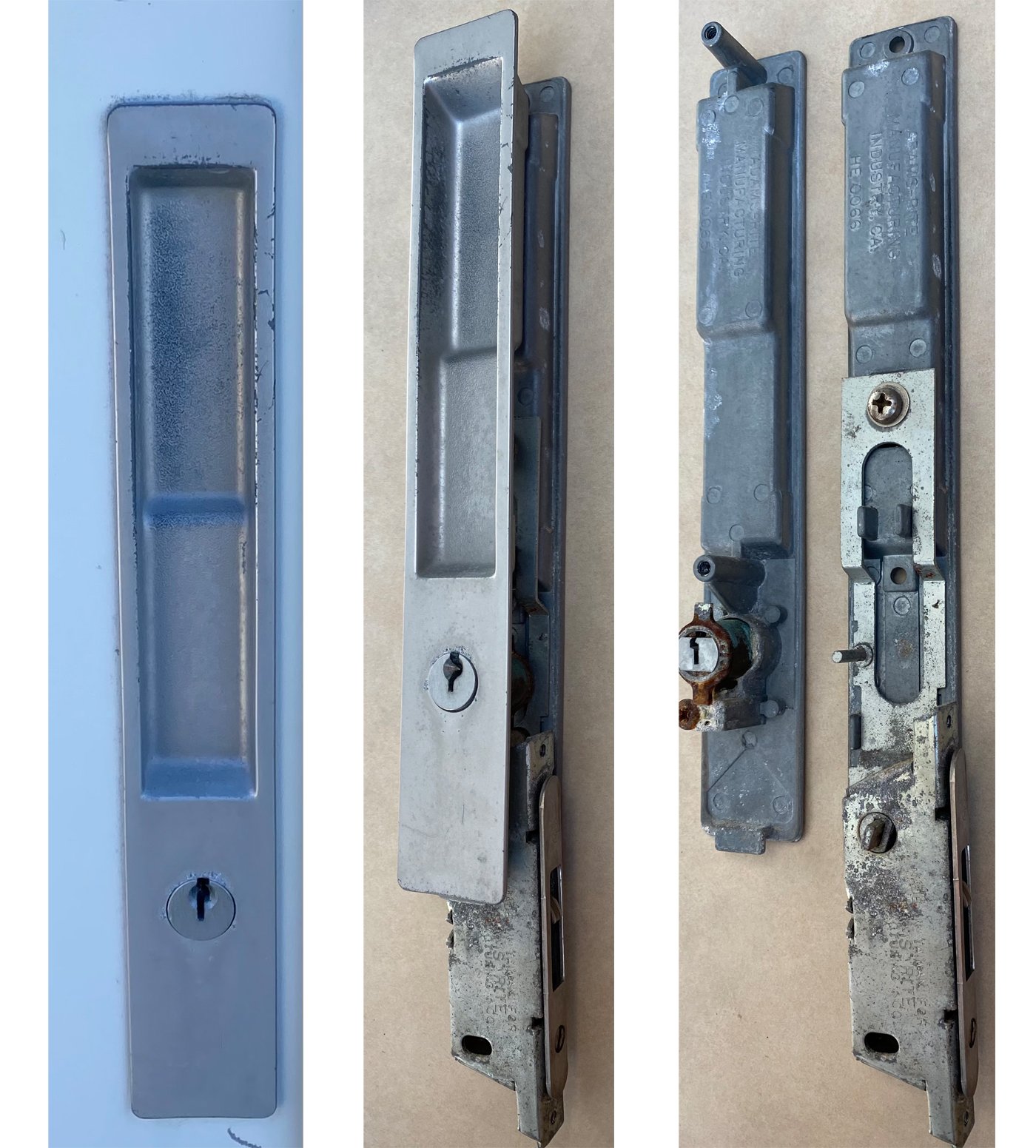

Customer Supplied Photo
(Click to Enlarge)
Video Detail Page
Questions and Answers
There are currently no questions or answers.
(Required, used to email you once question is answered.)
