Adams Rite 4036-01 KA 628

copy to clipboard

Adams Rite 4036-01 KA 628 Mortise Cylinder - Aluminum

enlarge
enlarge
× This image is for a similar product but it will differ in size, color and/or other attributes.
Adams Rite 4036-01 KA 628 Mortise Cylinder - Aluminum
Main ImageVideo Review Adams Rite 4036-01 KA 628 Mortise Cylinder - Aluminum
More from Adams Rite
Price: $50.49 USD
Ships From
Comments (Optional)
Standard - ships in 15-20 business days.

1-844-809-3667

Sales
Technical Support
Product Description:
Adams Rite Mortise Cylinder
  • Shell, Cylinder: Brass, Aluminum scalp with US28 Clear Anodized (628). Plug is US26 Chrome
  • Length: 1" long
  • Trim Ring: Furnished. 1/4“ thick, suitable for 1-3/4” thick doors. Available on special order for other door thicknesses.
  • Function: A standard 1-5/32“ diameter cylinder with 5-pin tumbler security. Designed to operate any Adams Rite lock or latch requiring a mortise cylinder. Close-tolerance manufacture and inspection achieve setscrew grooves and cam that are true on their respective centerlines. This ensures proper mating and operation with the lock or latch mechanism.
Questions and Answers
Q: What is the length of this cylinder?
A: 1” long.

Please contact our sales department here:

Click Here

if we can assist you with entering this order and please let us know if there is anything else we can help with.

Q: Rich - I'm about to open a building with 22 doors that need to be keyed differently with Adams Rite 2331 locks. I would love that have the tools to rekey these locks as the tenants leave or lose their keys. Do you have these tools? And, if so, what do they cost?
A: You would need a pinning kit and plug follower at a minimum.

Please see this video for my opinion on this:

View Video

Please reply to this email or contact our sales department here:

Click Here

if we can assist you by answering further questions or with entering this order and please let us know if there is anything else we can help with.

Q: I'm trying to find a cylinder that would work for a 1 1/2" thick door. I don't want to use the ring spacer that comes with the standard 1" cylinder. Do you recommend any?
A: Follow up Answer: What lock type are you using this with and is the door already prepped for the lock body? Original Answer: Is this for an aluminum storefront door? Is there a specific security lock you are already using? Or, is just a standard application? If it's standard you'll use a 1" cylinder (for 1-1/2" thick door) - you'll want no more that 13/16" exposed thread from the face of the door once the cylinder is installed. We do offer different cylinder collars for standard applications or for security purposes (that are not necessarily spacers). Is there a follow-up question I can assist with?
Q: I have Dorma AR20 patch lock for 3/4" glass door. May I know what sized of Keyed cylinder that fits for the patch lock
A: The length of the mortise cylinder only for the Dorma AR20 Patch Lock would be by using our standard cylinder is a 5 pin, 1” long w/ a compression ring and a straight cam.

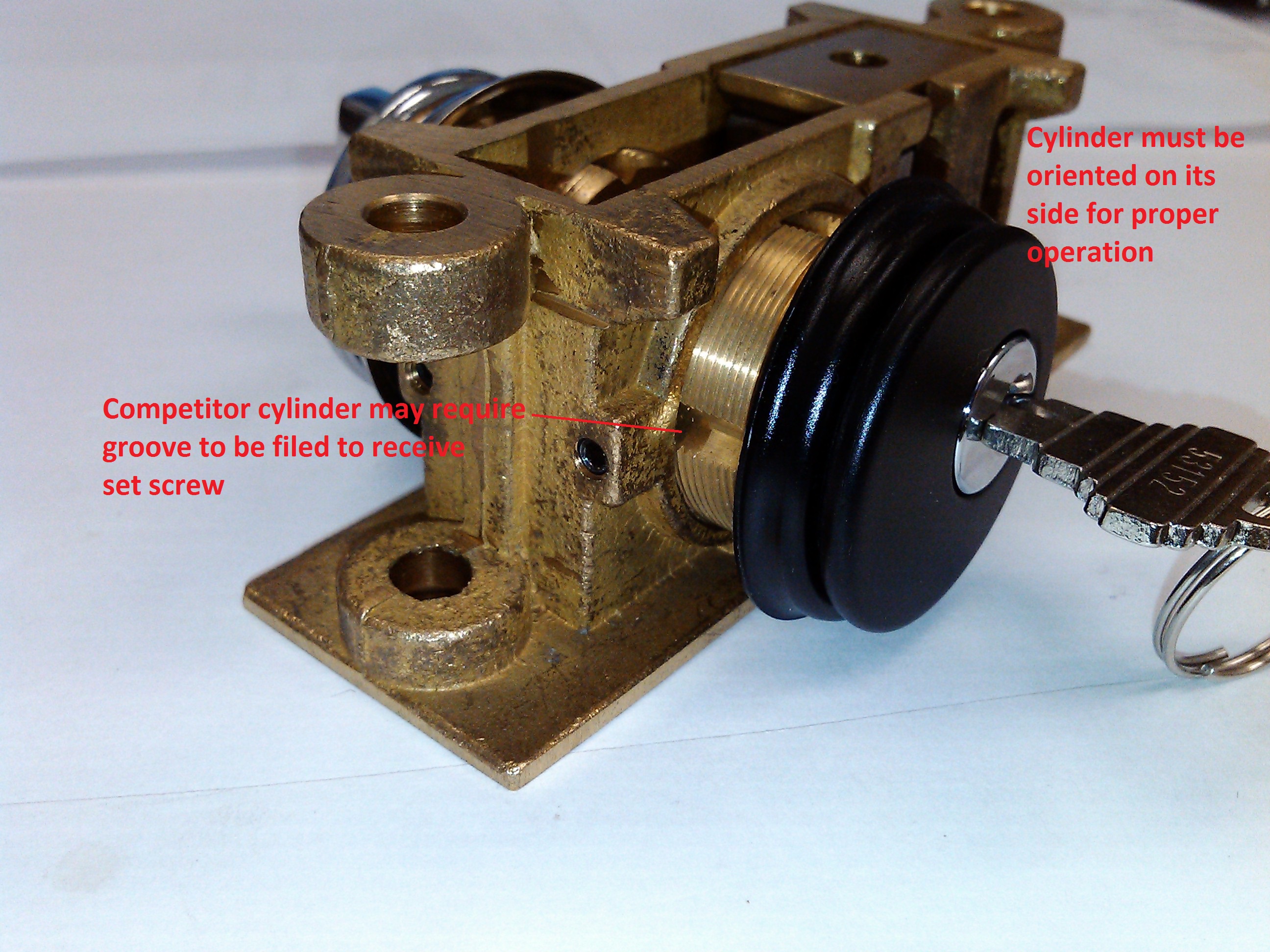

You can use any length you need, with the appropriate blocking/trim ring. The important thing is to orient the cylinder correctly – see attached as seen here:

View Image

and here:

Download File

and the full catalog here:

Download File

Q: What is a peanut cylinder?

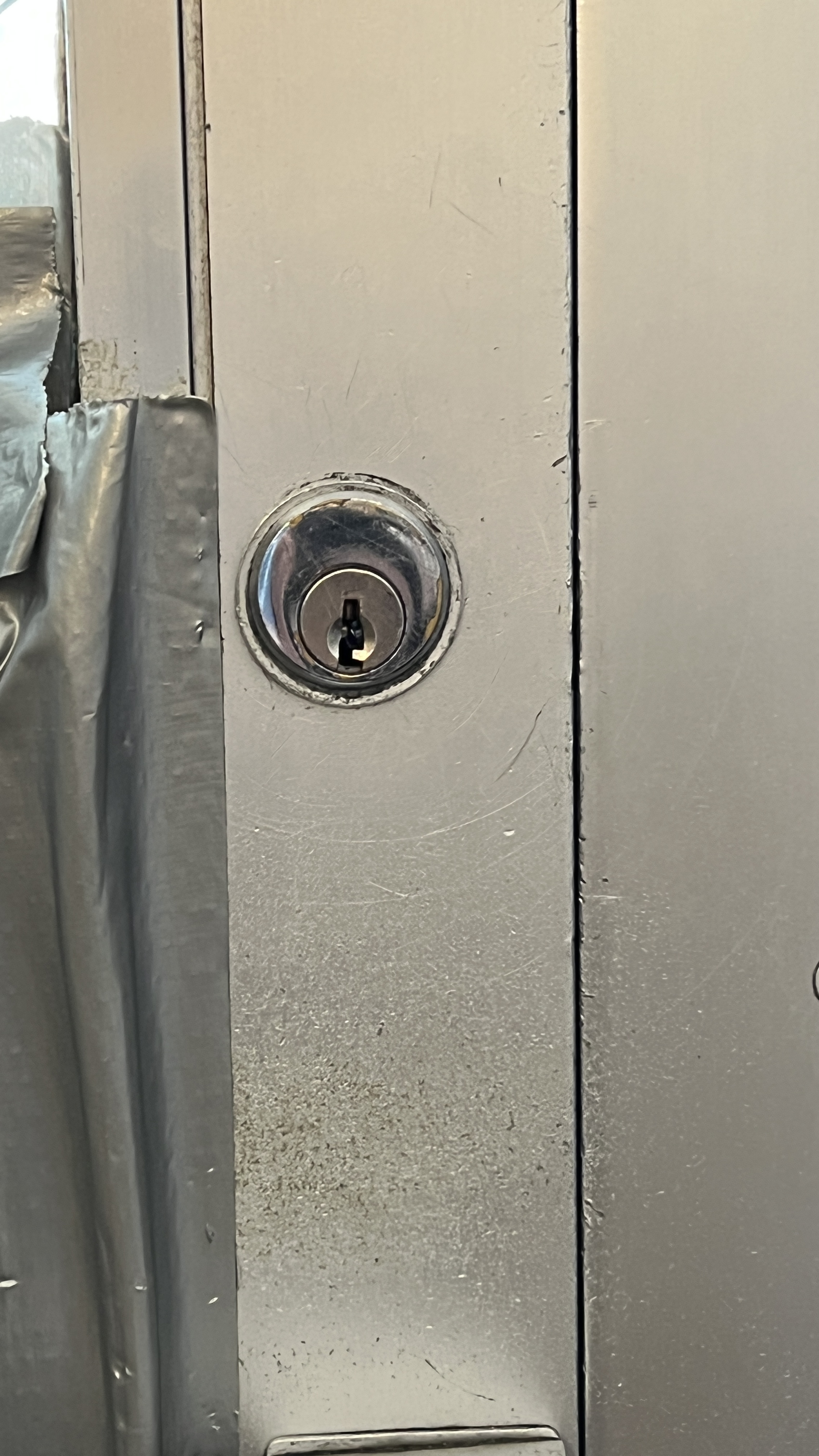

A: A peanut cylinder is a mortise cylinder 3/4" in diameter, once made by Yale, Kaba Ilco and certainly others used in mid 20th century aluminum storefront door applications. An example of one was photographed in 2022 in Rapid city SD:

View Image

Q: What is the diameter of the cylinder for the mortise to be drilled?
A: 1-1/4" diameter hole is typical for both mortise and rim cylinders when working on builders hardware.
