Adams Rite 1877-628 13-1/2"

Name: Adams Rite 1877-628 13-1/2" Cylinder-Operated Flushbolt for Wood Doors with 13-1/2" Standard Cylinder Height - Clear Anodized Finish
Brand: Adams Rite
SKU: Adams Rite 1877-628 13-1/2"
Price: 193.77 USD

Adams Rite 1877-628 13-1/2" Cylinder-Operated Flushbolt for Wood Doors with 13-1/2" Standard Cylinder Height - Clear Anodized Finish

× This image is for a similar product but it will differ in size, color and/or other attributes.

Adams Rite 1877-628 13-1/2" Cylinder-Operated Flushbolt for Wood Doors with 13-1/2" Standard Cylinder Height - Clear Anodized Finish

Price: $193.77 USD

Comments (Optional)

ADD TO CART

This item is not in stock and typically ships in 1 business day.

Additional Declarations - This manufacturer has an order minimum of $85.00 - if your total is less than this amount, the lead time approximately 2-3 weeks before it would ship. Simply exceed this minimum order amount so that we can drop ship the material to your location.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

1877-628 13-1/2" Cylinder-Operated Flushbolt for Wood Doors with 13-1/2" Standard Cylinder Height - Clear Anodized Finish

Designed for greater key control, the 1877 Cylinder-Operated Flushbolt prevents accidental locking of the inactive leaf of paired wood doors. May be installed to lock at threshold or at header.

Function: Designed for use instead of conventional flip-lever operated flushbolts, the 1877 Cylinder-Operated Flushbolt gives building management key control of the inactive leaf of paired doors. Prevents casual locking of the inactive leaf by children or other unauthorized persons. Uses same basic over-center action mechanism as MS® pivoted bolt locks. Recommended for installation at both top and bottom of inactive door with MS1837 in active door for greatest security. May be installed to lock at threshold or header.
Operation: 360° turn of key throws or retracts the hex-section bolt. Key can be removed only when bolt is in a positively locked or unlocked position. Accepts any standard 1-5/32" mortise cylinder from either or both sides. Cylinder must have MS® dimensioned cam
Cylinder Backset: 1-1/4" only.
Finish: 628 - Clear Anodized
Cylinder Height: 13-1/2" - Standard Cylinder Height (Cylinder height is defined as the dimension from the bottom of the door to the center line of the cylinder hole) - Refer to Data Sheet for a graphical representation.
Case: Measures 1" x 6" x 1-29/32". Steel with corrosion resistant plating.
Bolt: Hexagonal 3/8" flat to flat, with 11/16" throw. Made of stainless steel.
Strike: 2-1/4" x 15/16" strike is supplied.
Armored Faceplate: 1-1/4" x 15-5/8". Standard Finish: US28 Clear Anodized (628).
Standard Package: Basic lock mechanism boxed with actuator arm attached, rod/bolt assembly unattached. Stainless steel bolt guide, mounting screws, and installation instructions included.
Shipping Weight: 1-1/4 lbs.

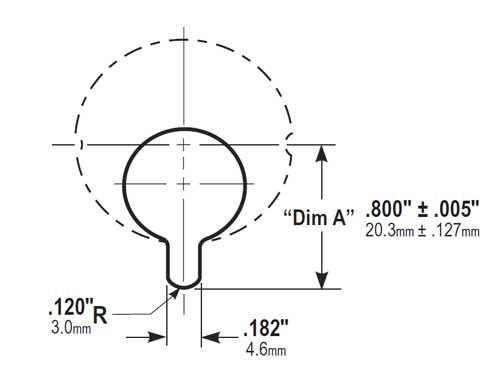

Cylinder Cam: 1870 Cylinder-Operated Flushbolts are operable by any standard 1-5/32" diameter mortise cylinder with MS® cam dimensioned as shown. Cylinders with MS® cams can be readily obtained from most cylinder manufacturers. See Cylinders, Thumb Turns and Trim Ring available separately.
