Acudor RHG-G38104 30 X 96 Service Stair Access Roof Hatch - Galvanized Steel
×
This image is for a similar product but it will differ in size, color and/or other attributes.
×
This product review video is for a similar product but it will differ in size, color and/or other attributes.
Price:
$
2,538.21 USD
In Stock Ready for Shipment
Select Roof Hatches Shipping Charge
1 - total hatch on order (Add $250.00)
2 - total hatches on order (Add $165.00)
3 - total hatches on order (Add $85.00)
4 - total hatches on order - FREE
Comments
(Optional)
ADD TO CART
For quantities beyond the "In Stock" above, the item(s)
ships within 14 business days.
Check Inventory
Request Quote
No Minimum
There is no minimum quantity required for this product for quantities up to the level listed below.
Minimum Order Levels Apply
This item has minimum order levels that need to be met.
Check Inventory Levels
Enter your email address and we will check with all available sources and get back to you with exact inventory levels and estimated shipping times.
Qty. Needed:
Request Quote
Enter the qty needed and we will generate a quote and save your order in our system.
You will not be charged and we will not fulfill the order.
Qty. Needed:
+ Add to My Wish List
1-844-809-3667
Sales
sales@absupply.net
Technical Support
tech@absupply.net
Product Description:
Acudor RHG-G38104 30 X 96 Service Stair Access Roof Hatch - Galvanized Steel

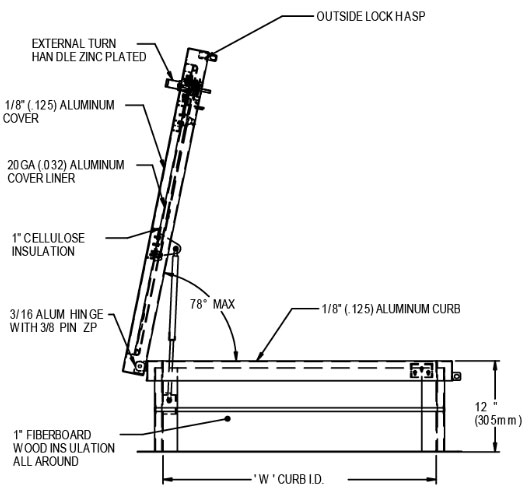

RHG Service Stair Access Roof Hatch Specifications:
Nominal Door Size:
30" X 96"
Cover:
Double-skin construction ("in box type design") with 1" cellulose insulation and a continuous EPDM foam weather/draft seal gasket that is attached to the inside of cover to provide a flush, tight fit. Designed to support a live load of 40lbs./sq. ft., the cover is 14 gauge galvanized steel with a 22 gauge galvanized steel inside liner.
Hinge Pin:
Heavy duty galvanized steel pintle hinges with 3/8" pin
Curb:
14 gauge galvanized steel with 1" thick fiberboard roof insulation at curb exterior. Curb is 12" high, with 3.375" wide bottom flange and pre-drilled mounting holes.
Door Latch:
Self latching, zinc plated outside T handle with stainless steel inside lock and lever assembly. Unit also has inside and outside padlock provisions.
Opening:
Gas spring operators allow cover to open and close with ease. Inside pull handle allows for easy control when closing cover.
Weight:
335 lbs
Finish:
Material is prepared with an iron phosphate wash, followed by a rust inhibiting primer, and then a baked on polyester enamel paint.
Features:
RHG Optional features:
Polycarbonate domes for daylighting
Louvered Curbs
Stainless Steel cover, curb, and/or hardware
Curb Mounted Units
Curb pitch corrected for sloped roof
Higher curb heights for "green roof" applications
Applications:
Designed to provide convenient, economical access to the roof of a building from a full size staircase to perform maintenance.
Product Brochure
Tech Sheet
