Acudor FW-5050 SS 12" x 12"
Acudor FW-5050 SS 12" x 12"
Acudor FW-5050 SS 12" x 12" Fire-Rated Insulated Access Door for Walls and Ceilings - Satin Polish
×

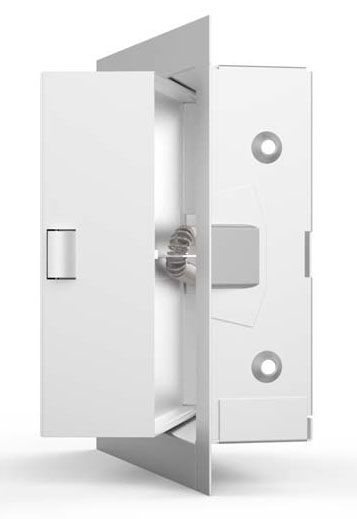

This image is for a similar product but it will differ in size, color and/or other attributes.
×
This product review video is for a similar product but it will differ in size, color and/or other attributes.
Price:
$
423.64 USD
In Stock Ready for Shipment
Select Lock Option
Knurled knob or flush key (standard)
Mortise cylinder Prep - cylinder NOT included (Add $125.22)
Rim cylinder lock (Add $41.47)
Mortise cylinder Prep - cylinder included (Add $152.70)
Comments
(Optional)
ADD TO CART
For quantities beyond the "In Stock" above, the item(s)
ships within 14 business days.
Check Inventory
Request Quote
No Minimum
There is no minimum quantity required for this product for quantities up to the level listed below.
Minimum Order Levels Apply
This item has minimum order levels that need to be met.
Check Inventory Levels
Enter your email address and we will check with all available sources and get back to you with exact inventory levels and estimated shipping times.
Qty. Needed:
Request Quote
Enter the qty needed and we will generate a quote and save your order in our system.
You will not be charged and we will not fulfill the order.
Qty. Needed:
+ Add to My Wish List
1-773-809-3667
Sales
sales@absupply.net
Technical Support
tech@absupply.net
Product Description:
Acudor FW-5050 SS 12" x 12" Fire-Rated Insulated Access Door for Walls and Ceilings - Satin Polish
FW-5050 Access Door Specifications:
Nominal Door Size:
12" x 12"
Door:
20 gauge, filled with 2" thick fire rated insulation
Weight:
10 lbs
Finish:
Stainless Steel: Type 304 - #4 satin polish
Mounting Frame:
16 gauge, flange to be 1" wide
Hinge:
Concealed
Fire Rating (Walls):
UL — 1-1/2 hour "B" label. ULC — 2 hour "B" label. Max size: 36 x 48. (Ceilings): Warnock Hersey International 3 hour rated in a non-combustible ceiling. 1 hour rated in a combustible ceiling. Max size: 24 x 36
Features:
Latch/Lock Options:
Standard: Universal self-latching bolt, operated by either a knurled knob or flush key
Optional: Rim cylinder lock; mortise cylinder locks (when master keying is required, doors can be prepared for)
Self-closing & self-latching door mechanism
Inside latch release
Insulated door panel
Applications:
Designed for walls and ceilings
This door should be used in walls when temperature rise or heat transmission is a factor.
