Acudor FW-5015 16" x 16" Fire-Rated Un-Insulated Recessed Door for Drywall Walls - Satin Coat Steel
×
This image is for a similar product but it will differ in size, color and/or other attributes.
×
This product review video is for a similar product but it will differ in size, color and/or other attributes.
Price:
$
311.62 USD
In Stock Ready for Shipment
Select Lock Option
Flush screwdriver-operated steel cam (standard)
Rim Cylinder Lock (Add $41.47)
Comments
(Optional)
ADD TO CART
For quantities beyond the "In Stock" above, the item(s)
ships within 14 business days.
Check Inventory
Request Quote
No Minimum
There is no minimum quantity required for this product for quantities up to the level listed below.
Minimum Order Levels Apply
This item has minimum order levels that need to be met.
Check Inventory Levels
Enter your email address and we will check with all available sources and get back to you with exact inventory levels and estimated shipping times.
Qty. Needed:
Request Quote
Enter the qty needed and we will generate a quote and save your order in our system.
You will not be charged and we will not fulfill the order.
Qty. Needed:
+ Add to My Wish List
1-844-809-3667
Sales
sales@absupply.net
Technical Support
tech@absupply.net
Product Description:
Acudor FW-5015 16" x 16" Fire-Rated Un-Insulated Recessed Door for Drywall Walls - Satin Coat Steel

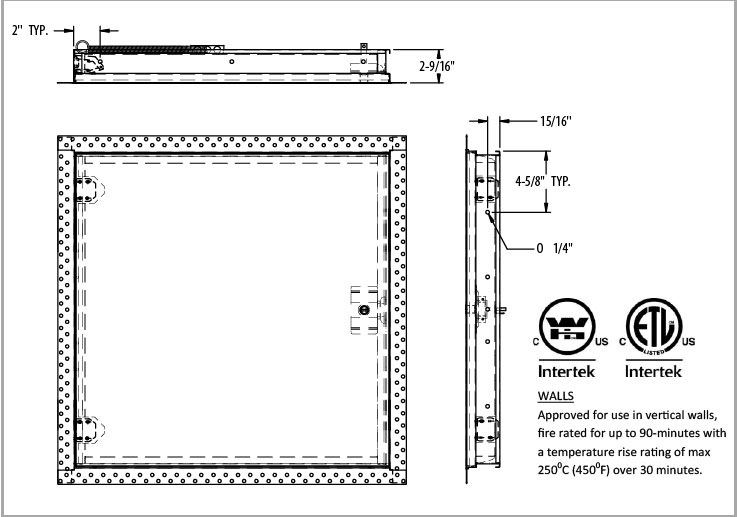

FW-5015 Access Door Specifications:
Nominal Door Size:
16" x 16"
Door:
22 gauge steel, recessed door fitted with 5/8" thick drywall suitable to accept skim coat finish on site
Weight:
9 lbs
Finish:
Satin Coat Steel
Door Frame:
Steel-22 Gauge press bent for strength and rigidity with pre-punched flanges for convenient mounting and accepting skim coat finish on site
Flange:
Textured galvanized steel taping bead with pre-punched holes
Hinge:
Concealed
Fire Rating (Walls):
Meets 1½ hour fire rating requirement in accordance with UL 10(b) and CAN/ULC S104-10 for max size up to 24" x 36"
Features:
Latch/Lock Options:
Standard: Self-latching bolt, operated by flush key
Optional: Rim cylinder lock
Self-closing & self-latching door mechanism
Perforated Frame ensures trouble-free application of skim coat to edge of the door
Recessed reinforced insulated door fitted with 5/8” Fire-rated drywall
Concealed hinge & self-centering device ensures seamless appearance in walls
Zinc coated steel provides superior corrosion resistance
Testing standards UL 10(b) and ULC S104
Applications:
Designed for installation in drywall walls requiring concealing of the door panel consistent to the surrounding walls.
Approved by Underwriter's Laboratories (UL) for 1-1/2 hours "B" label in walls. Designed to maintain continuity in a 2 hour fire barrier wall, the FW-5015 should be used whenever it is necessary to provide access in fire rated drywall walls, where it is required to conceal the door panel.
For use in walls, fire-rated for up to 90-minutes with a temperature rise of max 250° C (450°F) over 30 minutes.
