Acudor FC-300 30 x 30

Name: Acudor FC-300 30 x 30 300 lbs. /sq. ft. Loading 30" x 30" Channel Frame Floor Door with Drain - Mill
Brand: Acudor Products Inc.
SKU: Acudor FC-300 30 x 30
Price: 1605.86 USD

Acudor FC-300 30 x 30 300 lbs. /sq. ft. Loading 30" x 30" Channel Frame Floor Door with Drain - Mill

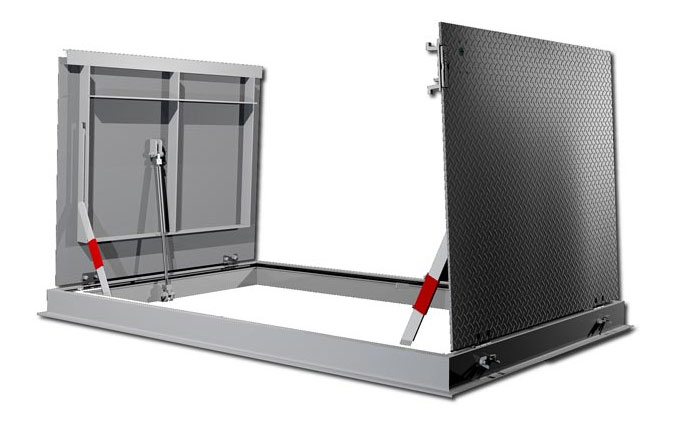

× This image is for a similar product but it will differ in size, color and/or other attributes.

Acudor FC-300 30 x 30 300 lbs. /sq. ft. Loading 30" x 30" Channel Frame Floor Door with Drain - Mill

Price: $1,605.86 USD

Comments (Optional)

ADD TO CART

For quantities beyond the "In Stock" above, the item(s) ships within 14 business days.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:


	Acudor FC-300 30 x 30 300 lbs. /sq. ft. Loading 30" x 30" Channel Frame Floor Door with Drain - Mill

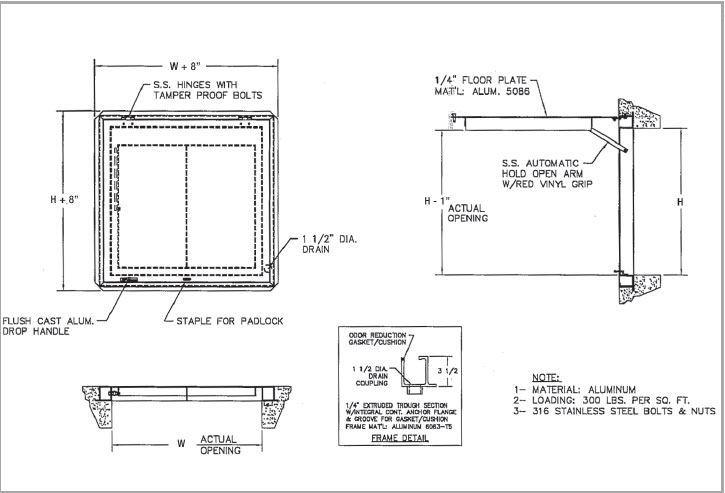

FC-300 Floor Door Specifications:

Nominal Door Size: 30" x 30"
Channel Frame Floor Door with Drain
Weight: 80 lbs
Material: Aluminum door and frame; stainless steel hinges and hardware
Finish: Mill finish, with bituminous coating applied to exterior of frame
Door: 1/4" aluminum diamond plate reinforced for live load of 300 pounds/sq. ft.
Frame: Channel frame fabricated from aluminum extrusion with an integral 1" anchor flange
Hinge: Stainless steel butt hinges with tamperproof stainless steel bolts and nuts
Opening Device: Automatic hold open arm with red vinyl grip allows door panel to open to 90 degrees, locking door in open position, and allowing for easy control when closing door panel. Stainless steel compression springs provide lift assistance.
Standard Latch: Flush aluminum drop handle with staple for padlock
Optional Latch: Recessed padlock provision: st/stl slamlock

Features:

Channel frame construction with 1½" drainage coupling and integral anchor flange is designed to be cast into concrete
Diamond plate door panel is equipped with a flush aluminum drop handle and an automatic hold open arm

Applications:

Indoor or Outdoor applications where dirt and water are prevented from falling into work area. Drainage is provided through threaded coupling in channel.
