Acudor FA-300-R 36 x 36
Acudor FA-300-R 36 x 36

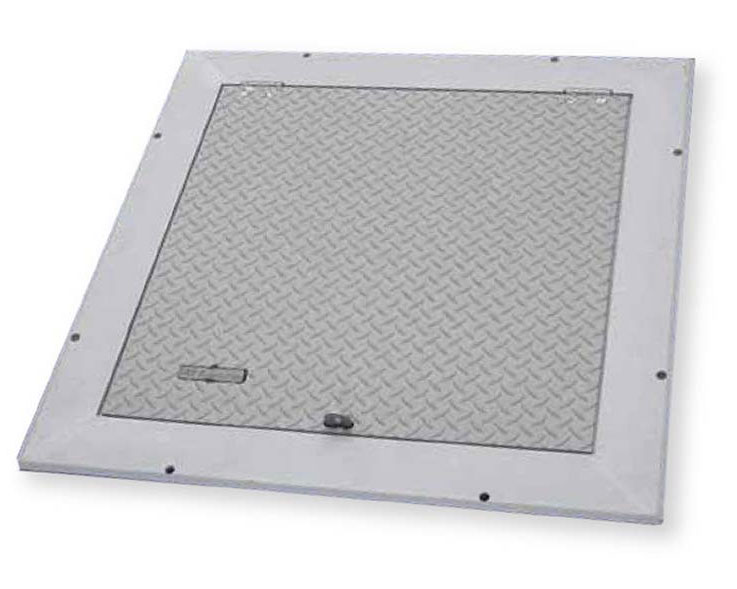

Acudor FA-300-R 36 x 36 300 lbs. /sq. ft. Loading 36" x 36" Retrofit Single Leaf Angle Frame Floor Door - Mill
×
This image is for a similar product but it will differ in size, color and/or other attributes.
×
This product review video is for a similar product but it will differ in size, color and/or other attributes.
Price:
$
1,758.67 USD
In Stock Ready for Shipment
Latch Option
Flush aluminum drop handle with staple (standard)
Slamlock with removable key handle (Add $110.00)
Select Finish
Bituminous coating on exterior of frame (Add $65.00)
Mill Finish
Select Shipping Cost
1 - total Floor Door on order (Add $175.00)
2 - total Floor Door on order (Add $87.50)
3-5 - total Floor Door on order (Add $40.00)
6 or more - total Floor Door on order - Free
Comments
(Optional)
ADD TO CART
For quantities beyond the "In Stock" above, the item(s)
ships within 14 business days.
Check Inventory
Request Quote
No Minimum
There is no minimum quantity required for this product for quantities up to the level listed below.
Minimum Order Levels Apply
This item has minimum order levels that need to be met.
Check Inventory Levels
Enter your email address and we will check with all available sources and get back to you with exact inventory levels and estimated shipping times.
Qty. Needed:
Request Quote
Enter the qty needed and we will generate a quote and save your order in our system.
You will not be charged and we will not fulfill the order.
Qty. Needed:
+ Add to My Wish List
1-844-809-3667
Sales
sales@absupply.net
Technical Support
tech@absupply.net
Product Description:
Acudor FA-300-R 36 x 36 300 lbs. /sq. ft. Loading 36" x 36" Retrofit Single Leaf Angle Frame Floor Door - Mill
FA-300-R Floor Door Specifications:
Nominal Door Size:
36" x 36"
Load Rating:
300 lbs/sqft
Weight:
75 lbs
Material:
Aluminum door and frame; stainless steel hinges and hardware
Finish:
Mill finish, with optional bituminous coating on exterior of frame
Door:
1/4" aluminum diamond plate reinforced for live load of 300 lb/sq. ft
Frame:
Angle frame fabricated from aluminum extrusion
Hinge:
Stainless steel butt hinges with tamperproof stainless steel bolts and nuts
Opening Device:
Automatic hold open arm with red vinyl grip allows door panel to open to 90 degrees, locking door in open position, and allowing for easy control when closing door panel. When required, stainless steel compression springs can be provided to add lift assistance.
Standard Latch:
Flush aluminum drop handle with staple for padlock
Optional Latch:
Recessed padlock provision: st/stl slamlock
Features:
Angle frame construction designed to be bolted into an existing opening
Diamond plate door panel is equipped with a flush aluminum drop handle and an automatic hold open arm
Applications:
Designed for interior and exterior applications where watertightness is not required, to withstand 300 lbs. /sq. ft. loading
For use when the door will not be cast into concrete, but bolted down
Product Brochure
Tech Sheet
Questions and Answers
Q: does this door have a key lock? need something that locks but cant stick out do to being a trip hazard
A:

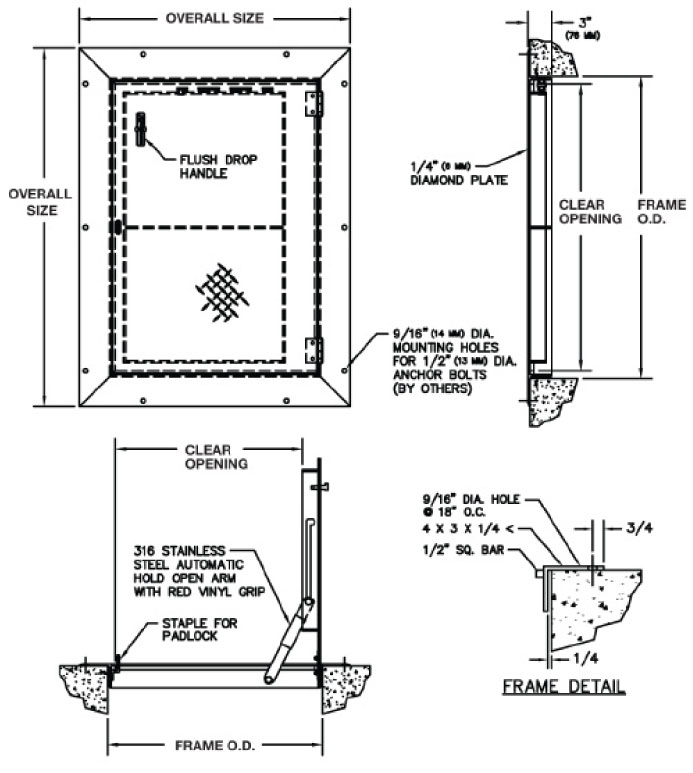

The manufacturer regarding the Acudor FA-300-R 36 x 36 300 lbs. /sq. ft. Loading 36" x 36" Retrofit Single Leaf Angle Frame Floor Door - Mill has a provision for a padlock that you can add via a recessed area that the padlock will sit down flush into as seen in the technical drawing here:
View Image
And a close up version here:
View Image
