Acudor ARVB 12" x 12" x 6"

Name: Acudor ARVB 12" x 12" x 6" Stainless Steel Recessed Valve Box - Satin Polish
Brand: Acudor Products Inc.
SKU: Acudor ARVB 12" x 12" x 6"
Price: 436.92 USD

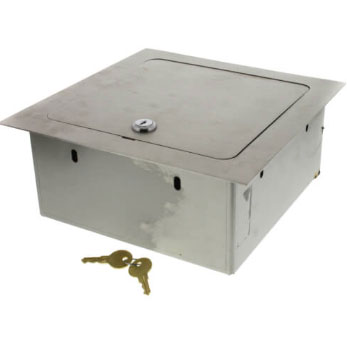

Acudor ARVB 12" x 12" x 6" Stainless Steel Recessed Valve Box - Satin Polish

× This image is for a similar product but it will differ in size, color and/or other attributes.

Acudor ARVB 12" x 12" x 6" Stainless Steel Recessed Valve Box - Satin Polish

Price: $436.92 USD

Comments (Optional)

ADD TO CART

For quantities beyond the "In Stock" above, the item(s) ships within 14 business days.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:


	Acudor ARVB 12" x 12" x 6" Stainless Steel Recessed Valve Box - Satin Polish

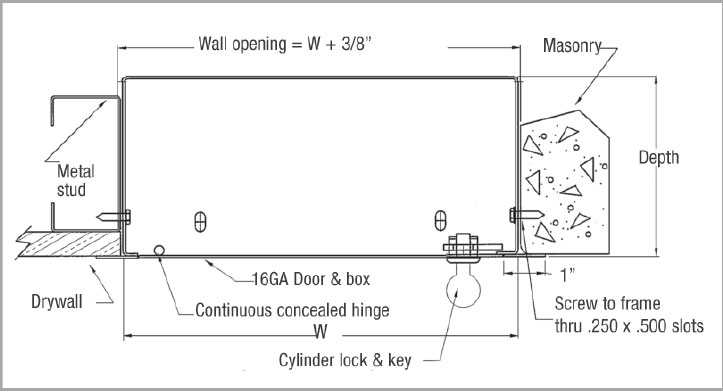

ARVB Valve Box Specifications:

Nominal Door Size: 12" x 12" x 6"
Material: Stainless Steel or Steel
Finish: Satin Polish
Hinge: Continuous, concealed
Door: 16 gauge, flush to frame — rounded safety corners
Box: 16 gauge, fully enclosed, completely attached to frame. When required box can be made with open back
Weight: 12 lbs
Frame: 16 gauge, one piece outer flange welded to box

Features:

Locking/latch options:

Standard: Cylinder lock and key
Optional: Allen head cam latch, Spanner head cam latch, recessed non locking SS paddle

Applications:

Designed to provide easy access to all types of valves and controls that need to be concealed in the wall, but protected by a fully enclosed box
The depth of the valve box can be modified to meet all the valve and control requirements
When required, vision panels, louvers, engraved plates can be supplied, along with special holes for pipes or conduits
