Home > Weatherstripping > Astragals > Steel Prime > Zero 43SP 84

Zero 43SP 84

Name: Zero 43SP 84" Steel Prime Security Astragal
Brand: Zero International
SKU: Zero 43SP 84
Price: 163.19 USD

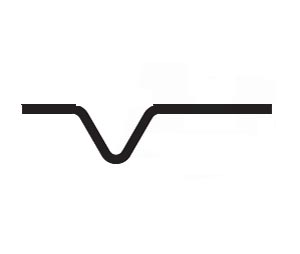

Zero 43SP 84" Steel Prime Security Astragal

× This image is for a similar product but it will differ in size, color and/or other attributes.

Zero 43SP 84" Steel Prime Security Astragal

Video Review Zero 43SP Steel Prime Security Astragal

Price: $163.19 USD

Comments (Optional)

ADD TO CART

This item is not in stock and typically ships in 25 business days for any quantity beyond the above listed "in stock ready for shipment" quantity.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

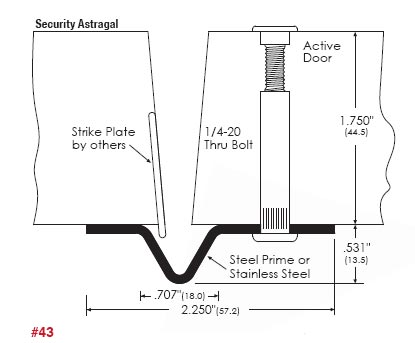

Zero 43SP 84" Steel Prime Security Astragal

Security Astragal
Lenght: 84"
Size: 2.25" W x
Material: Steel Prime
Surface Mount
No notching or grinding for strike is required.

Click for Printable Cut Sheet

Product Brochure

Video Review of Zero 43SP Steel Prime Security Astragal

Video Detail Page

Questions and Answers

Q: does it come with through bolts

A: Yes, the Zero 43SP 84" Steel Prime Security Astragal Includes the sex bolts as referred to here in the manufacturers cut sheet:

Download File

Q: In general, what astragals are available?

A: Types of astragal offered from Steelcraft are as follows:

"Z" Astragal - For information on "Z" astragal types and attachment refer to the TD Manual page 3.3.17.

Most commonly used on double doors

Attachment - screw attached to the edge of the door

Required on 3 hour fire rated doors

For information on "Z" astragal types and attachment refer to the following TD Manual: Active leaf attachment - page 3.3.17. Inactive leaf attachment - page 3.3.18. Double Egress - page 3.3.19.

2-Piece Astragal - For information on "Z" astragal types and attachment refer to the TD Manual page 3.3.17 which can be viewed

Used by several distributors on double doors

Attachment:

Active Leaf - screw attached on the face of the active door Inactive leaf - screw attached to the edge of the inactive door

For information on 2-piece astragal types and attachment refer to the following TD Manual: General information - page 3.3.24. Hardware applications - page 3.3.25.

Flat Plate Astragal -

Can be used on double doors and double egress doors

Attachment - Screw attached or welded on the face of the door

Required on: The top leaf of fire rated dutch doors 1 3/4" thick Flush Transom Panel when used in transom frame without transom bar.

For information on flat plate astragal types and attachment refer to the following TD Manual page 3.3.22.

Other types of astragals supplied by others:

Weather Seal Astragal:

Used on double doors as weather, smoke or sound seals

Attachment - field attached per the manufacturers instructions

Considered a hardware item

Not supplied with the doors
