Zero 369AA 24

Name: Zero 369AA 24" Sill Protection Automatic Door Bottom with Double Neoprene Insert - Mortised - Heavy Duty - Clear Anodized Aluminum
Brand: Zero International
SKU: Zero 369AA 24
Price: 167.11 USD

Zero 369AA 24" Sill Protection Automatic Door Bottom with Double Neoprene Insert - Mortised - Heavy Duty - Clear Anodized Aluminum

× This image is for a similar product but it will differ in size, color and/or other attributes.

Zero 369AA 24" Sill Protection Automatic Door Bottom with Double Neoprene Insert - Mortised - Heavy Duty - Clear Anodized Aluminum

Video Review Zero 369AA Clear Anodized Automatic Door Bottom with Solid Neoprene - Heavy Duty

Price: $167.11 USD

Comments (Optional)

ADD TO CART

This item is not in stock and typically ships in 25 business days for any quantity beyond the above listed "in stock ready for shipment" quantity.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

Zero 369AA 24" Sill Protection Automatic Door Bottom with Double Neoprene Insert - Mortised - Heavy Duty - Clear Anodized Aluminum

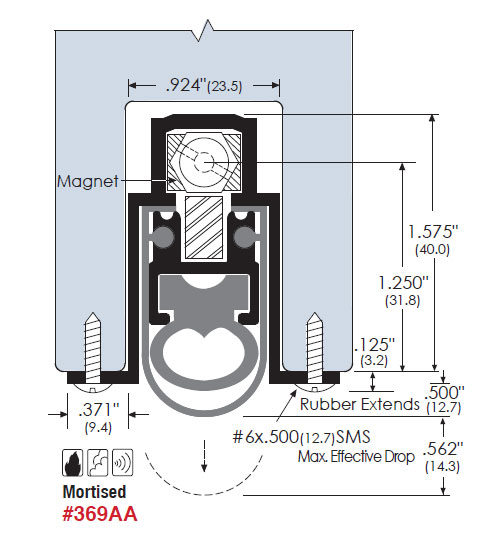

Sill Protection Automatic Door Bottom
Mount: Mortised
Heavy Duty
Insert: Double Neoprene
Finish: Clear Anodized Aluminum
Maximum effective drop: 0.562"
Rated for up to "B" label (1-1/2 hrs.)
Smoke Seal Rated
Sound Rated
Matching #369 End Caps are sold separately
Rated for 5 million cycles

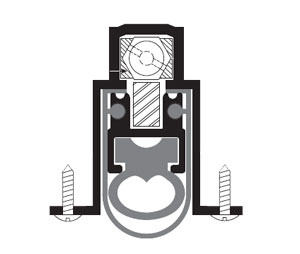

ZERO’s patented automatic door bottom technology ensures a tight seal against the floor or saddle. As the door is closed, an adjustable "plunger" is compressed against the door frame, activating a concealed flat spring mechanism. This mechanism drops the seal smoothly from the housing in a scissor-like motion as illustrated below. The door seal compresses tightly even on uneven surfaces and retracts automatically when the door is opened.
All ZERO automatic door bottoms function the same way. The concealed spring mechanism causes the insert seal to activate on the hinge side first. It prevents the seal from dragging along the floor or threshold while the door is being closed to avoid door hang-up or closing delay.
