Watec WAT-VIVID38MODPAQ

Name: Watec WAT-VIVID38MODPAQ Miniature Board Camera Kit
Brand: Watec
SKU: Watec WAT-VIVID38MODPAQ
Price: 284.95 USD

Watec WAT-VIVID38MODPAQ Miniature Board Camera Kit

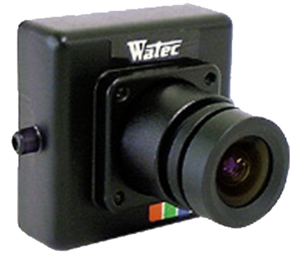

× This image is for a similar product but it will differ in size, color and/or other attributes.

Price: $284.95 USD

Comments (Optional)

This item is not in stock and typically ships in 1 business day.

Sales

Technical Support

Product Description:

Watec WAT-VIVID38MODPAQ Miniature Board Camera Kit

Model: VIVID38MODPAQ

Features:

Kit includes:
- 230A G3.8 Miniature Board Camera
- BOO1 - Mounting Bracket
- 230CB - Cable Assembly
- AD603120VDC - 6V Power Supply

Specification:

30A G3.8 Miniature Board Camera:
- Signal System: NTSC
- Pick-up Element: 1/4" Interline Transfer CCD Image Sensor
- Number of Total Pixels: 811 (H) X 507 (V) (NTSC)
- Effective Pixels: 768 (H) X 494 (V) (NTSC)
- Unit Cell Size: 4.9µm(H) X 5.6µm (V) (NTSC)
- Scanning System: 2:1 interlace
- Synchronizing System: Internal
- Video Output: Composite video, 1Vp-p, 75ohm Unbalanced
- Resolution (Horizontal): 450TV lines (Center)
- Minimum Illumination: 1.6 lx. (F2.0)
- White Balance: Automatic
- Electronic Iris: 1/60~1/100,000 sec.(EIA), 1/50~1/100,000 sec.(CCIR)
- Standard Lens: (Glass, f3.8mm, F2.0) or (Pin hole, f3.7mm, F4.5)
- Power Supply: DC+6V (DC+5.0 - +7.6V)
- Electric Power: 1.08W (typ.) (Current=180mA)
