Home
>
Trim & Auxiliary
>
Push Handle without Plate
>
Standard
>
1" Diameter
>
US32D/630/Satin Stainless Steel
>
Trimco 1741 630
Trimco 1741 630

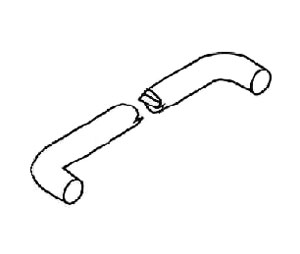

Trimco 1741 630 Push Bar - 1" Dia. Push Bar - Satin Stainless Steel
×
This image is for a similar product but it will differ in size, color and/or other attributes.
×
This product review video is for a similar product but it will differ in size, color and/or other attributes.
Price:
$
175.20 USD
In Stock Ready for Shipment
1. Select Mounting Type
Type E - Thru-bolt & Finish Washer for Right Hand and Right Hand Reverse Applications - 1/4-20 Thread
Type E - Thru-bolt & Finish Washer for Right Hand and Right Hand Reverse Applications - 5/16-16 Thread
Type E - Thru-bolt & Finish Washer for Right Hand and Right Hand Reverse Applications - 3/8-16 Thread (Add $20.63)
Type E - Thru-bolt & Finish Washer for Left Hand and Left Hand Reverse Applications - 1/4-20 Thread (Add $20.63)
Type E - Thru-bolt & Finish Washer for Left Hand and Left Hand Reverse Applications - 5/16-16 Thread (Add $20.63)
Type E - Thru-bolt & Finish Washer for Left Hand and Left Hand Reverse Applications - 3/8-16 Thread (Add $20.63)
Type G - Threaded Shoulder Bolt & Set Screw (Add $12.38)
Type J - Shoulder Bolt & Set Screw only (Add $12.37)
Type J-B3 - Shoulder Bolt & Set Screw with 1/4-20 Thread Bushing for Wood Doors (Add $24.76)
Type J-B4 - Shoulder Bolt & Set Screw with 5/16-18 Thread Bushing for Wood Doors (Add $24.76)
Type J-B5 - Shoulder Bolt & Set Screw with 3/8-16 Thread Bushing for Wood Doors (Add $24.76)
Type J-R3 - Shoulder Bolt & Set Screw with 1/4-20 Thread Riv-Nut for Metal Doors (Add $20.62)
Type J-R4 - Shoulder Bolt & Set Screw with 5/16-18 Thread Riv-Nut for Metal Doors (Add $20.62)
Type L - Spanner Turning Washer & Stud. - Back-to-Back for Wood/Metal Doors (Add $49.50)
Type LW - Spanner Turning Washer & Stud. - Back-to-Back for Glass Doors (Add $66.00)
Type M - Spanner Turning Washer & Stud. for Wood Doors (Add $49.50)
Type M-B5 - Spanner Turning Washer & Stud. with 3/8-16 Thread Bushing for Wood Doors (Add $61.88)
Type M-R5 - Spanner Turning Washer & Stud. with 3/8-16 Thread Riv-Nut for Metal Doors (Add $61.88)
Type N - Flow Thru Button for Right Hand and Right Hand Reverse Applications for Wood/Metal Doors (Add $33.00)
Type N-LTH - Flow Thru Button for Left Hand and Left Hand Reverse Applications for Wood/Metal Doors (Add $41.25)
Type NW - Flow Thru Button for Right Hand and Right Hand Reverse Applications Glass Doors (Add $49.50)
Type NW-LTH - Flow Thru Button for Left Hand and Left Hand Reverse Applications Glass Doors (Add $57.75)
2. Select Door Type
Wood Door
Hollow Metal Door
Glass Door
Other (please specify in Comments field)
3. Select Handing
LH - Left Hand
RH - Right Hand
LHR - Left Hand Reverse
RHR - Right Hand Reverse
4. Select Push Bar Center To Center Range
Up to 34" CTC
Greater than 34" up to 38" (Add $49.50)
Greater than 38" up to 42" (Add $99.00)
Greater than 42" up to 46" (Add $148.50)
Specify Push Bar exact Center to Center length
Specify door thickness
Comments
(Optional)
ADD TO CART
This item is not in stock and typically ships in 14 business days.
Check Inventory
Request Quote
No Minimum
There is no minimum quantity required for this product for quantities up to the level listed below.
Minimum Order Levels Apply
This item has minimum order levels that need to be met.
Check Inventory Levels
Enter your email address and we will check with all available sources and get back to you with exact inventory levels and estimated shipping times.
Qty. Needed:
Request Quote
Enter the qty needed and we will generate a quote and save your order in our system.
You will not be charged and we will not fulfill the order.
Qty. Needed:
+ Add to My Wish List
1-844-809-3667
Sales
sales@absupply.net
Technical Support
tech@absupply.net
Product Description:
Trimco 1741 630 Push Bar - 1" Dia. Push Bar - Satin Stainless Steel
Trimco’s 1700 Series Push/Pull Bars & Sets are manufactured in the United States from solid stainless steel, bronze or brass. These heavy duty bars are available with a multitude of mounting options for most applications including steel, wood and glass doors. Available in most architectural finishes, the Trimco 1700 Series Bars are also offered with a fOCAL designer series option.
Push Bar
Push Bar:
Specify Center to center (CTC) length
Diameter: 1" Diameter
Projection: 3-1/4"
BHMA: J501
Material: Satin Stainless Steel
Mounting: Mounting options:
Type E - Thru Bolt and Finish Washer - choose from 3 different thread sizes
Type G - Threaded Shoulder Bolt & Set Screw - for Bact-to-Back applications
Type J - Shoulder Bolt & Set Screw - choose form riv nut for hollow metal doors or double threaded bushing for wood doors
Type L - Spanner Turning Washer and Stud - for Bact-to-Back applications
Type M - Spanner Turning Washer and Stud - choose from riv nut for hollow metal doors or double threaded bushing for wood doors
Type N - Flow Thru Button - decorative style
NOTE: Push Bars, Push/Pull Bar Sets and custom products are not returnable.
Applications:
Commercial & Industrial Buildings
Government & Military Facilities
Retail & Strip Malls
Hospitality
Multifamily & Mixed-Use
Product Brochure
Tech Sheet
Mounting Methods
Policy Regarding Available Finishes
Product Maintenance
Handing Chart
Video Detail Page
Questions and Answers
There are currently no questions or answers.
(Required, used to email you once question is answered.)
