Trimco 1074-2 81ST003 609

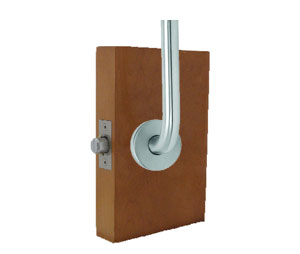

Trimco 1074-2 81ST003 609 Barn Door Latchset - Mortise - Privacy with Cylinder, Thumbturn and Rose Trim - Blackened Satin Brass Koln Lever

• Mortise Barn Door Latchset with Koln Lever
• Privacy Function with Cylinder & Thumbturn
• Rose Trim
• Includes Type 81ST003 Koln Lever
• Lever length: 5-3/8"
• Lever projection: 2-1/3"
• Lever material: Blackened Satin Brass
• 10 Urbãn Style levers to choose from
• Unique barn and sliding door locking solution
• Americans with Disabilities Act (ADA) compliant
• Supplied with high tolerance strike and cylinder
• Postive latching
• Cylinder access on outside; Simple inside thumbturn function
• Levers installed downward for easy opening
• Standard mortise lock prep
• 2-3/4" backset (lock)
• One-step egress from the inside
• Door projects only 3-7/8" from pocket when fully opened
• Supplied with escutcheon plates for simple installation
• Mortise lock is UL listed
• Available with occupancy indicator on outside of door (additional charge applies)
• Privacy button on inside and emergency access on outside
• For Doors from 1-3/8" to 2-1/2" thick (thicker door? specify)
• Cast
• Levers install vertically only
• Not recommended for doors 1-3/8" thick; Order 1074-2E instead
• Applications:
• Commercial & Industrial Buildings
• Government & Military Facilities
• Hospitality
• Multifamily & Mixed-Use
• Office Buildings
• For quantites greater than 10 pieces request a quote prior ordering.
• Non-returnable finishes are: 499, 609, 610, 611, 612, 613, 616, 619, 620 and 622.
• Get a quote if ordering 10 or more pieces.
