TownSteel MSE-L 05 R US3

Name: TownSteel MSE-L 05 R US3 Standard Low Escutcheon Style Single Cylinder Classroom Function Heavy Duty Mortise Lock with Regal Knob - Polished Brass
Brand: TownSteel
SKU: TownSteel MSE-L 05 R US3
Price: 453.57 USD

TownSteel MSE-L 05 R US3 Standard Low Escutcheon Style Single Cylinder Classroom Function Heavy Duty Mortise Lock with Regal Knob - Polished Brass

× This image is for a similar product but it will differ in size, color and/or other attributes.

TownSteel MSE-L 05 R US3 Standard Low Escutcheon Style Single Cylinder Classroom Function Heavy Duty Mortise Lock with Regal Knob - Polished Brass

Price: $453.57 USD

5. Indicate Key Stamping Information (Optional)

Comments (Optional)

ADD TO CART

This item is not in stock and typically ships in 3-5 business days.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

MSE-L 05 R US3 Standard Low Escutcheon Style Single Cylinder Classroom Function Heavy Duty Mortise Lock with Regal Knob - Polished Brass

The MS series Mortise Lock is designed for High Traffic commercial areas such as schools, universities, office buildings and industrial complexes
It offers 40 types of trim combinations available in 8 BHMA finishes, plated or stainless steel
Available in both Clutched and Regular configurations
ANSI/BHMA Certified Grade 1 Mortise Lockset
UL & ULC Listed 3-Hour Fire Rating
Single Cylinder
Escutcheon Style: Standard Escutcheon - Low (L)
Function: Classroom (05)
Trim: Regal (R) Knob Trim
Finish: Polished Brass (US3)
Please Select Handing when placing an order.

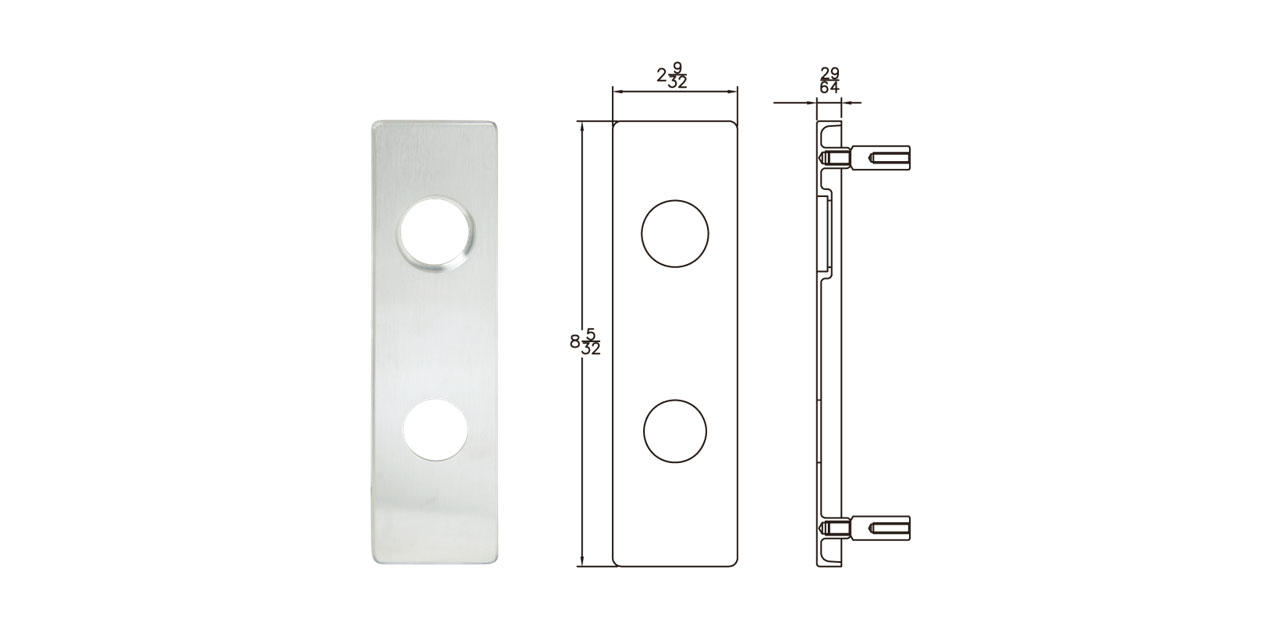

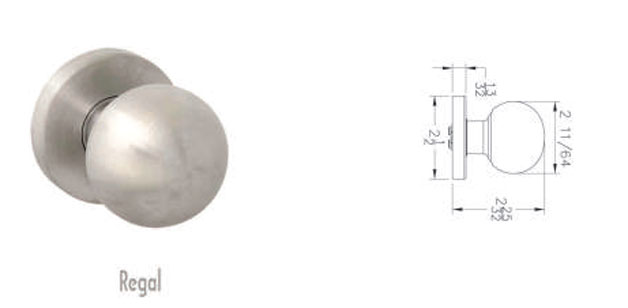

Regal Knob Trim Type Click to Enlarge	Low Escutcheon Style Dimensions Click to Enlarge

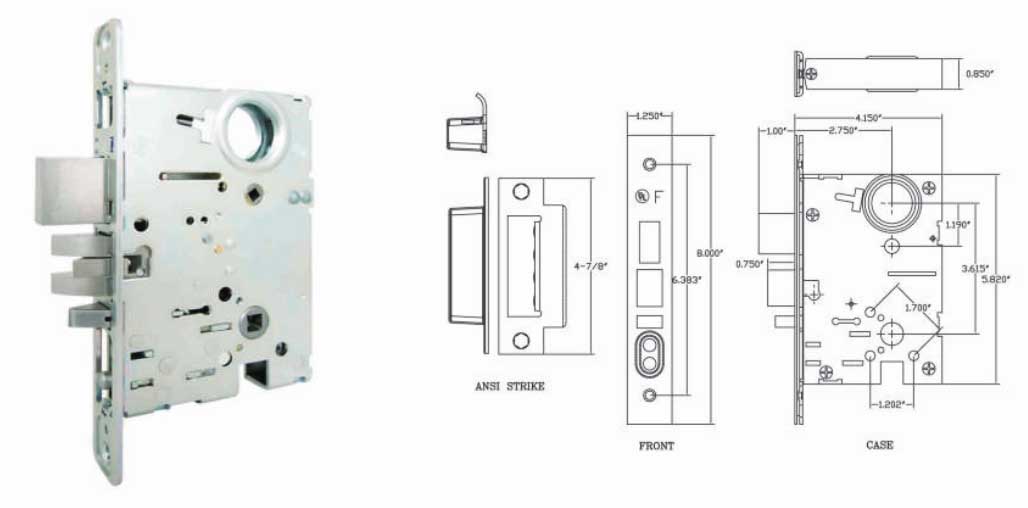

MS Series Mortise Lock Profile	Handing Chart

Click to Enlarge	Click to Enlarge

Keying Options - Please Select Keying Option, Key Quantity and Key Stamping when placing an order.

Select Keying Option: KD standard, KA, MK available. Select Quantities of Keys: 2 keys are included with the lock itself, however additional keys are available for additional charge. Keying charge includes Two keys per change. Master Key Not included. Select Key Stamping: If key stamping is required an additional fee wil be charged. Please select the number of keys equal to the quantity of keys selected above. Indicate Key Stamping Information (Optional): Please provide us with a max. 6 characters.

Additional Product Information

Door Thickness: 1-3/4" Standard Backset: 2-3/4" Latchbolt: Stainless Steel, Split, Anti-Friction, 3/4" Projection Deadbolt: Stainless Steel, Anti-Saw with Hardened Pins, 1" Projection Guardbolt: Stainless Steel Strike: Stainless Steel or Plated Steel, 1-1/4" x 4-7/8" Faceplate: Brass or Stainless Steel, 1-1/4" wide Stop Works: Stainless Steel, Rocker Type Escutcheon: Brass or Stainless Steel, 8-5/32" x 2-9/32" Lever: Brass or Stainless Steel, Available in Artistic, Congress, Gala, Imperial, Quest, Regal, Sentinel, Tango Thumb Turn: Brass or Stainless Steel, Classic Visible standard, Classic Conceal and ADA available Finish: US26D, US15, US10, US10B, US32D, US3, US4, US26, US32 Function: Most ANSI functions available Cylinder: 6Pin, Brass, Schlage C keyway, 2 keys per cylinder, standard Small Format IC: Available, with or without Core, 6 or 7Pin Brass Core, 2 keys per Cylinder Schlage Large Format IC: Available in less core Corbin Large Format IC: Available in less core High Security Cylinder: Available, TownSteel "L" keyway, 6pin, 2 keys per cylinder High Security SFIC: Available, TownSteel "L" keyway, 7pin, 2 keys per cylinder Keying: KD standard, KA, MK, GMK, GGMK, Construction Available Code Compliance: UL: UL 10C Listed 3-hour fire rated ANSI/BHMA: A156.13-2005 Grade 1 Certified BAA: Meet the Buy American Act ADA: All lever trims meet the American with Disabilities Act RoHS: Meet requirement of EU RoHS Directive 2002/95EC Warranty: 10-Year Limited TownSteel has been manufacturing commercial hardware for over 25 years. They take pride in their ability to maintain a product that keeps people safe. Over 25 years, they've grown into an international enterprise with major category-leading security products sold in over 20 countries.
