- Applications: Institutional, government/military, retail and multi-family
- Handling: Non-Handed. ADA compliant.
- Door Thickness: 1-3/8" to 2-1/4" wood or metal doors
- Backset: 2-3/4" Standard, 2-3/8" Optional
- Faceplate: Forged brass or stainless steel, 1-1/8" x 2-1/4"
- Lock Chassis: Zinc plated for corrosion resistance

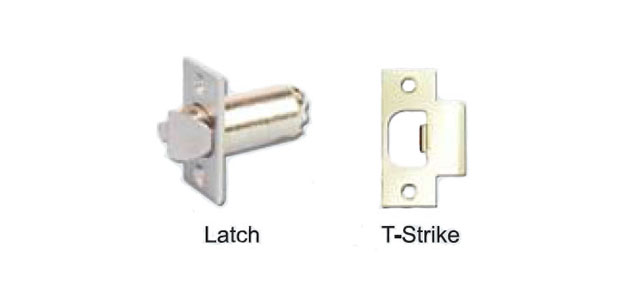

- Latch Bolt: Stainless steel, 1/2" throw, deadlocking on keyed functions
- Exposed Trim: Wrought brass or stainless steel rose, cast zinc lever
- Strike: ASA, 1-1/4" x 4-7/8" x 1-5/16" standard, T-Strike standard
- Cylinder: 6Pin brass, Schlage "C" keyway, 2 keys per cylinder
- High Security Cylinder: Available in 6Pin, TownSteel "L" keyway
- High Security SFIC Core: Available in 7Pin, TownSteel "L" keyway
- Schlage Large Format IC: Schlage Large Format I.C. Less Core available, for 6pin Core
- Small Format IC: Small format IC available, 6 or 7pin, Best "A" keyway
- Keying: KD Standard, KA, MK, GMK, GGMK, Construction Available
- Finish: US26D, US10B stocked, other upon request
- Function: ANSI F75, F76, F84, F86, F87, F109 stocked, other upon request

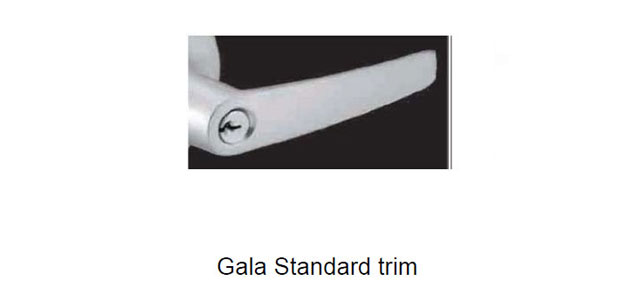

- Lever Style: Sentinel (S), Quest (Q), and Gala (G)
- Door Preparation: NSI A115.2, through bolt installation
- Code Compliance:
- ANSI/BHMA: A156.2-2011 4000 Series Grade 2 Certified
- UL: UL 10C Listed 3-hour fire rated
- ADA: Meet Requirements of The Americans with Disabilities Act
- BAA: Meet Guidelines of The Buy Amercian Act
- CSFH: Sentinel and Quest Lever Designs meet California State Reference Code (CSFH)
- Warranty: 10-Year Limited for Mechanical, 5-Year for Finishes
- TownSteel has been manufacturing commercial hardware for over 25
years. They take pride in their ability to maintain a product that keeps
people safe. Over 25 years, they've grown into an international enterprise
with major category-leading security products sold in over 20 countries.
|
