TOA Electronics, Inc. TOA-CCC364
TOA Electronics, Inc. TOA-CCC364

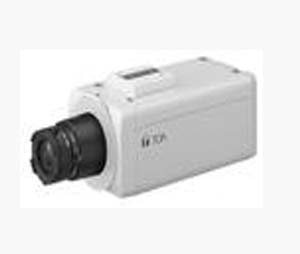

TOA Electronics, Inc. TOA-CCC364 Wide Dynamic Range Color Camera
×
This image is for a similar product but it will differ in size, color and/or other attributes.
×
This product review video is for a similar product but it will differ in size, color and/or other attributes.
Price:
$
377.99 USD
In Stock Ready for Shipment
Comments
(Optional)
ADD TO CART
This item is not in stock and typically ships in 1 business day.
Check Inventory
Request Quote
No Minimum
There is no minimum quantity required for this product for quantities up to the level listed below.
Minimum Order Levels Apply
This item has minimum order levels that need to be met.
Check Inventory Levels
Enter your email address and we will check with all available sources and get back to you with exact inventory levels and estimated shipping times.
Qty. Needed:
Request Quote
Enter the qty needed and we will generate a quote and save your order in our system.
You will not be charged and we will not fulfill the order.
Qty. Needed:
+ Add to My Wish List
1-773-809-3667
Sales
sales@absupply.net
Technical Support
tech@absupply.net
Product Description:
TOA Electronics, Inc. TOA-CCC364 Wide Dynamic Range Color Camera
Model: CCC364
Specifications:
Power Source: 24 VAC, 50/60 Hz or 12VDC
Power Consumption: 4W (maximum current: 800 mA)
Image Device: 1/3 type IT-CCD
Number of Effective Pixels: 752 (H) × 582 (V) (440000 pixels)
Scanning System: 2:1 interlace
Scanning Frequency: Horizontal: 15.625 kHz; Vertical: 50.00 Hz
Video Output: VBS 1.0 V (p-p), 75 O, BNC
Synchronizing System: Internal /Line Lock (phase adjustable)
Resolution: Horizontal: 500 lines; Vertical: 410 lines
S/N Ratio: 50 dB (AGC OFF)
Minimum Illumination: 0.5 lx (350 mV), 0.1 lx (140 mV) (F1.0) (sensitivity up: OFF) (color mode) 0.01 lx (F1.0) (sensitivity up: ON) (B&W mode, incandescent lamp)
Automatic Electric Shutter Range: 1:2400 (F1.4 - 68)
Dynamic Range: 46 dB (backlight compensation: WIDE DYNAMIC operation)
Backlight Compensation: WIDE DYNAMIC/ON/OFF
Shutter Speed: 1/50, 1/120, 1/125, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000
AGC: Auto/Fixed/OFF
Sensitivity Up: OFF, 2, 4, 6, 8, 10, 16, 24, 32, 64 times
White Balance Mode: ATW/AWB/Manual
Character Display: Up to 16 characters (alphanumeric and symbols)
Other Function:
Privacy Masking
Electronic Zoom (2×)
Horizontal/Vertical reverse
Synchronization position switching (DIP switch)
Flickering reduction (DIP switch)
Focus adjustment switch (DIP switch)
Chroma Level: Normal/Manual (MIN. - MAX.)
Enhancer: Normal/Manual (soft - sharp)
Alarm Input:
1 channel
No-voltage make contact input
Open voltage: 10 V DC
Short-circuit current: Under 5 mA
Loop resistance: Under 200 O (alarm output from the camera remote unit)
Screwless connector
Motion detector (alarm output from the camera remote unit)
Color/B&W Switching Input:
1 channel
No-voltage make contact input
Open voltage: 10 V DC
Short-circuit current: Under 5 mA
Loop resistance: Under 200 O (alarm output from the camera remote unit)
Screwless connector
Lens Mount: CS mount
Auto-Iris Lens Output: DC input type/VIDEO input type (4 pin connector)
Operating Temperature: -10°C to +50°C
Operating Humidity: Under 90% RH (no condensation)
Applications: Indoor use
Finish: Case: Surface-treated steel plate, sand gray
Dimensions (W x H x D): 69.5mm × 65.1mm × 137.1mm
Weight: 450 g
