SureCall SCL-SCPOLYO72ODKIT

copy to clipboard

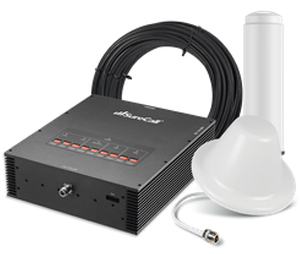

SureCall SCL-SCPOLYO72ODKIT Force5™ Five-Band Cell Phone Signal Solution for Large Buildings

enlarge
enlarge
× This image is for a similar product but it will differ in size, color and/or other attributes.
SureCall SCL-SCPOLYO72ODKIT Force5™ Five-Band Cell Phone Signal Solution for Large Buildings
More from SureCall
Price: $3,779.93 USD
Ships From
Comments (Optional)
This item is not in stock and typically ships in 1 business day.

1-844-809-3667

Sales
Technical Support
Product Description:
SureCall SCL-SCPOLYO72ODKIT Force5™ Five-Band Cell Phone Signal Solution for Large Buildings
Model: SCPOLYO72ODKIT
Features:
  • Boosts voice, text and 4G LTE signals for all North American cell carriers
  • Reduces dropped & missed calls
  • Increases signal strength & extends battery life for all cellular devices
  • Supports 100+ simultaneous users
  • Coverage for large buildings, 25000+ Sq Ft
  • Multiple kitting options provide the flexibility to customize installation for any building or floor plan
  • SENTRY Remote Monitoring System included
Specification:
  • Frequency:
    • Uplink: 698-716 / 776-787 / 824-849 / 1850-1915 /1710-1755 G Block Included
    • Downlink: 728-746 / 746-757 / 869-894 / 1930-1995 / 2110-2155 G Block Included
  • Input Impedance: 50O
  • Average Gain: 65dB
  • Maximum Gain: 65dB Cellular / 72dB PCS / 63.5 LTE (A), 64dB LTE (V), 71dB AWS
  • VSWR: <2.0
  • Standard Supported: CDMA / WCDMA, GSM, EDGE, HSPA+, EVDO, LTE, etc.
  • AC Power Transformer:
    • Input: AC 110V, 60Hz
    • Output: DC 19V
  • Maximum RF Output Power: 1W EIRP
  • Noise Figure: 8dB
  • Cable: SureCall 400
  • RF connectors: N Female connectors on both ends
  • Power Consumption: <50W
  • Dimensions: 12.5" x 11" x 3.5"
  • Weight: 18 lbs
