US10BE/10BE/Dark Oxidized Satin Bronze, Equivalent
>
Rockwood LP6061DBD-10BE
Rockwood LP6061DBD-10BE
Rockwood LP6061DBD-10BE English Bridle Leather Wrapped Round Locking Door Pull - Half Height - Bolts Down - Dark Oxidized Satin Bronze, Equiv.
×
This image is for a similar product but it will differ in size, color and/or other attributes.
×
This product review video is for a similar product but it will differ in size, color and/or other attributes.
Price:
$
5,079.27 USD
In Stock Ready for Shipment
1.Select Handing
LH - Left Hand
RH - Right Hand
LHR - Left Hand Reverse
RHR - Right Hand Reverse
2.Indicate Vertical Exterior Overall Pull Length
Vertical exterior overall pull length up to 51"
Vertical exterior overall pull length from 51" up to 60" (Add $193.05)
Vertical exterior overall pull length from 60" up to 72" (Add $450.45)
Vertical exterior overall pull length from 72" up to 84" (Add $707.85)
Vertical exterior overall pull length from 84" up to 96" (Add $965.25)
Vertical exterior overall pull length from 96" up to 108" (Add $1,222.65)
Vertical exterior overall pull length from 108" up to 120" (Add $1,480.05)
3.Indicate Vertical Interior Overall Pull Length
Vertical interior overall length up to 51"
Vertical interior overall length from 51" up to 60" (Add $193.05)
Vertical interior overall length from 60" up to 72" (Add $450.45)
Vertical interior overall length from 73" up to 84" (Add $707.85)
Vertical interior overall length from 85" up to 96" (Add $965.25)
Vertical interior overall length from 97" up to 108" (Add $1,222.65)
Vertical interior overall length from 109" up to 120" (Add $1,480.05)
4.Select Leather Color
English Bridle Light Brown
English Bridle Burgundy
English Bridle Medium Brown
English Bridle Dark Brown
English Bridle Black
5.Crating and Handling Charge
Unit Length up to 90" Overall Length
Unit Length over 90" Overall Length (Add $175.00)
6.Select Exterior Cylinder type
Not required (supplied by others)
Yale 1109 Conventional Cylinder
SFIC Small Format Interchangeable Core Housing
LFIC Large Format Interchangeable Core Housing
Schlage C Conventional Cylinder
Standard Post Mount Thumbturn
ADA Thumbturn (Add $26.40)
7.Select Interior Cylinder type
Not required (supplied by others)
Yale 1109 Conventional Cylinder
SFIC Small Format Interchangeable Core Housing
LFIC Large Format Interchangeable Core Housing
Schlage C Conventional Cylinder
Standard Post Mount Thumbturn
ADA Thumbturn (Add $26.40)
8.Select Keying Option
Cylinder keyed different
Cylinder keyed alike (Add $15.00)
9.Select Bottom Strike
No bottom strike required (supplied by others)
LPS01 strike required (Add $105.60)
LPS02 strike required (Add $105.60)
LPS03 strike required (Add $44.55)
LPS04 strike required (Add $79.20)
LPS05 strike required (Add $87.12)
#570 Dust Proof Strike Required (Add $20.63)
10.Select Door Type
Swing
Sliding
11.Select Door Material
Aluminum door
Wood door
Hollow metal door
Glass door
Other - indicate type in Comments field
12.Select Door Stop
Not required
One (1) RM850 required (Add $24.75)
Two (2) RM850 required (Add $49.50)
One (1) RM851 required (Add $33.00)
Two (2) RM851 required (Add $66.00)
One (1) RM850 and one (1) RM851 required (Add $57.75)
13.Select Door Thickness
1-3/4" door thickness
Other than 1-3/4" thickness (indicate below) (Add $50.00)
14.Insert Door Thickness
15.Insert Door Clearance at Bottom
16.Insert Door Overall Height
17.Insert Exterior Vertical Pull Overall Length
18.Insert Interior Vertical Pull Overall Length
19.Insert Exterior Vertical Pull Center to Center (CTC) Length
20.Insert Interior Vertical Pull CTC Length
Comments
(Optional)
ADD TO CART
This item is not in stock and typically ships in 10 business days.
Check Inventory
Request Quote
No Minimum
There is no minimum quantity required for this product for quantities up to the level listed below.
Minimum Order Levels Apply
This item has minimum order levels that need to be met.
Check Inventory Levels
Enter your email address and we will check with all available sources and get back to you with exact inventory levels and estimated shipping times.
Qty. Needed:
Request Quote
Enter the qty needed and we will generate a quote and save your order in our system.
You will not be charged and we will not fulfill the order.
Qty. Needed:
+ Add to My Wish List
1-844-809-3667
Sales
sales@absupply.net
Technical Support
tech@absupply.net
Product Description:

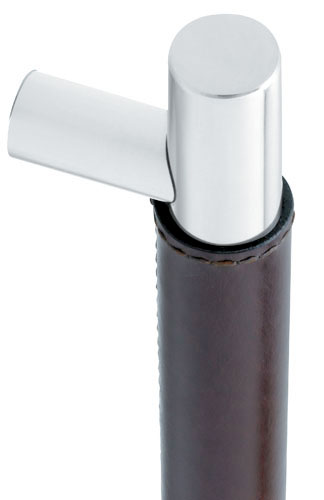

Rockwood LP6061DBD-10BE English Bridle Leather Wrapped Round Locking Door Pull - Half Height - Bolts Down - Dark Oxidized Satin Bronze, Equiv.

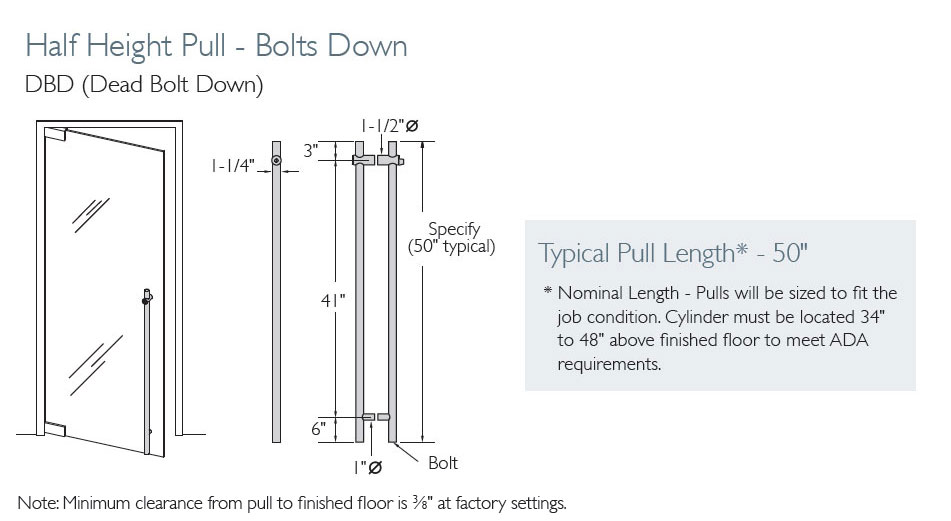

English Bridle Leather Wrapped Round Locking Door Pull
Half Height - Bolts Down
Material size: 1-1/4" diameter of metal grip, leather thickness is about 1/8" additional
Material: Dark Oxidized Satin Bronze, Equiv.
These Locking Pulls are always sold as sets, when you buy a set of them mount it back to back.
Mounting: Type 5HD for wood or metal doors or Type 13HD for glass doors
These are the two mounting types that the mounting is based off of. Your exact mounting requirements are determined by the door type and door thickness.
It is important that the mounting type has to be correct at the very first time. No field modifications of this material are available for switching door type or door thickness. In the event a change needing to be made to a set of locking pulls after manufacturing, involves sending the set of pulls back to the factory to be re-manufactured.
Key operated from outside, turn piece on inside
Multiple locking options available: floor, head or both
Bolt location: 2" from face of door to centerline of bolt. Bolt has 13/16" travel with fine adjustment.
Custom engraving available, contact us for pricing.
Benefits:
Cylinder and thumbturn location eliminates physical strain when locking and unlocking
Glass door applications secure the opening without bulky patch fittings or rails
Bolt concealed inside pull provides a clean, streamlined look
Simple door preparation allows for faster installation - Requires only 2 holes for half height pulls, 3 holes for full height
Suites with popular ROCKWOOD door pulls, CORBIN RUSSWIN and SARGENT lever handles, MCKINNEY hinges, creating a continuum of design
Offers flexibility in custom sizes for a variety of applications
Ordering:
Specify exterior and interior pull overall length
Specify exterior and interior pull CTC length
Cylinders can be keyed different or alike. Cylinder keyed alike is when cylinders are on both sides of the door. Two keys are provided for every cylinder.
Following cylinder options are available
Yale 1109 rim cylinder, 6-pin, 1147 tailpiece, E1R keyway (keyed random)
Yale K680 Small format interchangeable core housing (SFIC)
Large format interchangeable core housing (LFIC)
Shlage C Conventional Cylinder
Thumbturn options: PostMount Thumbturn (standard), GeoMetek Thumbturn (standard for GeoMetek style locking pulls), ADA Thumbturn (PostMount only)
It is permissible to use any strike, either top or bottom, so long it meets the design and application requirements of the opening.
Top strike options are: LPS01 3/4" x 1-1/2" x 3", LPS02 3/4" x 2-1/2" x 3", LPS03 .050" x 1-1/8" x 2-1/4", LPS04 1-1/4" diam x 4-1/2" height, LPS05 1-1/4" diam x 4-1/2" height
Bottom strike is #570 Dustproof Strike
Door types: 3/8" - 7/8" thick glass, 1-3/8" to 2-1/2" thick aluminum, hollow metal or wood doors
Specify door clearance at the bottom
Select door stop options
Specify door handing
Specify leather color
Note:
These Rockwood Locking Pulls are custom made, made to order and are non-returnable and non-cancealable once order is confirmed from factory.
Product Brochure
Application details for Glass Doors
Application details for Wood or Metal Doors
Strike Options
Installation Instructions
Printable Cutsheet
