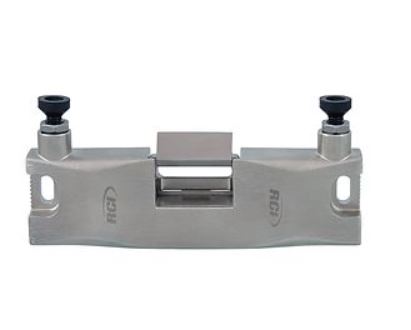

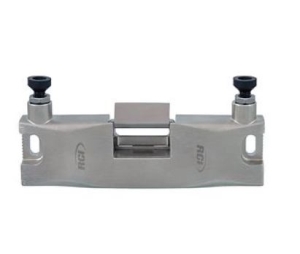

RCI VR165-32D

The VR165 vertical rod strike is designed for use with vertical rod exit devices with roller latch. This surface mounted strike accommodates 5/8" roller latch. The heavy-duty RCI VR165 is made of high grade stainless steel offering superior keeper strength. The conventional keeper design (one moving part) promotes even load distribution. To prevent vibration manipulation the RCI VR165 has a horizontal solenoid. Lockdown tabs provide a secure mount with HEX socket head cap screws for added support and tamper resistance.

• Accommodates 5/8" (16mm) roller latch
• Heavy-duty, surface mounted strike
• High grade stainless steel ensures superior keeper strength
• Ensure proper latch alignment – up to 1/4" (6.4mm) adjustment to compensate for door and frame misalignments
• Door stop adjustment for different rail thicknesses
• Horizontal solenoid prevents manipulation from vibration
• Conventional keeper design (one moving part) - promotes even load distribution
• Lockdown tabs for secure mount
• Non-handed
• Finish: Satin Stainless Steel
• HEX socket head cap screws for added support and tamper-resistance
• Plug-in wire connector
• Installation tool included (HEX key)
• 450mA Field-Selectable 12/24VDC & 12-24VAC (Max at 12VDC)
• 1,500lbf Static 70 Dynamic ft-lb
• 250,000 Cycles
• Fail-Secure
• 5 Year Limited Warranty
• Packing & Sold as: Each.
• Note: Unit of measure is EA. When you buy a quantity of 1 you will get one piece. Price is for one piece.
