RCI S6504LMKM-32D

copy to clipboard

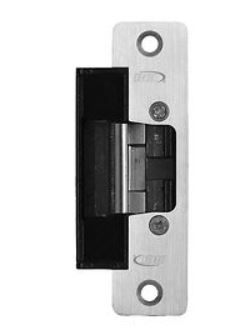

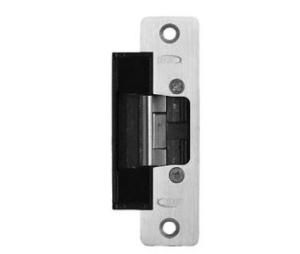

RCI S6504LMKM-32D Electric Strike, 4-7/8" Round Corner Faceplate, Satin Stainless Steel

enlarge
enlarge
× This image is for a similar product but it will differ in size, color and/or other attributes.
RCI S6504LMKM-32D Electric Strike, 4-7/8" Round Corner Faceplate, Satin Stainless Steel
More from RCI
Price: $178.29 USD
Ships From
In Stock (Minimums Apply):
For quantities beyond the "In Stock" above, the item(s) ships in 1 business day.
Additional Declarations - This manufacturer has an order minimum of $85.00 - if your total is less than this amount, the lead time approximately 2-3 weeks before it would ship. Simply exceed this minimum order amount so that we can drop ship the material to your location.

1-844-809-3667

Sales
Technical Support
Product Description:
RCI S6504LMKM-32D Electric Strike, 4-7/8" Round Corner Faceplate, Satin Stainless Steel

The 6 series centerline strikes are available in standard profile or low-profile options to accommodate different latch projections. This heavy-duty series combines several requested key features. Standard features include a multi-voltage single solenoid, selectable lock mode (no tools necessary), horizontal adjustment, and plug-in wire connectors. ¼" horizontal adjustment makes installations faster and easier. Plus, with the RCI 6 series there will be less pressure on installer’s strike inventory, because these RCI strikes do it all.

  • For 5/8" Projection Latches
  • Plug-in wire connectors
  • Trim plate included to cover up irregular frame cut-out
  • Non-handed
  • 375mA Field-Selectable 12/24VDC, 12-24VAC (At 12VDC)
  • 1,500lbf Static 70ft-lb Dynamic
  • 500,000 Cycles
  • Fail Safe/Fail Secure
  • Finish: Satin Stainless Steel
  • 4-7/8" Round Corner Faceplate
  • Latch and Keeper Monitor
  • Standard Insert Depth: 1-3/16"D (30mm)
  • 3 Year Limited Warranty
  • Packing & Sold as: Each.
  • Note: Unit of measure is EA. When you buy a quantity of 1 you will get one piece. Price is for one piece.
