Product Description:

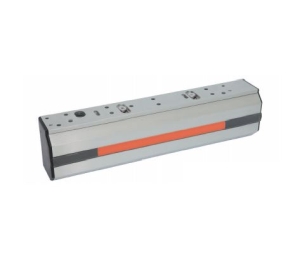

RCI DE8310S28 Delayed Egress Magnetic Lock with 960 Switch and Built In Sounder

The DE8310 Delayed Egress all-in-one lock can detect when pressure is applied to a door and can be field selected with a release delay of 15 or 30 seconds. This perimeter door solution is unique in that there is no need to replace existing door hardware, making it an easy and affordable access solution. The RCI DE8310 includes an external alarm sounder, keyswitch for reset and override, and a building code sign for single outswinging doors. The RCI DE8310-S includes a built-in sounder rather than the external sounder in the base unit. This electromagnetic lock series can be monitored locally or remotely through relay outputs. It is ideal for applications requiring loss prevention, life safety, and traffic control.

  • Unique highly visible red/green light panel indicates status of door (local)
  • Includes 960 Keyswitch for reset and override, Building Code Sign and base unit (DE8310) includes a 914 External Sounder
  • Dry contact SPDT and DPDT relays provided for local and/or remote monitoring
  • Keyhole mounting for ease of installation
  • Convenient plug-in wiring harnesses
  • Easy-access wiring cavity
  • Stabilizing 4-bolt "drop stop" mounting
  • Surge protection
  • Frequency of 125kHz(Using 1326R Proximity Card (Clamshell) with 12VDC at the reader)
  • Brushed Anodized Aluminum Finish
  • Dimensions: 11-3/4"W x 2-7/8"H x 2-1/8"D (299mm x 73mm x 54mm) – Includes 1/4" (6mm) mounting bracket
  • Armature Plate: 7-7/16"W x 2-3/8"H x 5/8"D (190mm x 61mm x 16mm)
  • Warranty: 5 Year Limited Warranty
  • Packing & Sold as: Each.
  • Note: Unit of measure is EA. When you buy a quantity of 1 you will get one piece. Price is for one piece.
