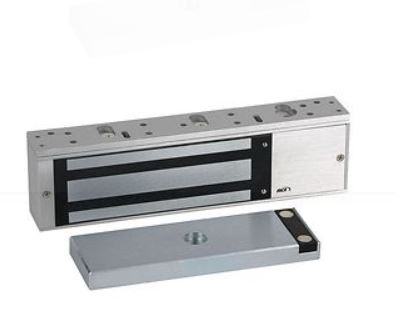

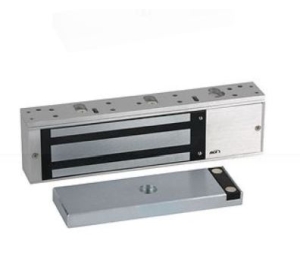

RCI 831028IQINTELLIMAG

The IQ IntelliMag® series of electromagnetic locks recognize only their individually registered and encoded armature plate. This enhanced security feature prevents “tricking" the magnet, making it an excellent fit for high security applications. The RCI 8310-IQ IntelliMag® is used for single outswinging doors.

• Two independent relay outputs allow for lock status and alarm status for local and/or remote indication
• Alarm time setting
• Keyhole mounting for ease of installation
• Easy-access wiring cavity
• Stabilizing 4-bolt “drop stop" mounting
• Surge protection
• Built-in time delay (instant release with adjustable relock, programmable from 0-90 seconds)
• 590mA Field-Selectable 12/24VDC (Max at 12VDC)
• Up to 1,200lbf Holding Force
• Fail-Safe
• Illegal armature plate alarm
• Includes 5/8" (16mm) armature plate
• CAN/ULC S104 Auxiliary Locks Listed for fire doors rated up to 1-hour
• UL 10C Auxiliary Locks Listed for fire doors rated up to 1-hour
• California State Fire Marshal Listed (CSFM: 3774-2127:0100)
• Finish: Brushed Anodized Aluminum
• Dimensions: 10-1/2"W x 2-7/8"H x 1-5/8"D (268mm x 73mm x 41mm) – Includes 1/4" (6mm) mounting bracket
• Armature Plate: 7-7/16"W x 2-3/8"H x 5/8"D (190mm x 61mm x 16mm)
• Lifetime Limited Warranty
• Note: Images may not represent actual product and finish
• Packing & Sold as: kit.
• Note: Unit of measure is kit. When you buy a quantity of 1 you will get one kit. Price is for one kit.
