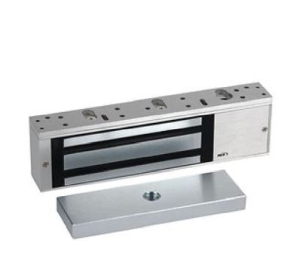

RCI 831028

The MultiMag® series of electromagnetic locks are designed for easy installation and multi-purpose operation for interior or perimeter doors. The mounting bracket has keyhole mounting to support the magnet, freeing the installer's hands to affix the magnet mounting screws. The removable cavity cover offers quick, easy access to wiring. The RCI 8310 MultiMag® applies to single outswinging doors

• Keyhole mounting for ease of installation
• Built-in time delay (instant release with adjustable relock, programmable from 0-90 seconds)
• Convenient plug-in wiring terminals
• Easy-access wiring cavity
• Stabilizing 4-bolt “drop stop" mounting
• Surge protection
• Designed to overcome residual magnetism
• 230mA Auto-Sensing 12-24VDC (Max at 12VDC)
• Up to 1,200lbf Holding Force
• Fail-Safe
• Hardened steel armature nut
• Self-drilling Teks® fasteners
• Includes 5/8" (16mm) armature plate
• UL 294 Special Locking Arrangement Component (6th Edition)
• UL 10C Auxiliary Locks Listed for fire doors rated up to 1-1/2-hours
• California State Fire Marshal Listed (CSFM: 3774-2127:0100)
• Finish: Brushed Anodized Aluminum
• Dimensions: 10-1/2"W x 2-7/8"H x 1-5/8"D (268mm x 73mm x 41mm) – Includes 1/4" (6mm) mounting bracket
• Armature Plate: 7-7/16"W x 2-3/8"H x 5/8"D (190mm x 61mm x 16mm)
• Lifetime Limited Warranty
• Note: Images may not represent actual product and finish
• Packing & Sold as: kit.
• Note: Unit of measure is kit. When you buy a quantity of 1 you will get one kit. Price is for one kit.
