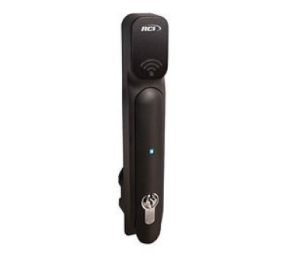

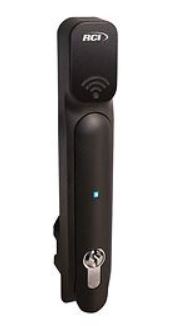

RCI 3525PRX

The 3525 & 2525PRX rack handle provides intelligent electronic locking and monitoring capabilities. The electronic locking rack handle provides the functionality of a manual latching system with the added benefit of electronic locking for access control and remote access control monitoring. Integrated lock sensors provide local LED indication plus generate output signals for remote monitoring. It can be combined with any access control device for a basic self-contained electronic access solution and high security applications with DIN lock for mechanical key override. The RCI 3535PRX features an add-on proximity reader for recognizing 125kHz HID employee RFID prox cards.

• Easy to install and use
• Local monitoring with multi-color LED indicator
• Remote lock and unlock control
• Single or multi-point locking
• Low current, gear motor driven mechanism
• Momentary or continuous lock actuation
• High security DIN lock for mechanical key override
• Non-handed
• Wire harness and hardware kit included
• Includes three keys (keyed alike)
• Activated via any third party control system (Access Control)
• PoE adaptable
• Housing, handle and mounting bracket are made of black, glass-filled nylon
• Shaft and rotation limiter are made of die-cast zinc with a bright sealer finishing
• 200mA Field-Selectable 12-24VDC (Typical: less than 200mA at 12VDC, max/stall: 1A, standby: 50mA max, output signal: 100mA max load, card reader module: 60mA max)
• Lock & Handle Status
• 125kHz HID® Proximity Reader
• Dimensions: 1-1/2"W x 8-1/4"H x 1"D (37mm x 210mm x 24.5mm)
• 1 Year Limited Warranty
• Packing & Sold as: Each.
• Note: Unit of measure is EA. When you buy a quantity of 1 you will get one piece. Price is for one piece.
