Protection Technologies PRT-SDI77XL2VWC
Protection Technologies PRT-SDI77XL2VWC

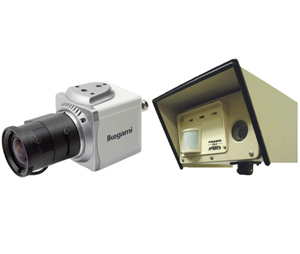

Protection Technologies PRT-SDI77XL2VWC Piramid XL2 Outdoor Motion Sensor with Camera
×
This image is for a similar product but it will differ in size, color and/or other attributes.
×
This product review video is for a similar product but it will differ in size, color and/or other attributes.
Price:
$
1,493.14 USD
In Stock Ready for Shipment
Comments
(Optional)
ADD TO CART
This item is not in stock and typically ships in 1 business day.
Check Inventory
Request Quote
No Minimum
There is no minimum quantity required for this product for quantities up to the level listed below.
Minimum Order Levels Apply
This item has minimum order levels that need to be met.
Check Inventory Levels
Enter your email address and we will check with all available sources and get back to you with exact inventory levels and estimated shipping times.
Qty. Needed:
Request Quote
Enter the qty needed and we will generate a quote and save your order in our system.
You will not be charged and we will not fulfill the order.
Qty. Needed:
+ Add to My Wish List
1-773-809-3667
Sales
sales@absupply.net
Technical Support
tech@absupply.net
Product Description:
Protection Technologies PRT-SDI77XL2VWC Piramid XL2 Outdoor Motion Sensor with Camera
Model: SDI77XL2VC
Features:
Stereo Doppler Microwave Detector:
Two receiving channels with the ability to eliminate vibration and periodically moving objects as sources of false alarms
Dual Element Infrared Detector:
Ignores normal temperature variations yet is very responsive to rapid infrared changes created by an intruder
Balanced Temperature Compensation:
Stereo Doppler Microwave and Passive Infrared portions automatically adjust detection parameters to compensate for losses in range that occur at elevated temperatures
Stereo Doppler Supervision:
A component failure will cause the sensor to lock-in alarm
Digital Range Control:
Ten-position digital switch adjusts how far the sensor detects (to it's maximum range)
Digital Sensitivity Control:
Ten-position digital switch adjusts the amount of movement required to initiate an alarm condition
Enhanced Bird/Immunity Control:
Two-position switch adjusts the sensors immunity to birds and small animals
Master LED:
Displayed on the face of the unit indicating the alarm relay status
Analytic LED's:
Alarm and Environmental Caution LED's for both technologies displayed on the face of the sensor. An internal switch can disable both Master and Analytic LED's
Walk-Test Sounder:
Optional audible tester to assist in the walk-test and initial sensor setup. The XL-Sounder greatly simplifies the installation as it enables walk-testing and adjustment by a single installer
Swivel Mounting:
180° Horizontal Adjustment, 90° Vertical Adjustment
Tamper-proof:
Tamper switch with terminal connection
All Solid State Relay:
User selectable Form C relay output. A Solid State relay is flexible, silent and more reliable than an electromechanical relay
Metal Raintight Housing:
Rugged, weatherproof housing offers maximum protection against RFI and EMI interference
Weather Shroud:
Metal hood that routes rain from sensor's face and also provides maximum protection from ice, snow, wind and sun loading
Day/Night Camera:
Ikegami 1/3" True Day/Night ISD-A15TDN Camera is mounted within the sensor housing and provides a field of view that matches the sensors protection patterns
Heater:
24V, 1A heater is mounted near the camera aperture to eliminate condensation and moisture on the viewing window
Specification:
Input Voltage: 8.5V - 20V DC
Current Consumption: 150mA @ 12V DC (LED's off)
RF Power Density: 120 uW/cm2 max at the face of the unit
Operating Temperature: -30°F - 130°F (-34°C to 54°C)
Relay contact Rating: 0.1A, 50V
Maximum Camera Dimensions (L x W x H): 5.5" x 2.25" x 3.25"
Specification Sheet
Installation Instruction
