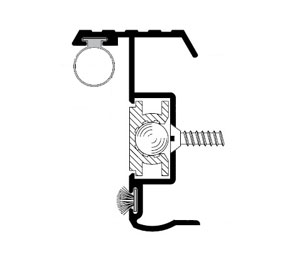

Pemko 3493BDGV80-S Bright Dip Gold Anodized 80" Inswing Slimline Locking Astragal with Slide Bolt - Vinyl Insert - Surface Mount

enlarge
enlarge
× This image is for a similar product but it will differ in size, color and/or other attributes.
Pemko 3493BDGV80-S Bright Dip Gold Anodized 80" Inswing Slimline Locking Astragal with Slide Bolt - Vinyl Insert - Surface Mount
More from Pemko
Price: $146.40 USD
Ships From

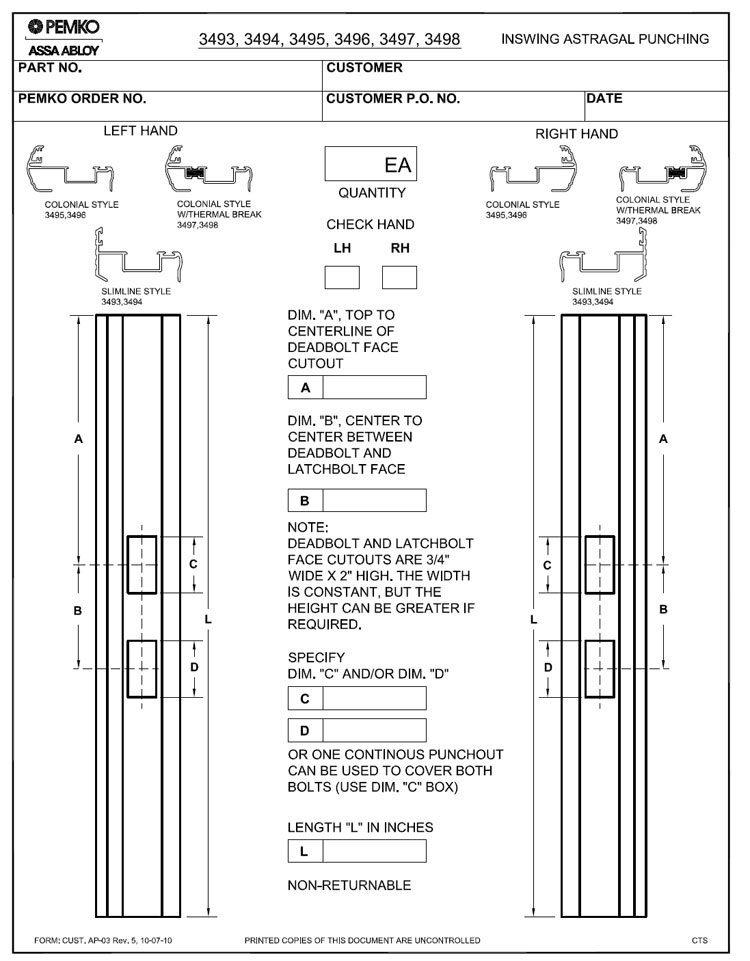

Specify dimension from top to centerline of deadbolt face cutout (A) (Optional)
Specify dimension from centerline of deadbolt cutout to centerline of latchbolt cutout (B) (Optional)
Insert deadbolt cutout height (C) (Optional)
Insert latchbolt cutout height (D) (Optional)
Specify dimension for other cutout (E) (Optional)
Comments (Optional)
For quantities beyond the "In Stock" above, the item(s) ships in 10 business days with $165.00 minimum purchase of Pemko products or 17 business days for smaller orders.

Pemko has a minimum order requirement. Orders smaller than the required minimum have a longer lead time as we need to consolidate onto a stock order. If you need a faster lead time, simply exceed the minimum order amount.

1-844-809-3667

Sales
Technical Support
Product Description:

pemko logo Pemko 3493BDGV80-S Bright Dip Gold Anodized 80" Inswing Slimline Locking Astragal with Slide Bolt - Vinyl Insert - Surface Mount

  • Inswing Slimline Style Locking Astragal with Slide Bolt
  • Length: 80"
  • Insert: Vinyl
  • Material: Aluminum
  • Finish: Bright Dip Gold Anodized
  • Comes with a molded sponge neoprene bottom seal and with a vinyl snap-in cover strip to conceal the cutout and cover the mounting screws
  • Features:
    • Economical smooth acting slide bolt
    • full 3/8" diameter steel bolt with 1-1/16" throw
    • four-way adjustable strike plate mounting for latchbolt and deadbolt
  • A standard deadbolt punchout is 3/4" x 4" at 40" on center
  • Punchout supplied on request only
  • Stock lengths are 80", 84", 96" and 120"
  • Custom sizes are available, contact us for further details

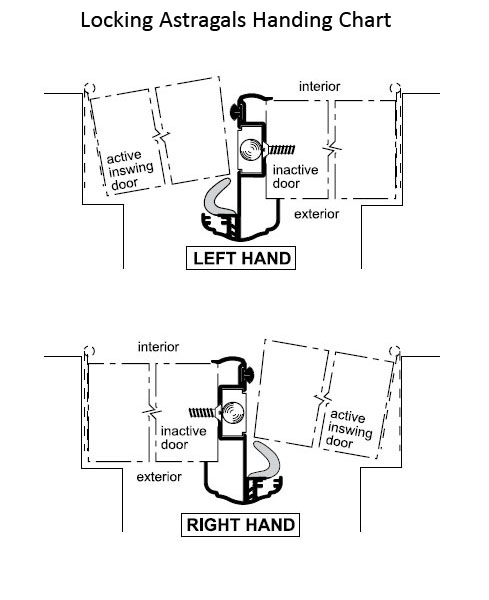

  • Specify handing.
  • Surface Mount
  • Surface applied seals should be mounted on a square door edge
  • Available with 18" long throw, add "L" to the end of partnumber
  • NON RETURNABLE

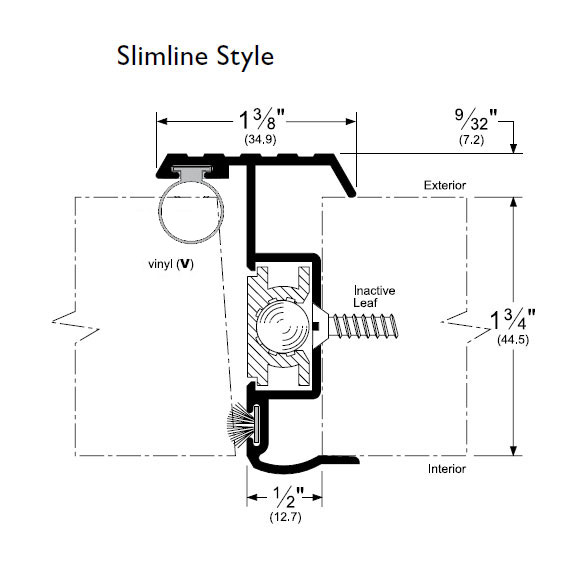

Dimensions
