Pemko 316AV 28

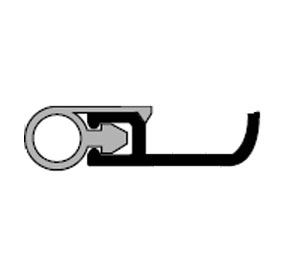

Pemko 316AV 28" Astragal/Perimeter Seal with Gray Vinyl insert - Mill Finish Aluminum

• Astragal/Perimeter Gasketing
• Insert: Vinyl
• Length: 28"
• Material: Mill Finish Aluminum
• For replacement insert use: EV47 (BL, GR, W)
• Rigid jamb weatherstrip is shown mounted on openings with a 1/16" gaps; however, each weatherstrip can seal gaps up to the depth of its seal

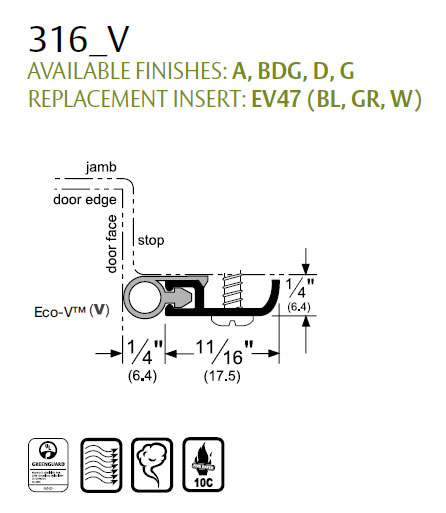

• Seal depth provided on each illustration
• Punched on 6" centers with slotted holes for adjustment
• Stainless steel fasteners are provided.
• When installing pairs of fire doors care must be taken to maintain the requirements of NFPA 80
• Category J gaskets for use with listed steel frames and/or classified steel covered composite, hollow metal doors rated up to and including 3 hours; wood and plastic covered composite doors rated up to and including 1-1/2 hours; and wood core doors rated for 20 minutes
• This meeting stile gasketing is supplied with a Eco-V ("V") insert - item number EV47 (available in gray, black, or white).
• Fire Rated
• Smoke Rated
• Air Seal Rated
• GreenGuard Certified
