Pemko 316APK 96

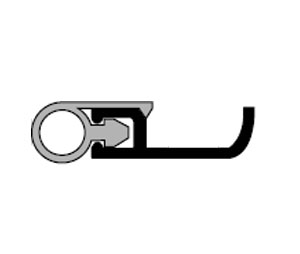

Pemko 316APK 96" Astragal/Perimeter Seal with Gray Pemko Prene insert - Mill Finish Aluminum

• Astragal/Perimeter Gasketing
• Insert: Pemko Prene
• Length: 96"
• Material: Mill Finish Aluminum
• For replacement insert use: PK (BL, GR, W)
• ANSI Aluminum: R3G164, R3G165

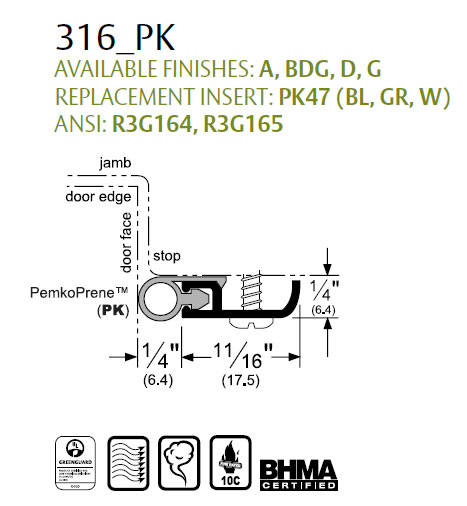

• Rigid jamb weatherstrip is shown mounted on openings with a 1/16" gaps; however, each weatherstrip can seal gaps up to the depth of its seal
• Seal depth provided on each illustration
• Punched on 6" centers with slotted holes for adjustment
• Stainless steel fasteners are provided.
• When installing pairs of fire doors care must be taken to maintain the requirements of NFPA 80.
• Category J gaskets for use with listed steel frames and/or classified steel covered composite, hollow metal doors rated up to and including 3 hours; wood and plastic covered composite doors rated up to and including 1-1/2 hours; and wood core doors rated for 20 minutes
•  This perimeter gasketing is supplied with a PemkoPrene ("PK") insert - item number PK47 (available in gray or black).
• Fire Rated
• Smoke Rated
• Air Seal Rated
• BHMA Certified
• GreenGuard Certified
