Pemko 290PWTRV 82

Pemko 290PWTRV 82" Heavy-Duty Perimeter Gasketing with Gray Vinyl insert - Pewter Finish on Aluminum

• Heavy-Duty Perimeter Gasketing
• Insert: Vinyl
• Length: 82"
• Material: Pewter Finish on Aluminum
• For replacement insert use: EV47 (BL, GR, W)
• Applied to jamb

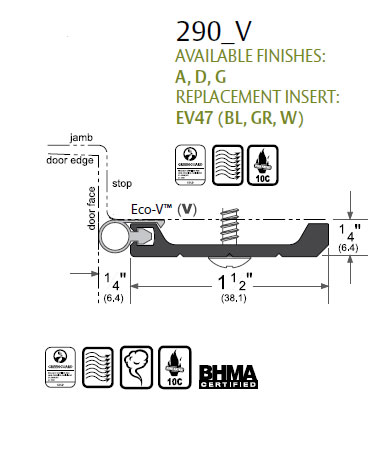

• Drawings are shown in the standard mounting application for the side section of the jamb
• For the head section of the frame where a parallel arm closer bracket or other hardware is required
• Supplied undrilled (36") or drilled (80" and above) and supplied with sheet metal screws for mounting
• If used as a stop, flat head machine screws can be provided upon request and take a countersunk #10 hole. PEMKO will drill the head member only if drilling instructions for countersink holes are provided
• All gasketing shown below is sold individually
• This perimeter gasketing is supplied with a Eco-V ("V") insert - item number EV47 (available in gray, black, or white)
• Fire Rated
• Air Seal Rated
• GreenGuard Certified
