Pemko 290APK 84

Pemko 290APK 84" Heavy-Duty Perimeter Gasketing with Gray Pemko Prene insert - Mill Finish Aluminum

• Heavy-Duty Perimeter Gasketing
• Insert: Pemko Prene
• Length: 84"
• Material: Mill Finish Aluminum
• For replacement insert use: PK47 (BL, GR)
• ANSI Aluminum: R3G164, R3G165
• Applied to jamb

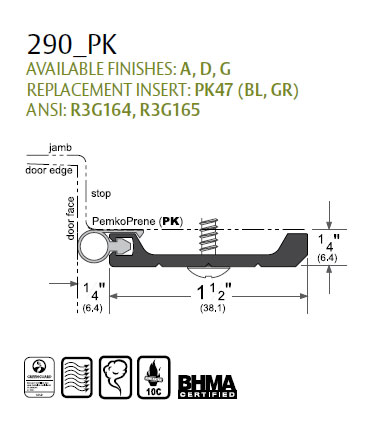

• Drawings are shown in the standard mounting application for the side section of the jamb
• For the head section of the frame where a parallel arm closer bracket or other hardware is required
• Supplied undrilled (36") or drilled (80" and above) and supplied with sheet metal screws for mounting
• If used as a stop, flat head machine screws can be provided upon request and take a countersunk #10 hole. PEMKO will drill the head member only if drilling instructions for countersink holes are provided
• All gasketing shown below is sold individually
• This perimeter gasketing is supplied wtih a PemkoPrene ("PK") insert - item number PK47 (available in gray or black)
• Fire Rated
• Smoke Rated
• Air Seal Rated
• BHMA Certified
• GreenGuard Certified
