Pemko 256x226AT 84" Latching Panic Exit Saddle with ThermoSeal Insert 8" W x 7/8" H Mill Finish Aluminum

enlarge
enlarge
× This image is for a similar product but it will differ in size, color and/or other attributes.
Pemko 256x226AT 84" Latching Panic Exit Saddle with ThermoSeal Insert 8" W x 7/8" H Mill Finish Aluminum
More from Pemko
Price: $307.09 USD
Ships From
Comments (Optional)
For quantities beyond the "In Stock" above, the item(s) ships in 10 business days.

1-844-809-3667

Sales
Technical Support
Product Description:

pemko logo Pemko 256x226AT 84" Latching Panic Exit Saddle with ThermoSeal Insert 8" W x 7/8" H Mill Finish Aluminum

  • Latching Panic Exit Saddle
  • Insert: ThermoSeal
  • Width: 8"
  • Length: 84"
  • Overall height: 7/8"
  • Material: Mill Finish Aluminum
  • For replacement insert use: T5 (BL)
  • ANSI Aluminum: J35100, J36100
  • Allow 5/8" door clearance
  • Used in conjunction with surface applied vertical rod exit device, or as a stop and a seal at the bottom of door
  • For offset applications, use an elevator
  • Supplied predrilled, with #10-24 Phillips, flat head machine screws of appropriate length
  • Fire Rated
  • Air Seal Rated
  • Sound Seal Rated
  • BHMA Certified
  • GreenGuard Certified

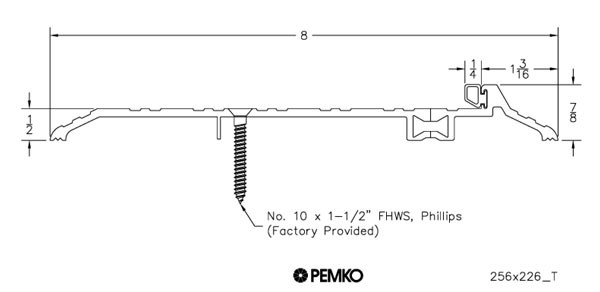

Dimensions
