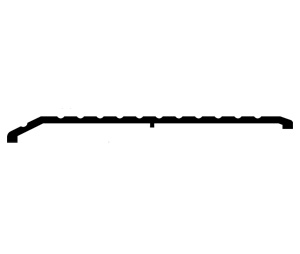

Pemko 158D 36" Dark Bronze Anodized Aluminum Offset Threshold

enlarge
enlarge
× This image is for a similar product but it will differ in size, color and/or other attributes.
Pemko 158D 36" Dark Bronze Anodized Aluminum Offset Threshold
Main ImageVideo Review Pemko 158D Dark Bronze Anodized Aluminum Offset Threshold
More from Pemko
Price: $94.36 USD
Ships From
Comments (Optional)
In Stock (No Minimums):
Naples, FL Warehouse Qty: 4
For quantities beyond the "In Stock" above, the item(s) ships in 10 business days.

Pemko has a minimum order requirement. Orders smaller than the required minimum have a longer lead time as we need to consolidate onto a stock order. If you need a faster lead time, simply exceed the minimum order amount.

1-844-809-3667

Sales
Technical Support
Product Description:

pemko logo Pemko 158D 36" Dark Bronze Anodized Aluminum Offset Threshold

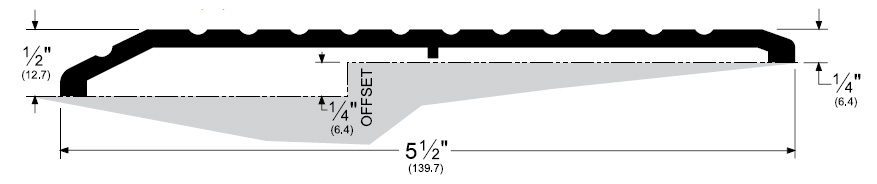

  • Offset Threshold
  • Length: 36"
  • Width: 5 1/2"
  • Height: 1/2"
  • Offset: 1/4"
  • Material: Aluminum
  • Finish: Dark Bronze Anodized
  • Supplied predrilled, with #10-24 Phillips, flat head machine screws of appropriate length
  • Symmetrical shapes designed to span a given area, usually under a door
  • To use a saddle threshold in an offset condition, use an elevator (Product # 183 or 183ALT)
  • Fire Rated
  • Handicap Access Rated
  • BHMA Certified

Dimensions
Questions and Answers
Q: One quick follow up question, I am thinking about also getting a Pemko 158d offset threshold which I think will improve the transition concrete step to wood floor at the door. Do you think this is a good idea? And if I did this, would you still recommend the automatic door bottom to go along with the threshold? The gap would be closer to 3/16" with the threshold. Thanks again!
A: Provided that the offset between your two flooring surfaces is a quarter of an inch, I would very much recommend that you consider using this 158D threshold in your installation.

I also still feel that an automatic door bottom is a very good choice especially when using the threshold that you are considering given the overall width of the threshold which is 5 and a half inch.

Keep in mind that the elegant nature of the automatic door bottom is hinged on the fact that as soon as the door opens the automatic door bottom immediately begins to snap back up into its housing getting it off of the top of the thresholds and therefore nothing dragging across the top of the threshold where as a standard door sweep is simply going to make contact constant contact with not only the threshold but potentially the floor as well.

I stick with the automatic door bottom than I do so and almost all instances.
