Pelco PEL-EH35152MT
Pelco PEL-EH35152MT
Pelco PEL-EH35152MT 15" Outdoor Enclosure
×
This image is for a similar product but it will differ in size, color and/or other attributes.
×
This product review video is for a similar product but it will differ in size, color and/or other attributes.
Price:
$
305.32 USD
In Stock Ready for Shipment
Comments
(Optional)
ADD TO CART
This item is not in stock and typically ships in 1 business day.
Check Inventory
Request Quote
No Minimum
There is no minimum quantity required for this product for quantities up to the level listed below.
Minimum Order Levels Apply
This item has minimum order levels that need to be met.
Check Inventory Levels
Enter your email address and we will check with all available sources and get back to you with exact inventory levels and estimated shipping times.
Qty. Needed:
Request Quote
Enter the qty needed and we will generate a quote and save your order in our system.
You will not be charged and we will not fulfill the order.
Qty. Needed:
+ Add to My Wish List
1-844-809-3667
Sales
sales@absupply.net
Technical Support
tech@absupply.net
Product Description:

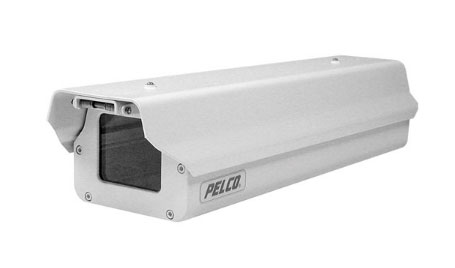

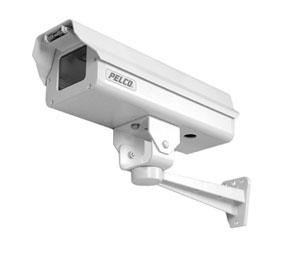

Pelco PEL-EH35152MT 15" Outdoor Enclosure
Manufacturer: Pelco
Model: EH35152MT
Product Type: 15" Outdoor Enclosure
Description:
The Pelco EH35152MT Camera Enclosure, which comes with a small, compact design, is ideally meant for small-to-medium cameras with fixed focal length lenses or motorized zoom lenses (with or without auto iris operation). Constructed with die cast and extruded aluminum which is light-weighted, the enclosure is protected against corrosion.

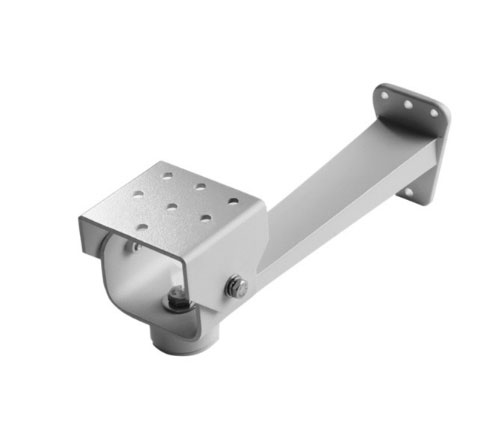

The camera enclosure, designed for both indoor and outdoor purpose, can be mounted on PT270/PT280 Series (indoor) or PT570/PT680 Series (outdoor) pan/tilt mounts. There are two glands on the bottom of the enclosure, which make video & power cable installation easy as they securely seal the cables. The enclosure provides easy access to the camera sled through its front opening hinged covering. The camera sled can be inverted using the holes for providing extra elevation to the camera. For securing the enclosure, there is a link-lock latch with a padlock fixing option.
Features:
Compatible with fixed/motorized lens cameras
Small, contemporary design
Die-cast and extruded aluminum construction
Easy access for servicing and installation
Designed for indoor/outdoor applications
Forward opening hinged lid
Cable entry glands and mounting holes on bottom of enclosure
Rear link-lock latch
Specification:
Maximum Camera/Lens Size (WxHxD): 2.9" x 3" x 12" (7.3 cm x 7.6 cm x 30.5 cm)
Clear or Tinted: Clear
Construction:
Material: Extruded and Die-cast Aluminum with Gray Polyester Powder Coat
Window: 0.187" (4.76 mm) Thick, Lexan
Cable Entry: Two PG13.5 Compression Glands on Bottom; 0.47" (1.19 cm) Maximum Cable Diameter
Cable Entry Holes: 0.875" (2.22 cm) Diameter; will Accept 0.5" (1.27 cm) Conduit Fitting when Compression Gland is Removed
Latch: Link-lock No. 3, Stainless Steel; can Besecured with Padlock (Not Supplied)

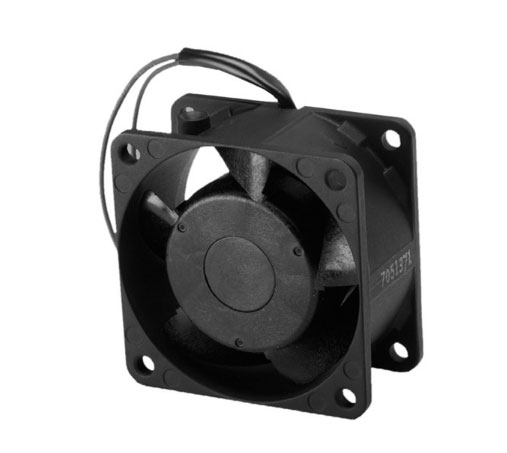

Heater/Blower: Heater/Defroster/Blower (24VAC)
Operating Temperature: -10°F ~ 120°F (-23°C ~ +49°C)
Power Requirements: 24VAC
Power Consumption: 25W
Dimensions (WxHxD): 5.1" x 3.9" x 15.8" (13.1 cm x 9.9 cm x 40 cm)
Weight: 4.5 lbs (2kg)
