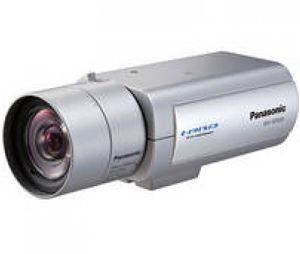

Model: POCSP509LMP24
Features:
- High-resolution at full HD / 1920 x 1080 created by 3.1 MP high sensitivity MOS sensor
- Simultaneous 1080p full HD images at up to 30 fps and 360p images at up to 30 fps
- Combining enhanced UniPhier, Panasonic's proprietary system LSI platform and 2 areas
- VIQS (Variable Image Quality on Specified area) function can reduce network bandwidth usage
- Cropping function enables to provide whole image (1920 x 1080) and the part image (640 x 360) simultaneously S sensor
- Up to 4 image capture areas can be specified, and it is also possible to control the sequence
- Multiple H.264 (High Profile) and JPEG streams ensure simultaneous real-time monitoring and high-resolution recording by enhanced UniPhier
- Super Dynamic and ABS (Adaptive Black Stretch) technologies deliver 128x wide dynamic range
- Face Super Dynamic Range technology ensures clear face image
- High sensitivity with day & night (IR) function; 0.5 lux (color), 0.06 lux (B/W) at F1.4
- Using Panasonic distinctive LDC (Lens Distortion Compensation) function, natural image without distortion can be monitored thanks to wide angle lens
- ABF (Auto Back Focus) ensures easy installation and stable focus in both color and B/W modes
- Digital Noise Reduction: 3D-DNR ensures noise reduction in various conditions
Specification:
- Camera Signal: Network IP
- Resolution: 2.1 Megapixel
- Lens Type: Varifocal
- Lens Size: 2.4mm - 6mm
- Mount Type: Bracket Required
- Compression Method: H.264, JPEG
- Voltage: 12V DC
- Electronic Shutter:
- Fix Shutter: 1/30, 3/100, 3/120, 2/100, 2/120, 1/100, 1/120, 1/250, 1/500, 1/1,000, 1/2,000, 1/4,000, 1/10,000 (only at Super Dynamic off)
- Image Device: 1/3-type MOS Sensor
- Image Pixels Total: 1920 x 1080
- Minimum Scene Illumination:
- Color: 0.5 lux, B/W: 0.06 lux (F1.4, auto slow shutter: Off (1/30 sec), Gain: On (high))
- Color: 0.03 lux, B/W: 0.004 lux (F1.4, auto slow shutter: Maximum 16/30 sec, Gain: On (high))
- Zoom Ratio: 1x, 2x, 4x controlled by browser GUI
- Automatic White Balance: AWC (2,000 to 10,000 K), ATW1 (2,700 to 6,000 K), ATW2 (2,000 to 6,000 K)
- Power Consumption: 570 mA
- Operating Temperature: 14°F to 122°F (-10°C to 50°C)
- Dimensions: 2.95" x 2.56" x 5.22" (75mm x 65mm x 132.5 mm)
|
